Delivery Date:
08/07/2019
Department Name:
Roswell Fire Department
Department City / State:
Roswell, GA
Truck Type:

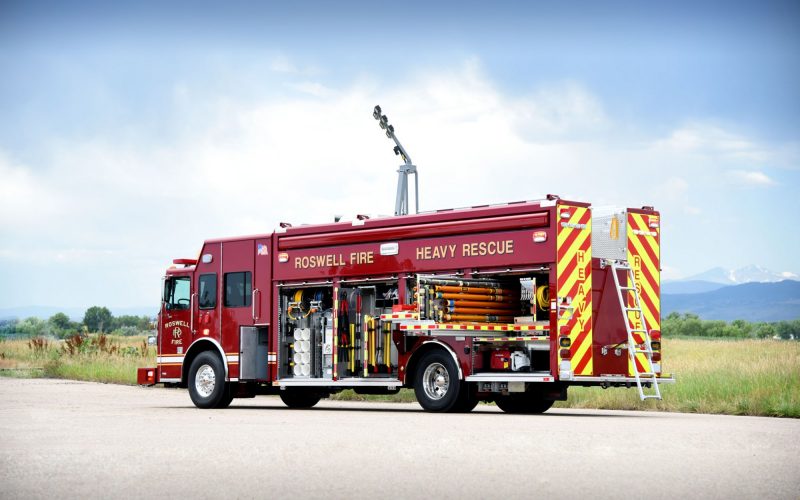

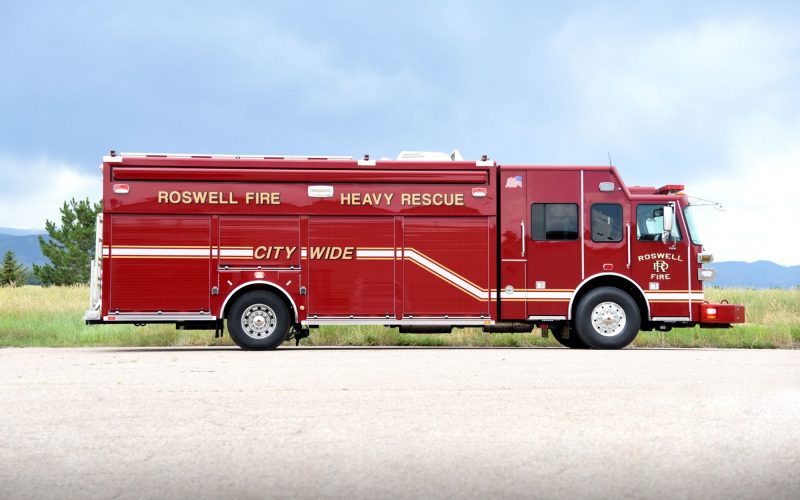

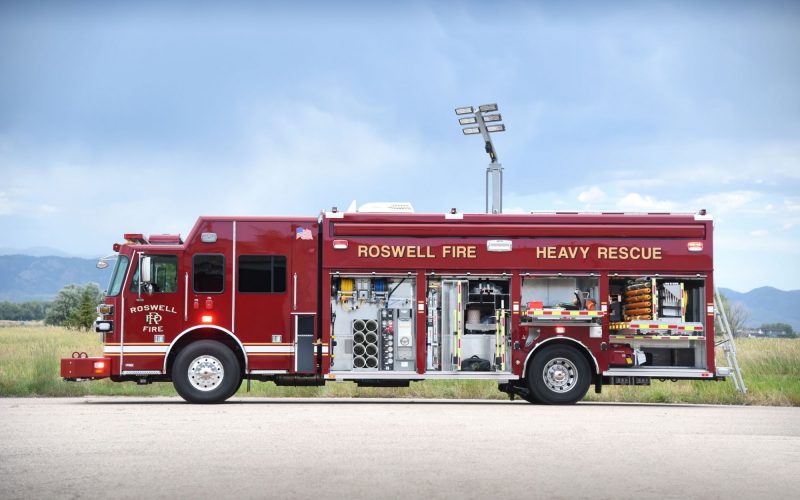

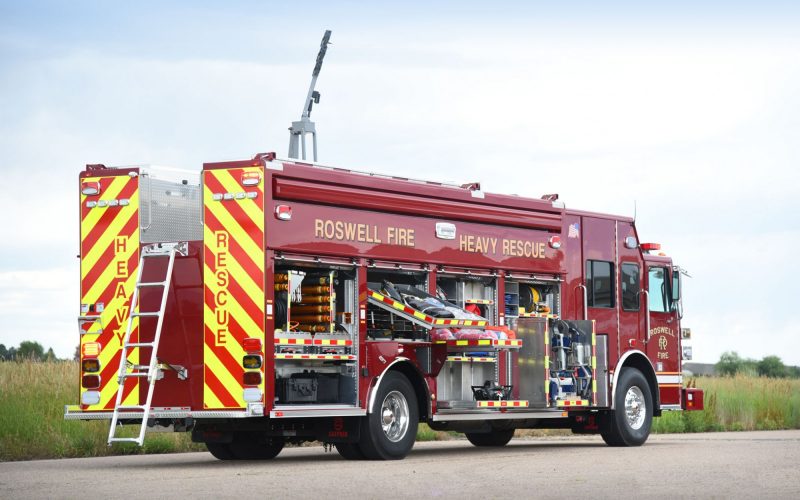

Sutphen Corporation – HS #6269

Dealer – Williams Fire Apparatus

WHEEL BASE: 237”

TRAVEL HEIGHT: 11’ – 7”

TRAVEL LENGTH: 37’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 20” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISX 12, 425 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

BODY:                  Sutphen

  • Aluminum

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper Extension
  • Voyager 2, Split Screen, Camera System
  • Federal Q2B Siren, Flush Grille Mount
  • 15,000-Watt Onan Protec PTO Generator System
  • Carefree Mirage Lateral Arm Acrylic Patio Awning
  • Command Light Knight 2, KL Series Light Tower
  • OnScene LED Compartment Lighting
  • Whelen LED Warning and Scene Lighting
  • OnScene Solutions Aluminum Heavy-Duty Cargo Slides
  • Resolve Space Saver Fill Station
  • Hannay High-Pressure Air Hose Reel
  • Custom-Mounted Paratech Struts and Kits
  • Cab/Body Walk-Through Connection
  • Whelen PCH2, Brow Light 12V
  • Whelen Freedom IV 72” 81” LED Light Bar
  • Whelen M9 LED Scene Lights
