Delivery Date:
08/29/2019
Department Name:
Boardman Fire Department
Department City / State:
Youngstown, OH

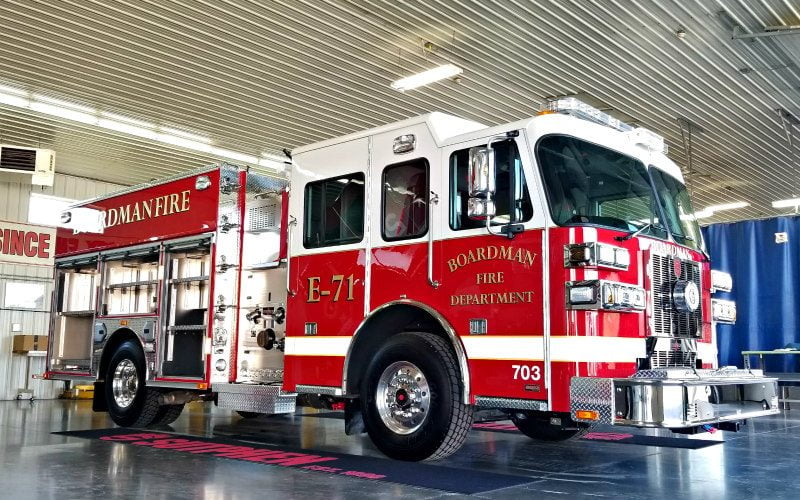

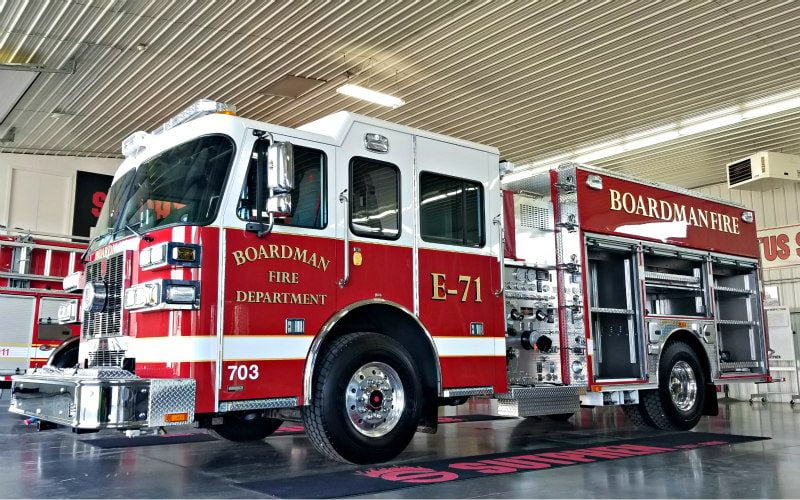

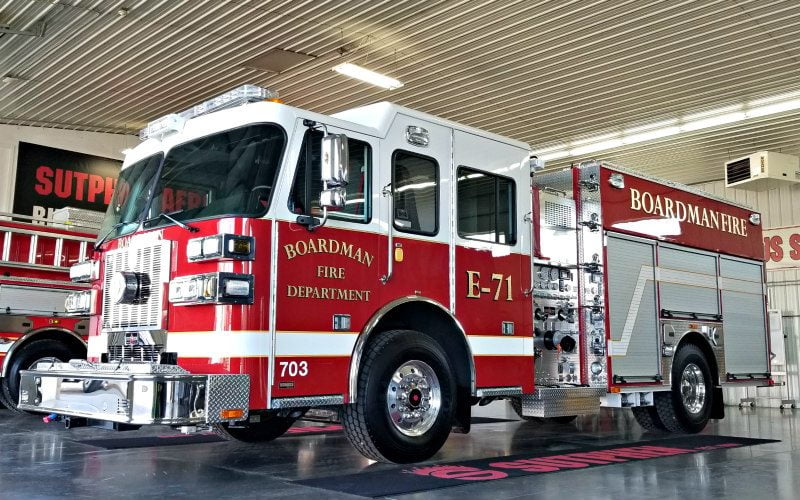

Sutphen Corporation – HS #6367

WHEEL BASE: 185”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 31’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

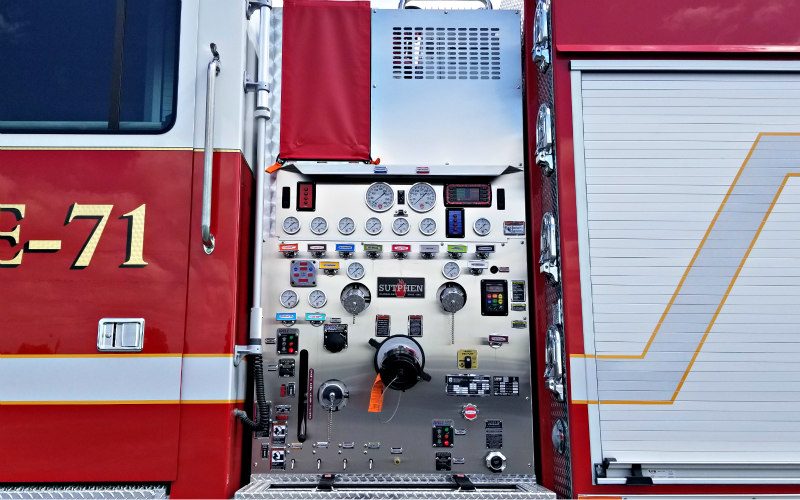

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 1 ½” & (1) 2 ½” w/ Swivels
  • 500-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale SmartFoam 2.1

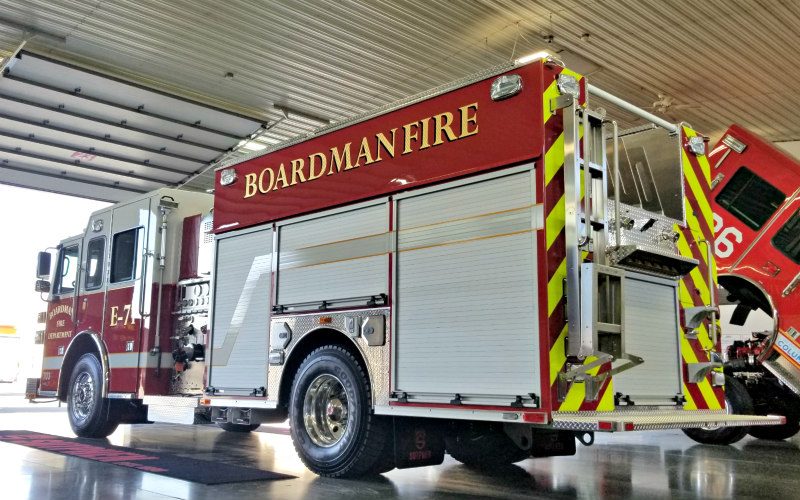

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors

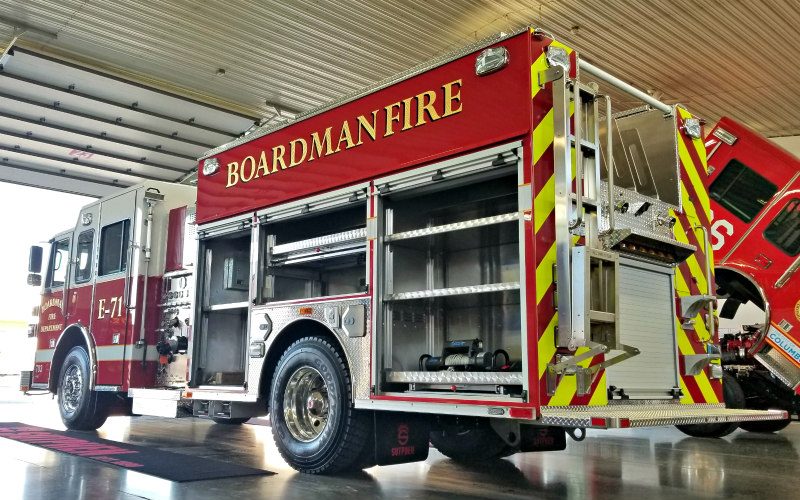

  • Over 349 cu. ft. Total Compartment Space
  • Alco-Lite Ladders (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Rear Vision Camera
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150 (1)
  • 8KW Smart Power Generator
  • Whelen PFP2 LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen M9V2 LED Lights
  • Whelen Traffic Advisor, TAL65 36”
  • FRC Focus 750W Telescopic Lights
