Delivery Date:
08/15/2019
Department Name:
Kennebunk Fire Department
Department City / State:
Kennebunk, ME

Sutphen Corporation – HS #6286

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’ – 9”

TRAVEL LENGTH: 31’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS3000

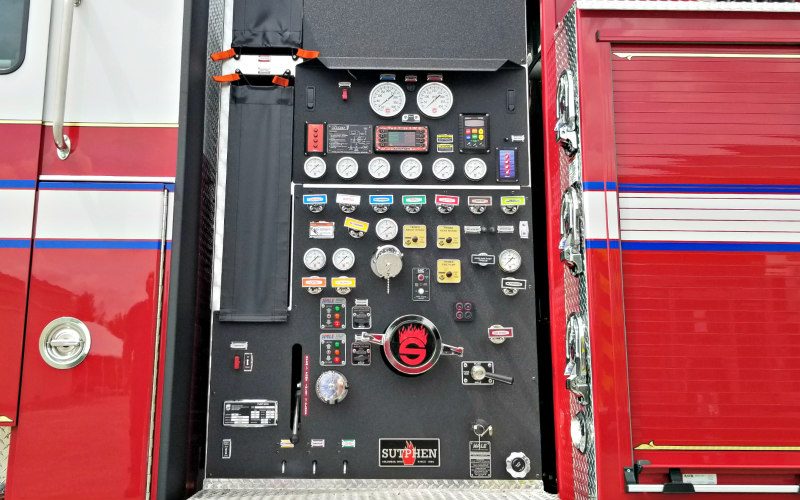

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2” Right/Front Hosebed, (1) 3” Deck Gun
  • 1000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Hale Foamlogix 2.1

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
    • 200 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24, 24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper
  • FRC, Inview Trueview Camera System
  • Federal Q2B Siren, Grille Mount
  • Booster Reel w/ 200’ of ¾”
  • Whelen PFH2 LED Brow Light
  • Whelen Freedom (8) LED Lightbar
  • Whelen 900 LED Scene LTS
  • Roto Ray LED
