Delivery Date:
05/27/2020
Department Name:
City of Painesville
Department City / State:
Painesville, OH

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslay: (2) 2” w/ 1 ½” Swivel, (1) 2 ½” w/ 2 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 66 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & REL-35 35’ 2-Section & (2) PRL-16 16’ Roof & 14’ Combo & 10’ Folding)
  • Body: SPH-3, Left 56” H/Right 56” H

ADDITIONAL EQUIPMENT:

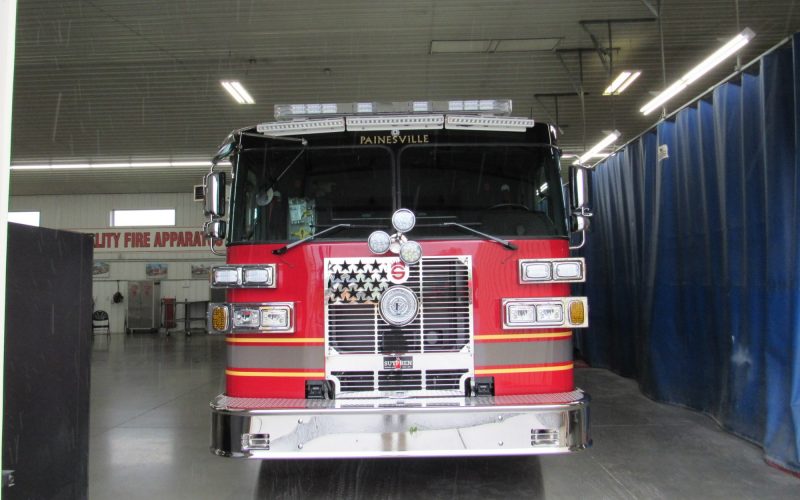

  • 12” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Brigade Backeye 360 Camera System
  • Smart Power 10KW Hydraulic Generator
  • 7 Bottle Compartments
  • Firetech 72” 12V LED Brow Light
  • Firetech MB 12V LED Scene Lights
  • Whelen Freedom IV Lightbar
  • Firetech 120V LED Telelights
  • Firetech Guardian 12V LED Scene Light
