Delivery Date:
06/10/2020
Department Name:
Pedernales Fire Department
Department City / State:
Spicewood, TX

WHEEL BASE: 225”

TRAVEL HEIGHT: 10’ – 6”

TRAVEL LENGTH: 35’ – 5”

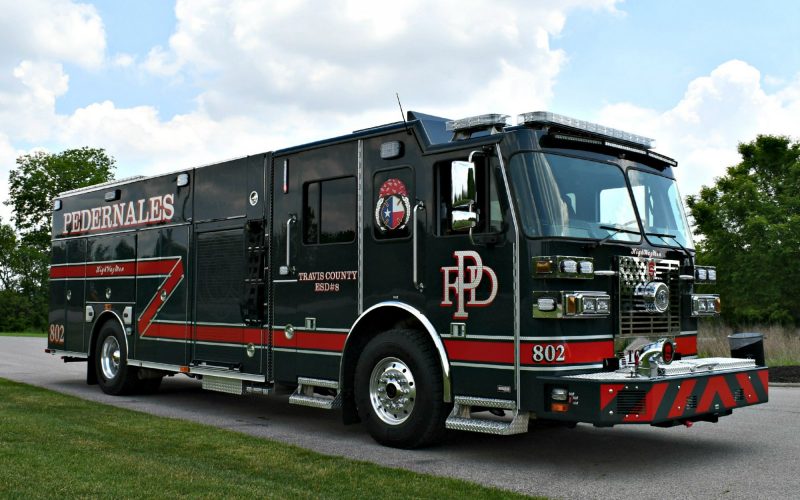

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” raised roof

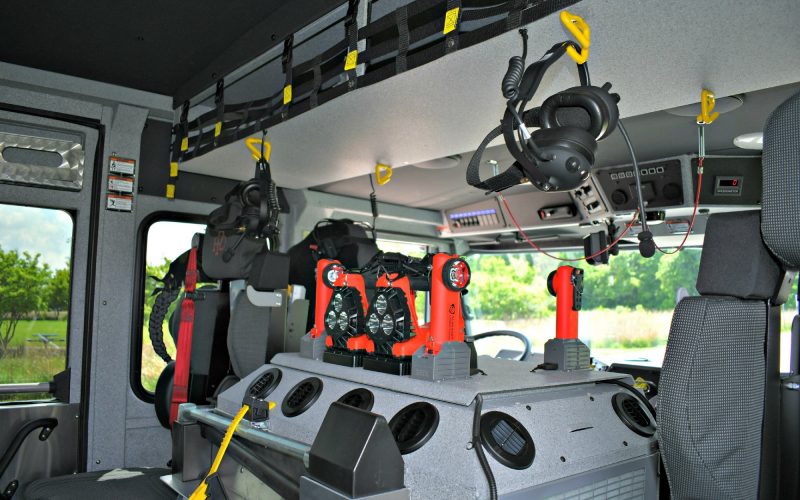

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Niehoff, 415 AMP
  • Transmission: Allison Gen 5, EVS3000

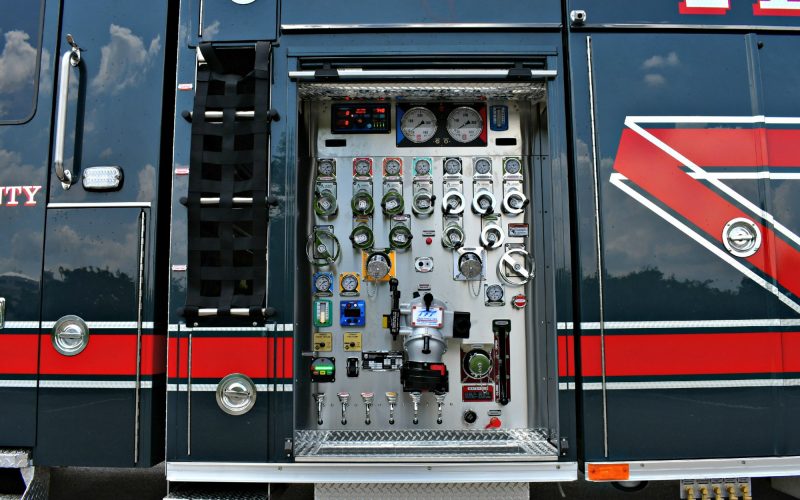

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Valve 3” Pipe to Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” Speedlay w/ Lift Out Tray and (1) 2 ½” Speedlay w/ Lift Out Tray
  • Monitor, Akron 3433 Apollo High Rise
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

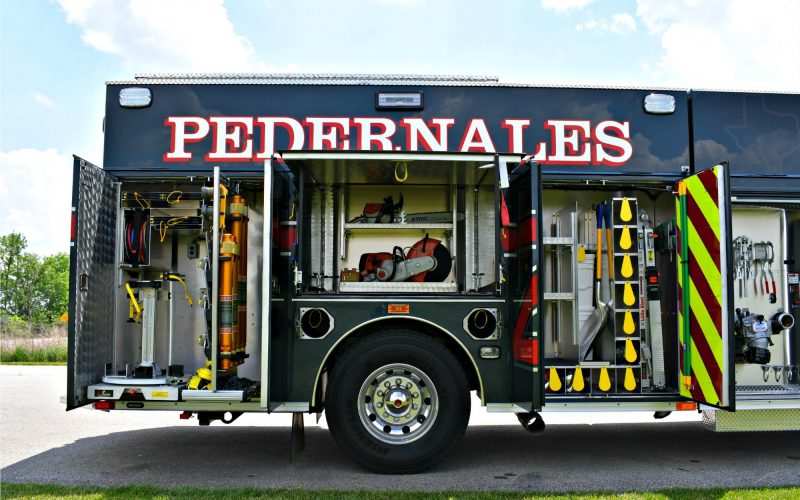

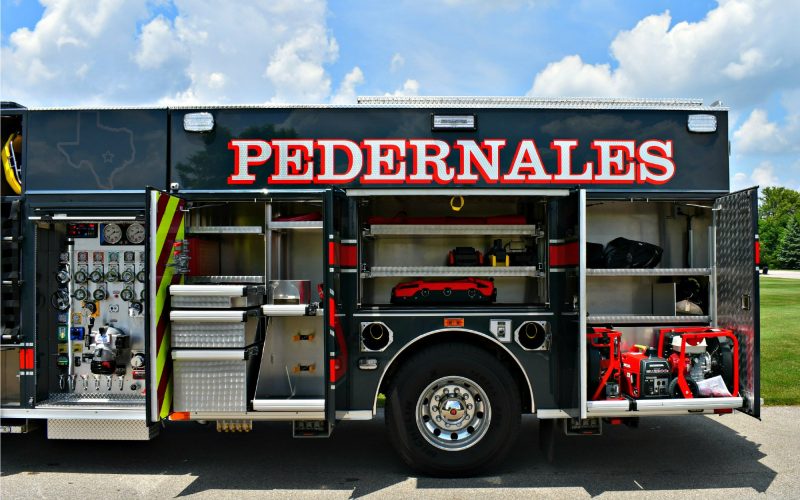

  • Hinged Compartment Doors
  • 92 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: PA-16 Res 56/53 Ladder Under the Hosebed and Double Hatch

ADDITIONAL EQUIPMENT:

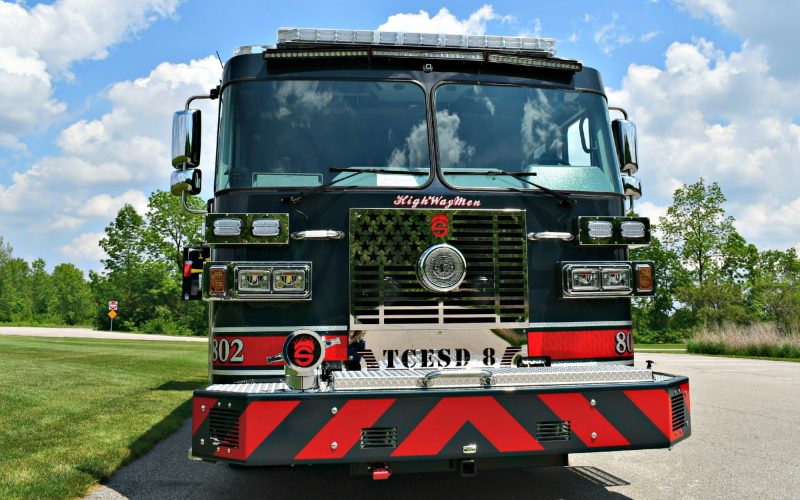

  • 24” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Backeye 360 Camera System
  • Honda EU2200 1800 Watt Generator
  • Hannay SBEF30-23-24 Booster Reel
  • RV AC Unit w/ Deflector
  • Rear Winch Receiver
  • Task Force Tips Extend-A-Gun
  • Whelen Freedom (16) LED Lightbar
  • Whelen M9 LED Scene Light
  • FireTech Brow Light
