Delivery Date:
02/15/2019
Department Name:
Xenia Township Fire Department
Department City / State:
Xenia, OH

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 31’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 380 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” Crosslay & (2) 2” Speedlays with 1 ½” Swivel and Poly Lift-Out Tray
  • 1,000 -Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Smartfoam 2.1

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Doors
  • 314 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)

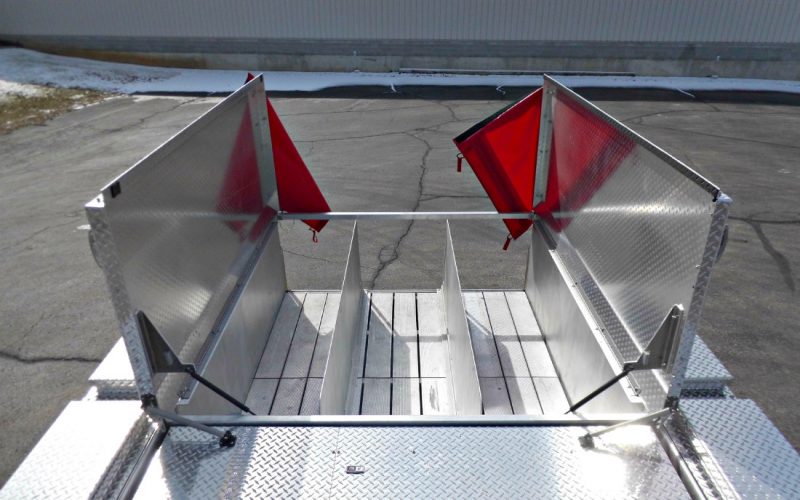

  • Ladder Chute

OPTIONAL EQUIPMENT:

  • FRC, Inview Trueview, Camera System
  • 18” Bumper Extension
  • FRC Spectra Brow Light
  • Whelen Freedom LED Lightbar
  • Federal Q2B Siren
  • FRC Spectra 260 15K Lumen LED Scene Lights
  • Raised Roof Storage
  • Whelen Electric Siren, 295HFSA7
