Delivery Date:
02/15/2019
Department Name:
Zhengzhou Fire Brigade
Department City / State:
Zhengzhou, China

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 30’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Export Engine ISL8.9 400 HP Euro V
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

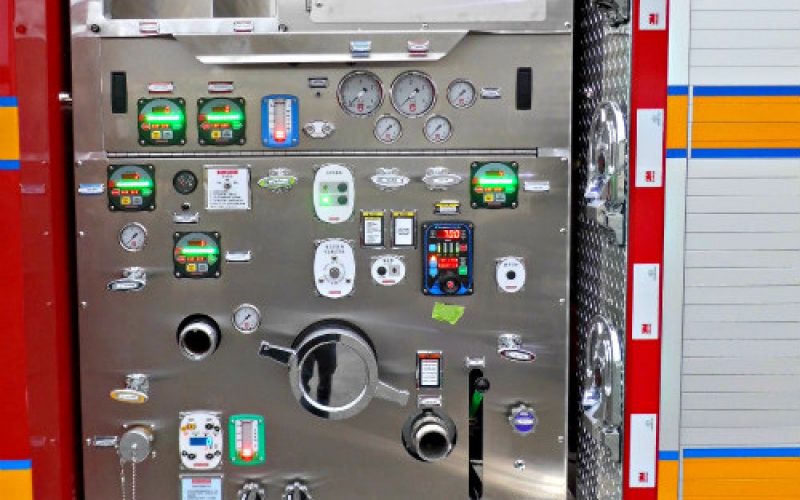

PUMP:                 Waterous

  • CMU-1500 GPM Two Stage
  • Discharges: (1) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • Monitor: Akron 3578 Stream Master Electric w/ Akron 5177 Nozzle
  • 1,000 -Gallon Water Tank
  • 50-Gallon Foam Tank
  • Waterous Aquis 3.0 Foam System

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Doors
  • 222 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)
  • Ladder Chute with Backboard Storage

OPTIONAL EQUIPMENT:

  • LED ICC/Marker Lights
  • 12” Bumper Extension
  • Whelen Freedom LED Lightbar
  • 100 Watt Siren Speaker
  • 20 Ton Jack
  • Raised Roof Storage
  • Whelen Electric Siren, 295HFSA7
