Delivery Date:
02/15/2019
Department Name:
Kerrville Fire Department
Department City / State:
Kerrville, TX

WHEEL BASE: 203”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’ – 10”

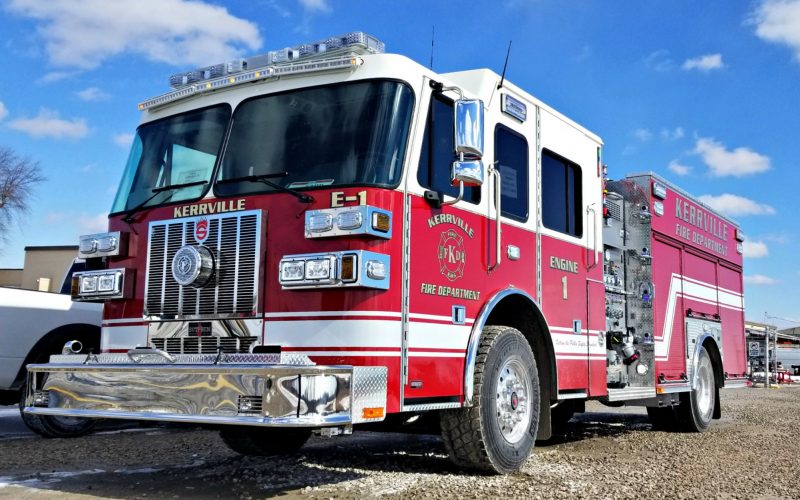

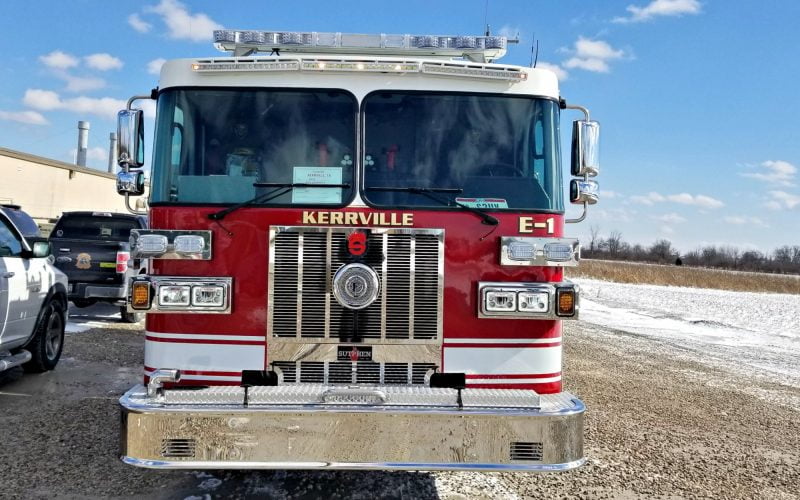

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

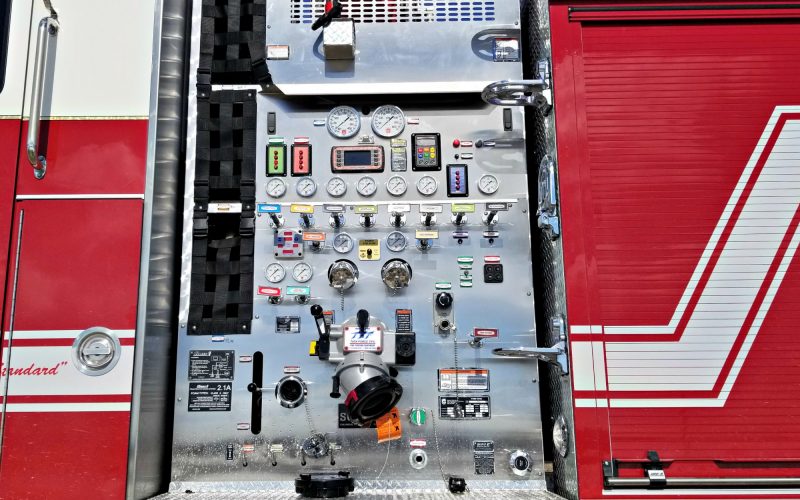

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” and (2) 2” Speedlays with 1 ½” Swivel & Poly Lift-Out Tray
  • Monitor: TFT XFC-42 Crossfire w/ Safety Flow, Quad Stack Tips and Stream Shaper
  • 750 -Gallon Water Tank
  • (1) 20-Gallon Foam Tank
  • (1) 30-Gallon Foam Tank
  • Hale Foamlogix 2.1
  • Foam Refill System, Hale EZ Fill 5GPM Single

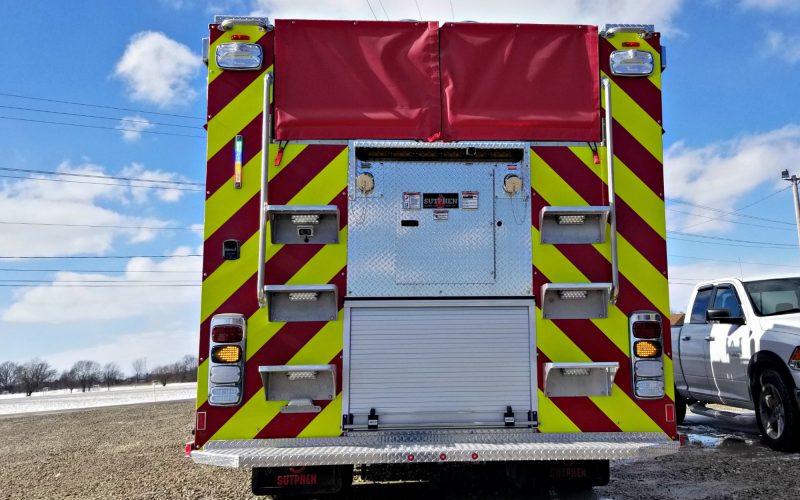

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Doors
  • 314 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)
  • Ladder Chute

OPTIONAL EQUIPMENT:

  • HiViz 3-Piece Brow Light
  • FRC Spectra 12V LED Scene Lights
  • Whelen Freedom LED Lightbar
  • Safety Vision SV-CLCD0-70, Camera System
  • Hannay Electric Cord Reel, 150’ (1)
  • Federal Q2B Siren
