Delivery Date:
09/11/2019
Department Name:
Willoughby Fire Department
Department City / State:
Willoughby, OH

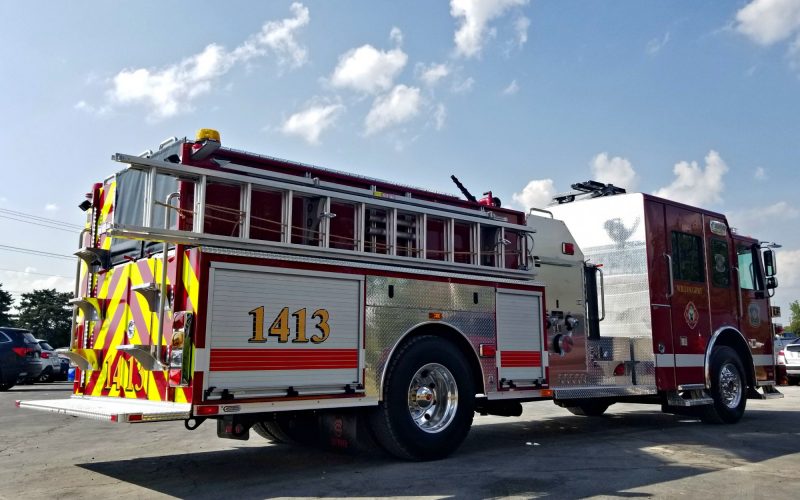

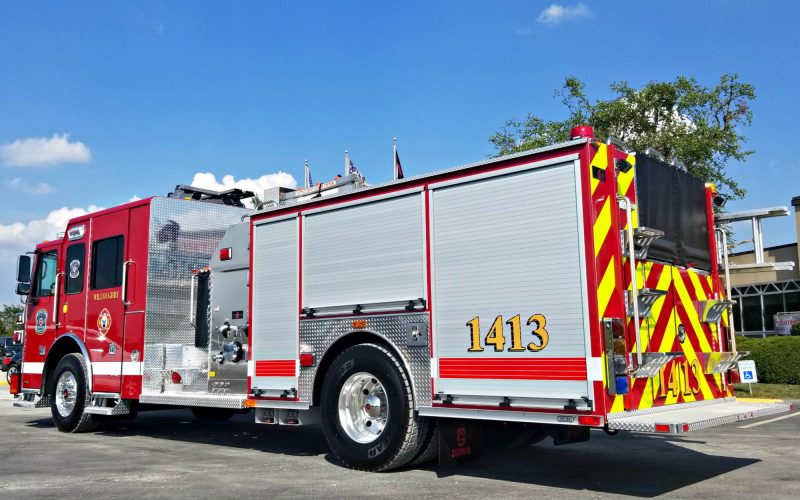

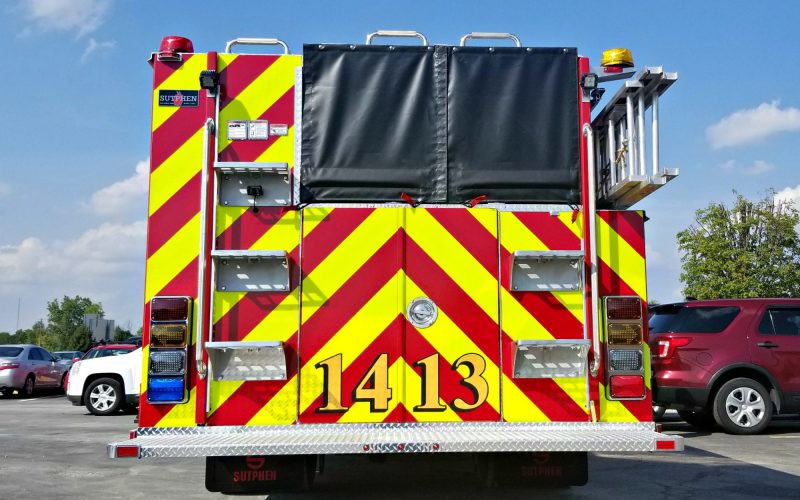

Sutphen Corporation – HS #6368

WHEEL BASE: 214”

TRAVEL HEIGHT: 10’ – 7”

TRAVEL LENGTH: 33’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

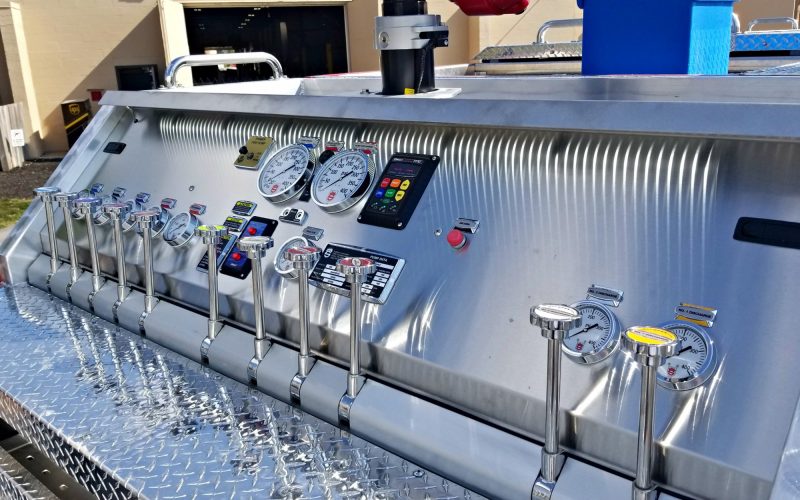

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • 500-Gallon Water Tank
  • Speedlays: (2) 2” with 1 ½” Swivel

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 228 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (24’ 2-Section & 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel Bumper Extension
  • Pike Pole Storage
  • Back-Up Camera
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom IV 72” Lightbar with Opticom
  • Whelen PFH2 Split Flood
  • Command Light KL415D-W2 12V Light Tower
  • Roto-Ray LED Light
