Delivery Date:
05/19/2019
Department Name:
West Palm Beach Fire Rescue
Department City / State:
West Palm Beach, FL

WHEEL BASE: 217”

TRAVEL HEIGHT: 10′ – 4”

TRAVEL LENGTH: 34’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

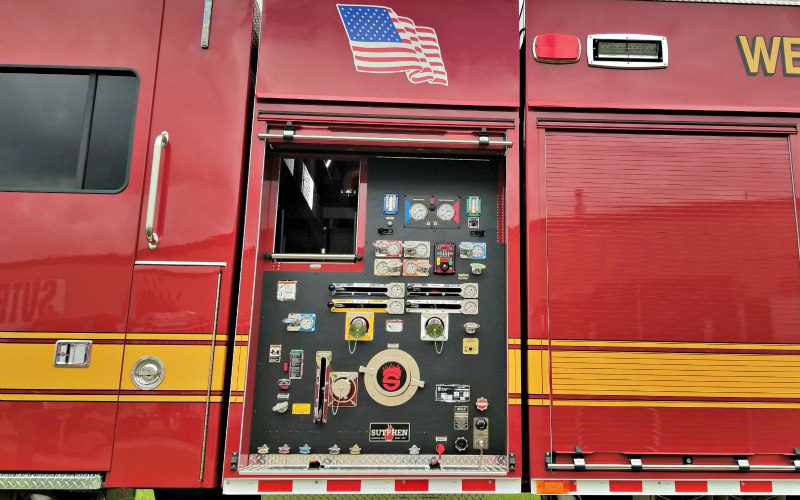

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (2) 2” Front/left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (1) 2 ½” w/ Poly Tray
  • 750-Gallon Water Tank
  • 40-Gallon Foam Tank
  • Elkhart Foam Supply System

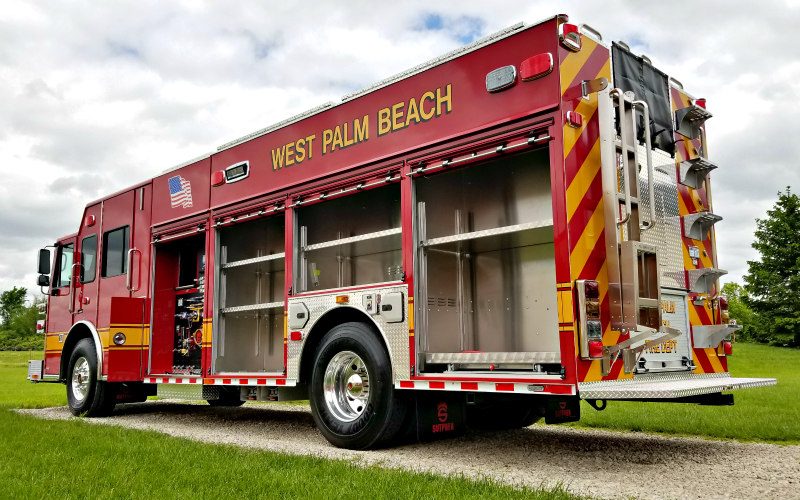

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 521 cu. ft. Total Compartment Space
  • Duo-Safety (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Honda EU2200I Portable Generator
  • Whelen Freedom IV (14) LED Light Bar
  • Whelen PFP2 12V LED Brow
  • Whelen PFH2 12V LED Scene
  • Federal Q2B Siren
  • GO Light 2021
  • Rear Vision Camera
  • David Clark Intercom System
