Delivery Date:
05/11/2019
Department Name:
Rockdale County Fire Department
Department City / State:
Rockdale County, GA

Sutphen Corporation – HS #6335-36

Dealer – Williams Fire Apparatus

WHEEL BASE: 184”

TRAVEL HEIGHT: 9’ – 6”

TRAVEL LENGTH: 31’ – 6”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

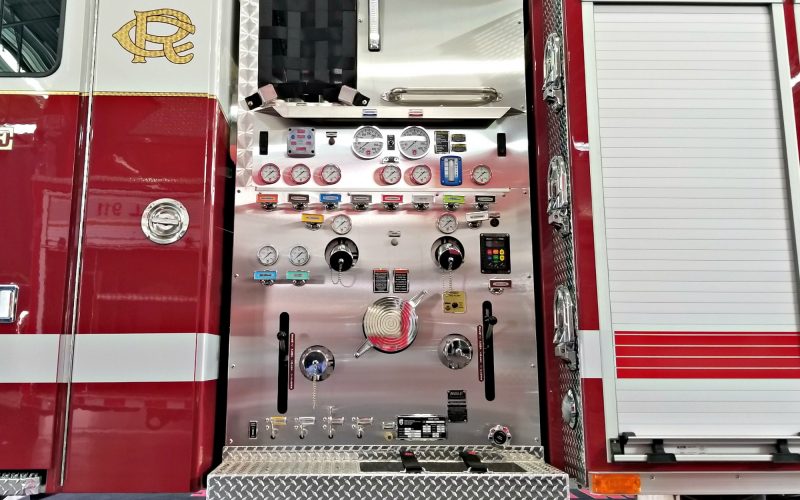

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & 2” Crosslays w/ 1 ½” Swivel
  • 550-Gallon Water Tank
  • Monitor: TFT XFC-52 Crossfire w/ Safety Flow, Stream Straightener, Stacked Tips and Nozzle

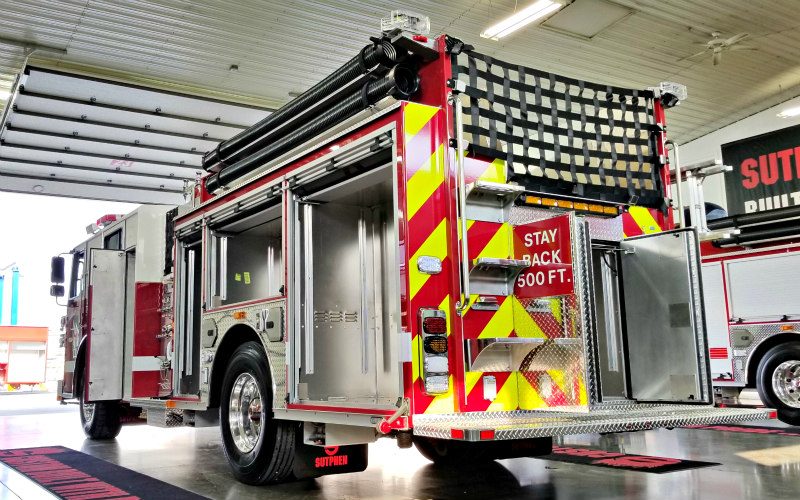

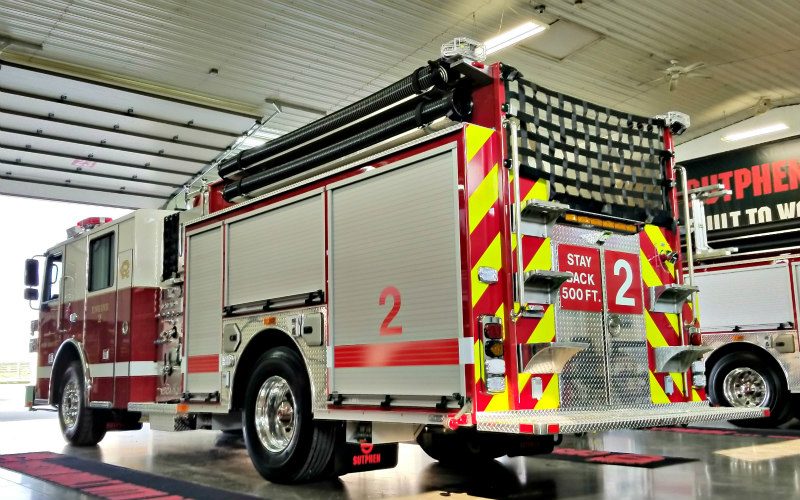

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Door Left Side; Aluminum Painted Hinge Doors Officer Side
  • Over 182” cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • Voyager 3, Camera System
  • Federal Q2B Siren, Grille Mounted
  • 18” Polished Stainless Steel Bumper Extension
  • 8KW Smart Power Generator
  • Whelen Freedom IV 14 Modules 72” LED Lightbar
  • Whelen Freedom LED Mini Lightbar
  • Whelen Pioneer Scene Light
  • Whelen McFled Red LEDs
  • Whelen Traffic Advisor
