Delivery Date:
06/26/2020
Department Name:
Wayne Township Fire Department
Department City / State:
Trenton, OH

WHEELBASE: 215”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 380 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Smart Foam 2.1A Foam System

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 246 cu. ft. Base Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section & 14’ Roof & 10’ Folding)
  • Enclosed ladder chute
  • Body: G9 – Alum 40/51

ADDITIONAL EQUIPMENT:

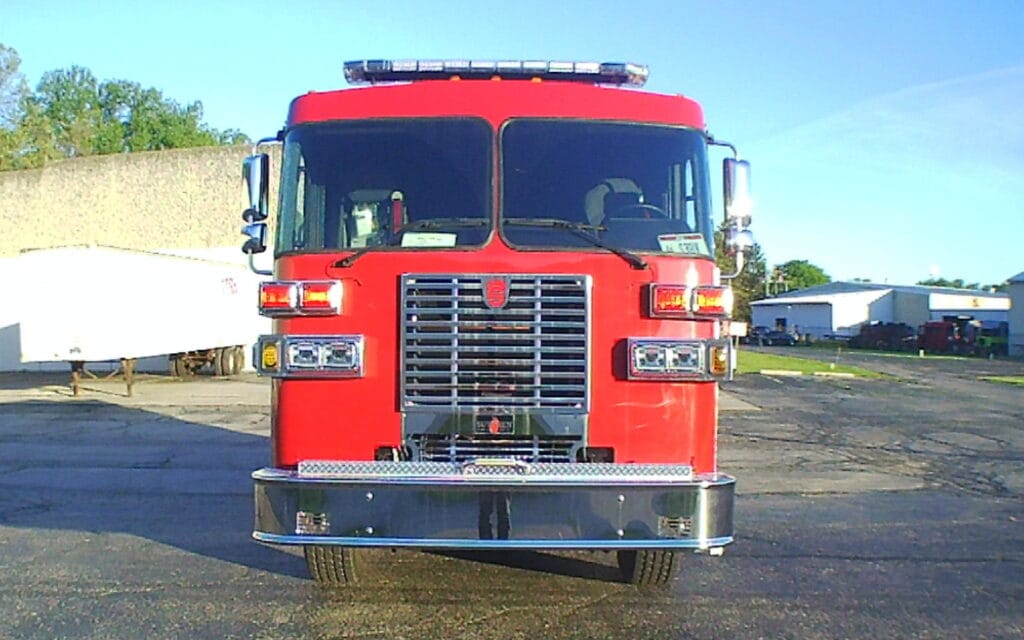

  • 18” Polished Stainless Steel Bumper
  • 4 Bottle Compartments
  • Code 3 Pursuit 71” LED Lightbar
  • FRC Spectra 20K Scene Lights
  • FRC Spectra Telescopic Lights
  • Code 3 65BZ LED Red Lights
