Delivery Date:
06/18/2020
Department Name:

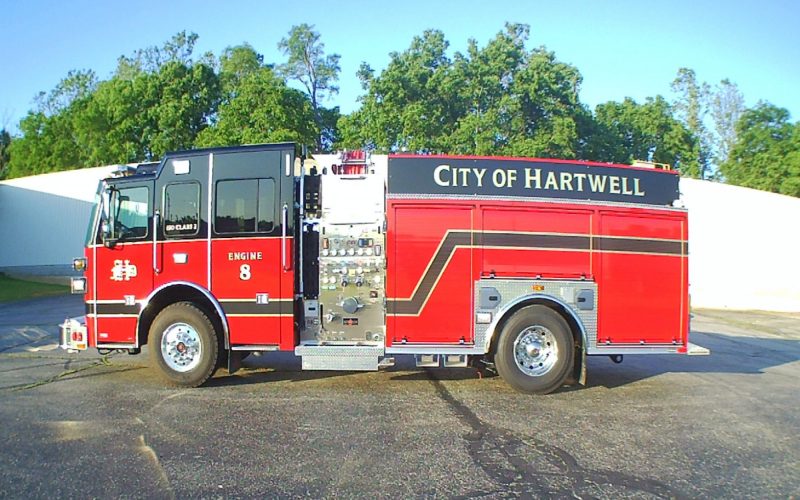

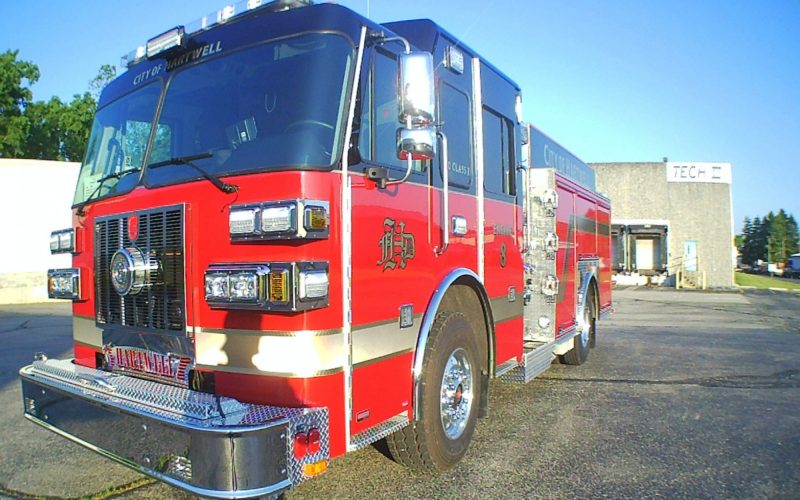

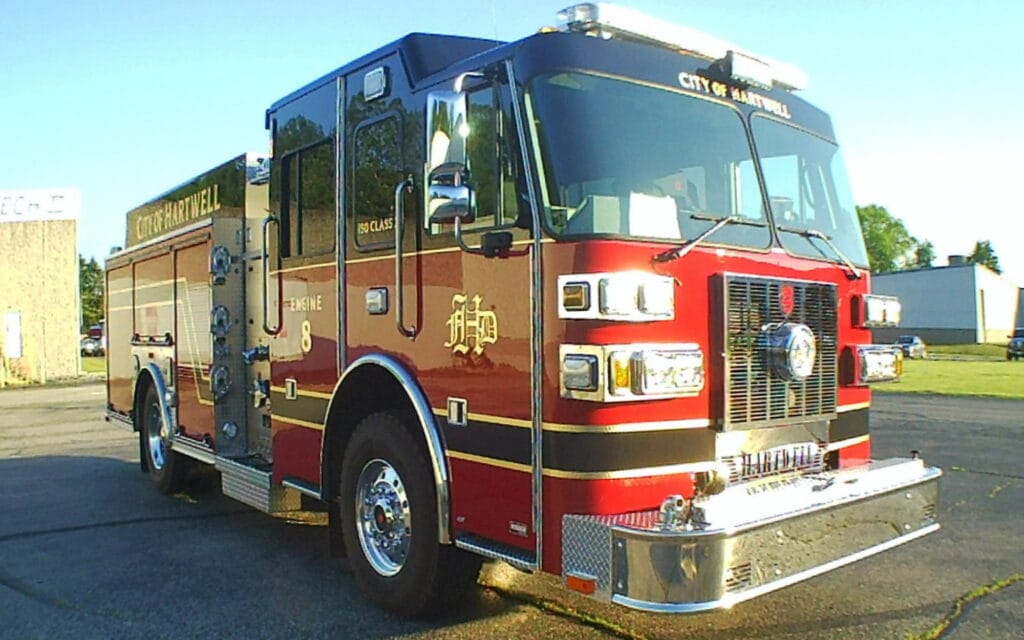

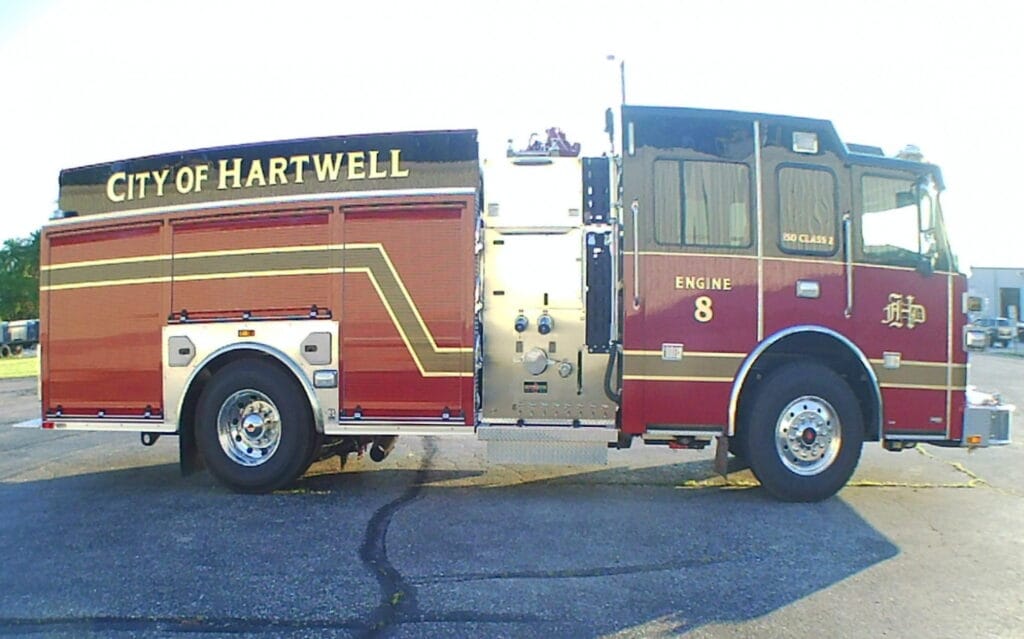

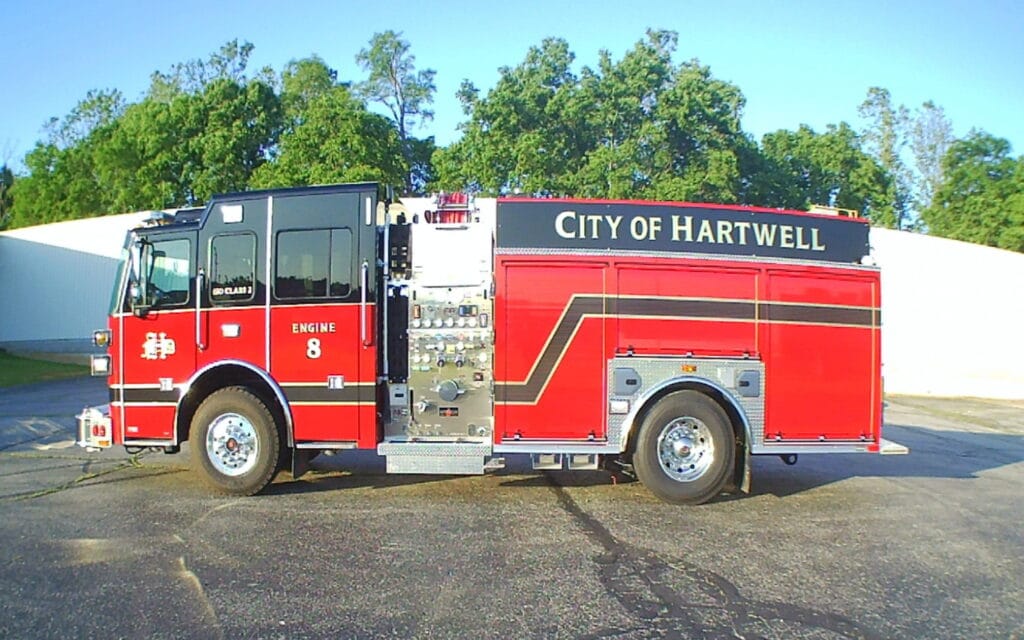

City of Hartwell
Department City / State:
Hartwell, GA

WHEELBASE: 185”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 31’ – 5”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ Swivel & Poly Lift-out Tray
  • Crosslay: (1) 2 ½”
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Akron 3096 Foam System

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 222 cu. ft. Base Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section & 14’ Roof & 10’ Folding)
  • Enclosed ladder chute
  • Body: G2 – Alum 40/51

ADDITIONAL EQUIPMENT:

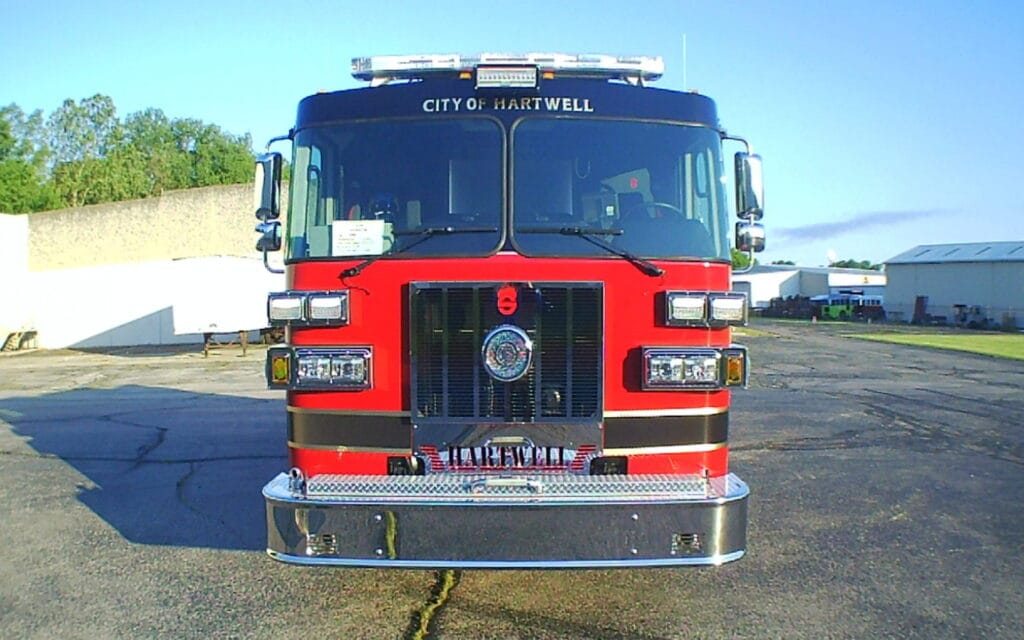

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • 4 Bottle Compartments
  • Safety Vision Camera System
  • FRC Spectra Brow Light
  • Whelen Freedom IV 72” LED Lightbar
  • FRC 900 LED Scene Lights
  • Whelen 600 LED Red Lights
  • Whelen 600 Warning Lights
  • FRC Telelights
  • Whelen L31 LED Red Beacons
