Delivery Date:
11/18/2020
Department Name:
Union Grove Fire Department
Department City / State:
Union Grove, NC

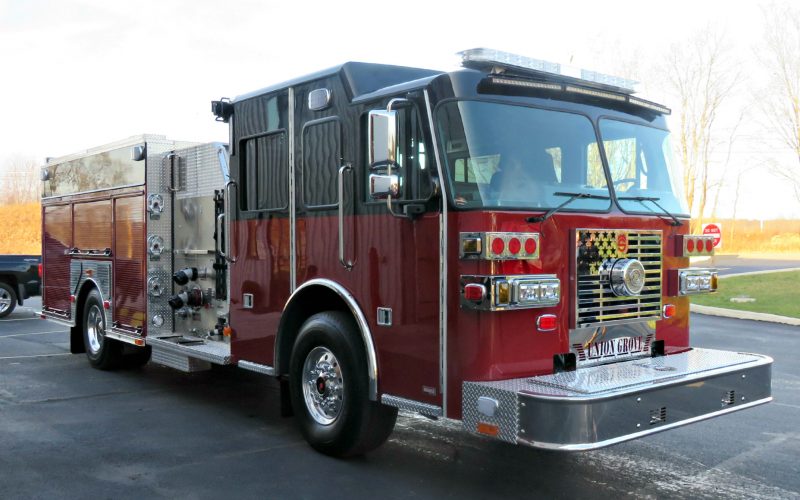

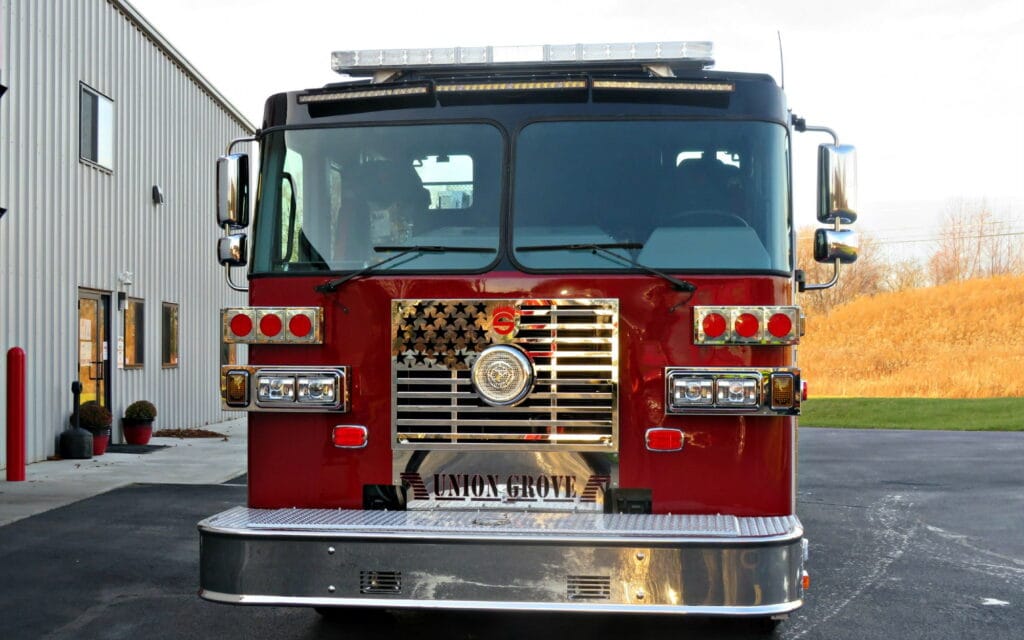

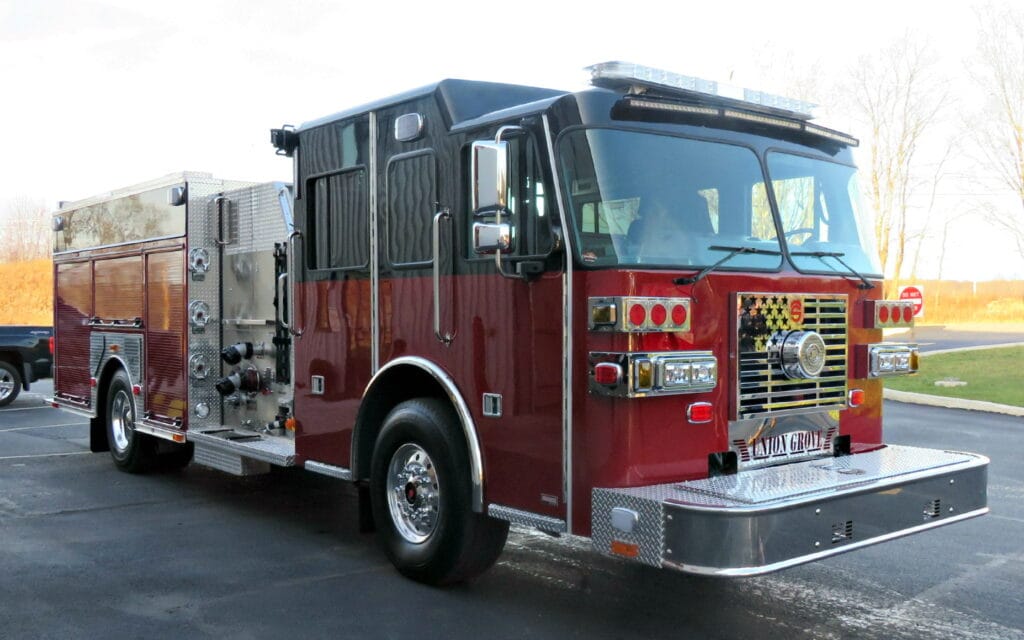

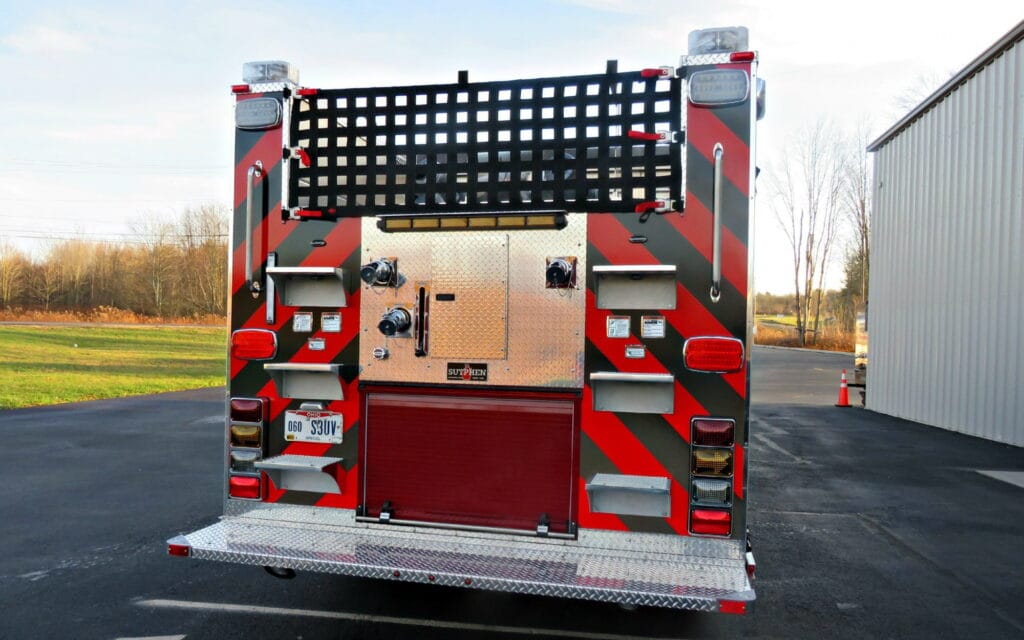

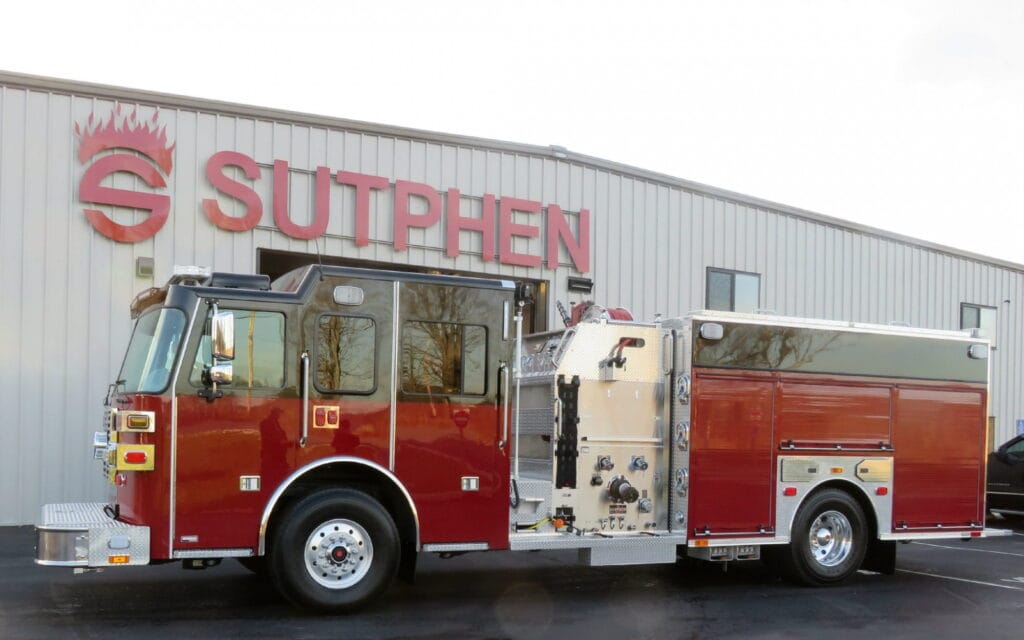

Sutphen Corporation – HS #6595

Dealer – Stevens Fire Equipment

WHEELBASE: 213”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 34’ – 5”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1,500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 1 ½”
  • Monitor: (1) Akron 3433 Apollo High Rise
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 250 Cu. Ft. Compartment Space
  • Duo-Safety Ladder Package (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)
  • Body: PA-19 Res 43/53 Ladder Chute through Water Tank

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Generator: Smart Power 10KW TM Hydraullic
  • Hannay Electric Cord Reel, 150’ (2)
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen M9 12V Scene
  • Whelen PFH2 12V Tele
  • Whelen 36” LED Traffic Advisor
  • FireTech 3-Piece 72” LED Brow
