Delivery Date:
04/13/2019
Department Name:
The City of Columbus Division of Fire
Department City / State:
Columbus, OH

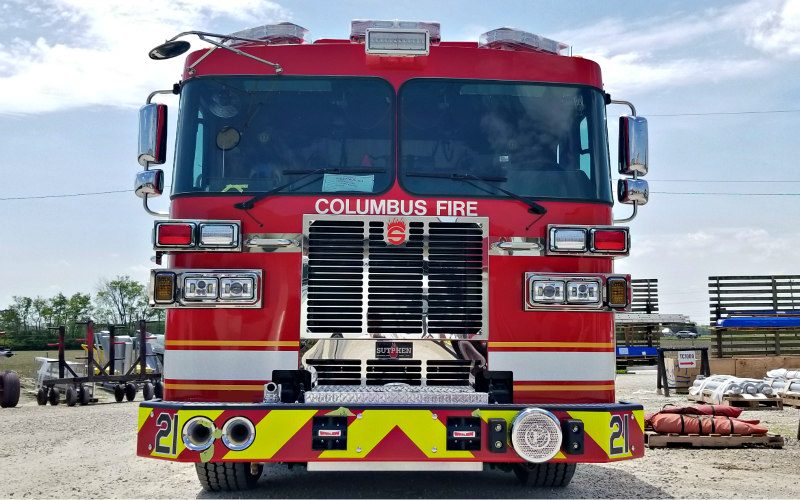

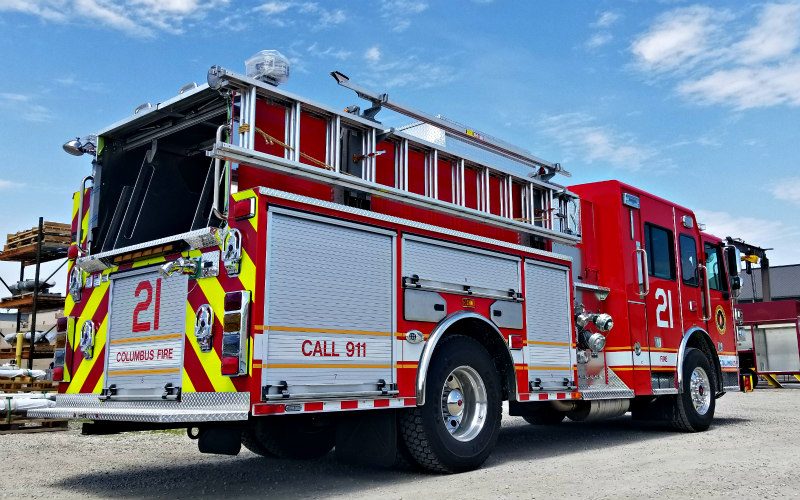

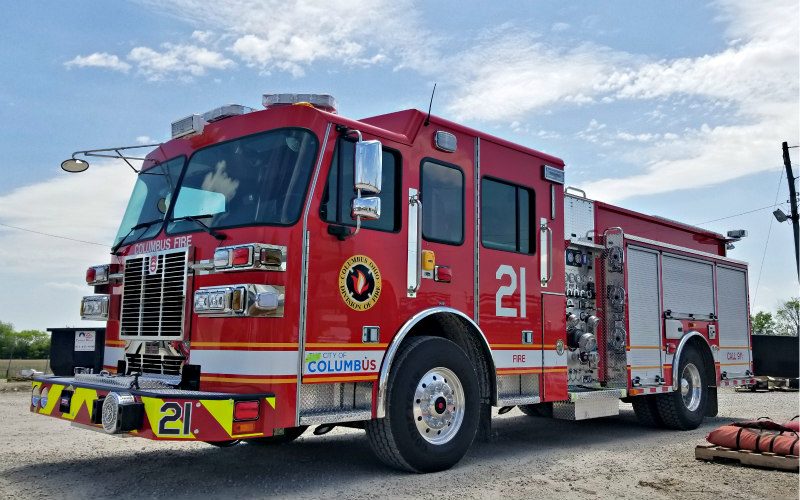

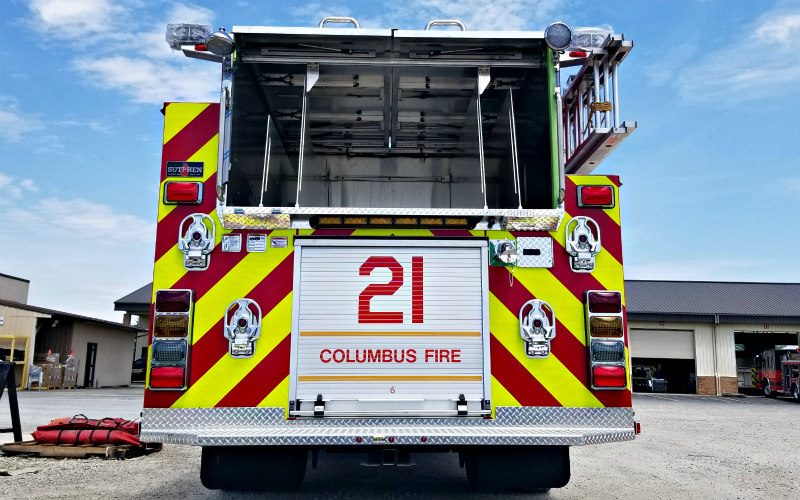

Sutphen Corporation – HS #6291

Dealer – Heritage Fire Equipment

WHEEL BASE: 187”

TRAVEL HEIGHT: 9’ – 8 “

TRAVEL LENGTH: 31’ – 6”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins ISX 12, 425 HP
  • Alternator: Niehoff, 430 AMP
  • Transmission: Allison Gen 5, EVS4000

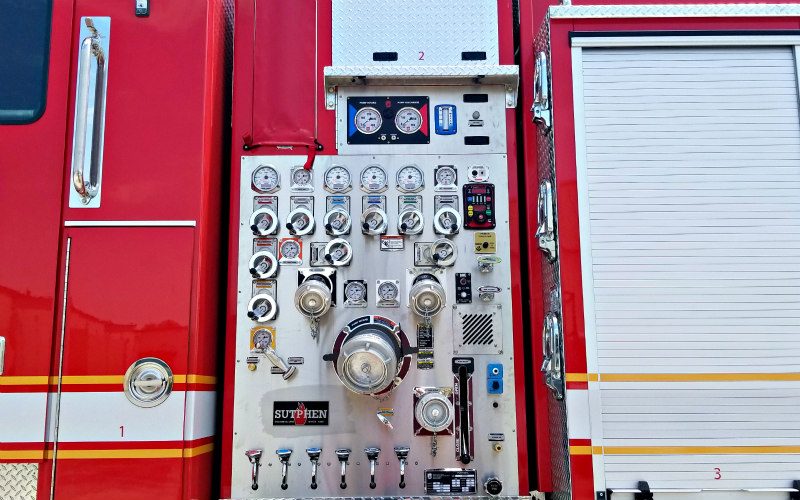

PUMP:                 Waterous

  • CSU-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2” Front/Left of Main Hosebed, (1) 3” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” with 2 ½” Swivel
  • 750-Gallon Water Tank
  • Monitor: Elkhart Vulcan 8500 Deck Gun

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Doors
  • Over 186” cu. ft. Total Compartment Space
  • Duo-Safety 900A (24’ 2-Section & 775A 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • Voyager, 2 Camera System
  • Federal Q2B Siren, Mounted on Driver’s Side Bumper Face
  • 18” Bumper Extension
  • Whelen TIR6, LED TAM65 36” Traffic Advisor
  • Whelen Freedom 24” LED Lightbars
  • FRC Spectra 12V LED Brow 20LK Lum
  • FRC Spectra 12V LED Scene 20K LUM
