Delivery Date:
04/29/2019
Department Name:
Frazer #2 VFD
Department City / State:
Tarentum, PA

Sutphen Corporation – HS #6370

WHEEL BASE: 198”

TRAVEL HEIGHT: 10′ – 3”

TRAVEL LENGTH: 32’ – 5”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

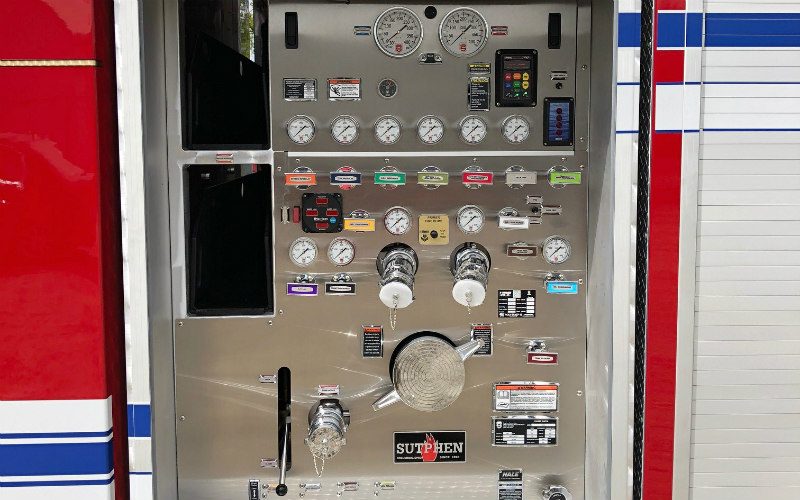

PUMP:                 Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (2) 2 ½” Right Rear Hosebed, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivel with Poly
  • 1,000-Gallon Water Tank
  • Akron 3426 Deck Pipe with Quad Tips and Shaper Monitor

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • 10KW Harrison Generator
  • (1) Hannay Electric Cord Reel, 150’
  • Traffic Advisory, Whelen LED, TAL65 36”
  • Whelen Freedom LED Lightbar
  • FRC Spectra Brow Light
  • FRC, Inview Trueview, Single Camera System
  • Hi Viz Guardian Elite LED Scene Lights
  • Oil Dry Hoper w/ SCBA Cylinders Compt. (2 Triple, 1 Single)
