Delivery Date:
04/21/2022
Department Name:

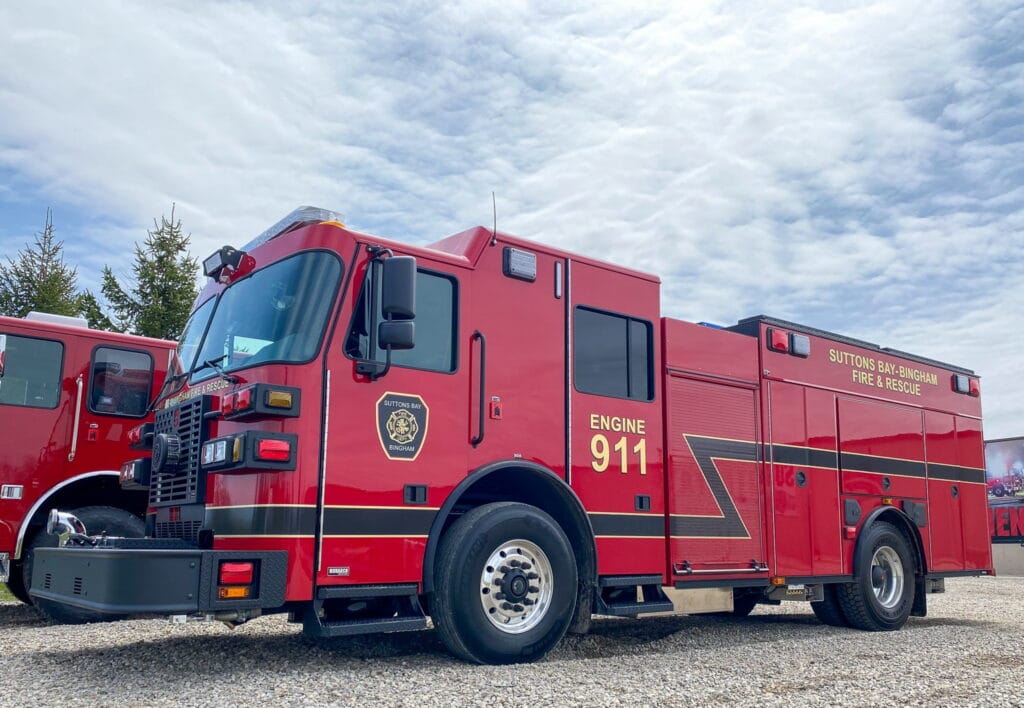

Bingham Fire and Rescue
Department City / State:
Suttons Bay, MI

Sutphen Corporation – HS #6909

Dealer – Heritage Fire Equipment

WHEELBASE: 179 – 0 ½”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 31′ – 8”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Cab with 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 18,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-1500 GPM Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam Educator: Akron 125 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Roll Up and Hinged Compartment Doors
  • 299 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Body: S-9 Aluminum 43/53 Ladder through Tank

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel, Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Backeye 360
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen PFH2 LED 12V Brow Light
  • FireTech Work Light
  • Whelen 900 12V Scene Lights
