Delivery Date:
04/13/2022
Department Name:
National Trail Fire Department
Department City / State:
Gratiot, OH
Truck Type:
Sutphen Corporation – HS #7057
Dealer – Heritage Fire Equipment
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Half Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000

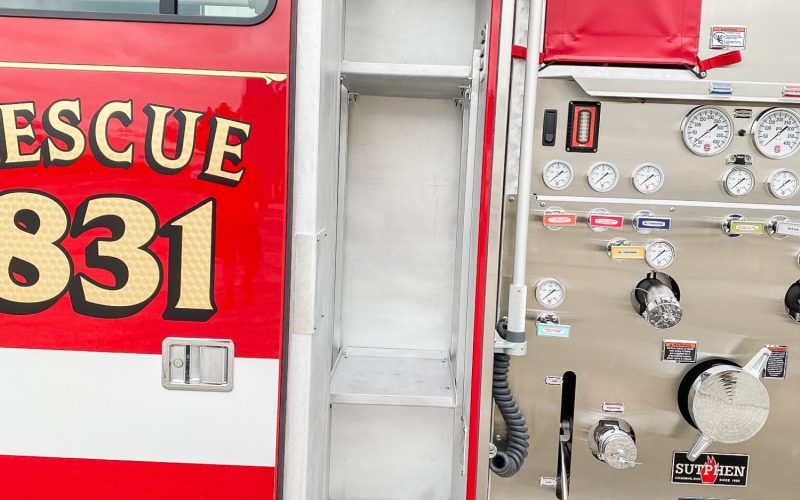

PUMP: Hale
- XS QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right, (1) 2 ½” Left/Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 1,000-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Hale SmartFoam 5.0

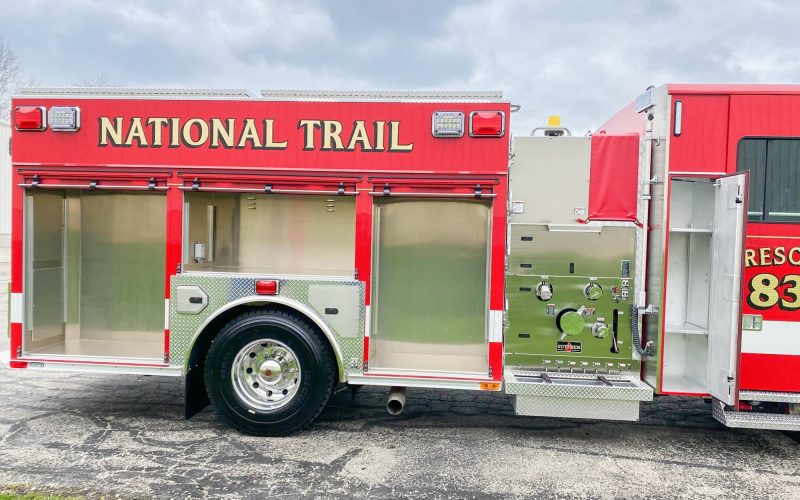

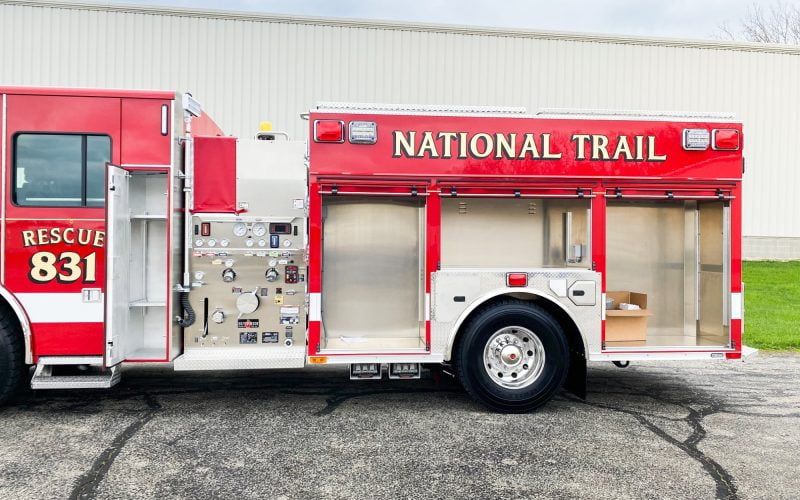

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-up Compartment Doors
- 294 cu. ft. Total Compartment Space
- Duo Safety Ladder Package: 900A 24’ 2 Section & 775A 14’ Roof & 10’ Folding
- Body: G9 Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Two Cameras
- Intercom System: Firecom Six Position
- Whelen Freedom 72” LED Lightbar
- FR Spectra Brow 12V LED Light
- FR Spectra 12V LED Scene Lights
