Sutphen Corporation – HS #6608
Dealer – FAST of the Allegheny Mountains
WHEELBASE: 215”
TRAVEL HEIGHT: 10’ – 7”
TRAVEL LENGTH: 34’
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 15” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-2,000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
BODY: Sutphen
- AMDOR Roll-Up Compartment Doors
- 246 Cu. Ft. Base Compartment Space
- Alco-Lite Ladder Package (24’ 2-Section, 14’ Roof and 10’ Folding)
- Body: G9-Alum 40/51
ADDITIONAL EQUIPMENT:

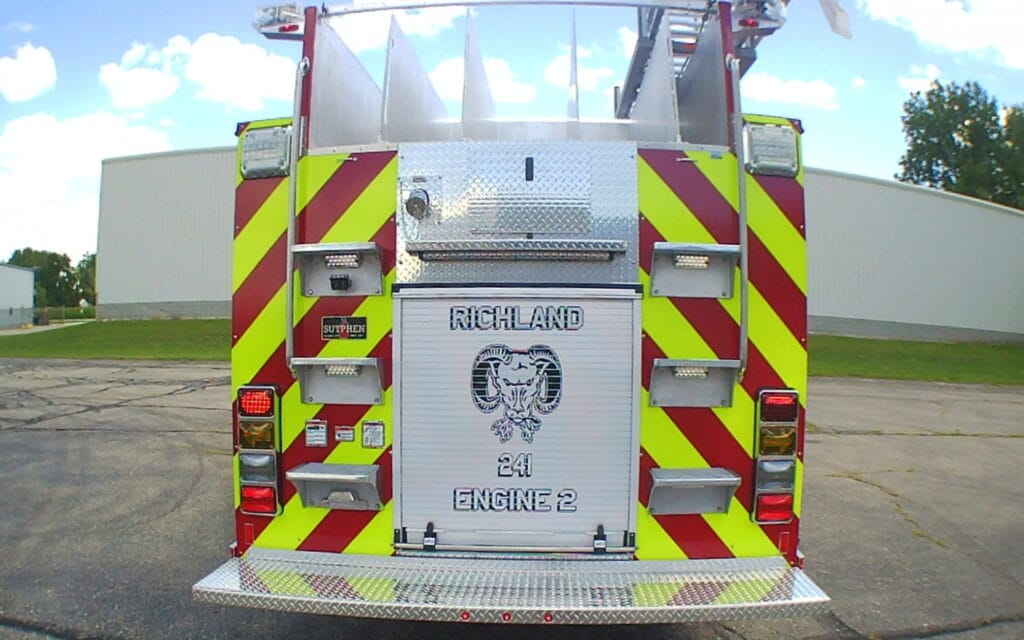

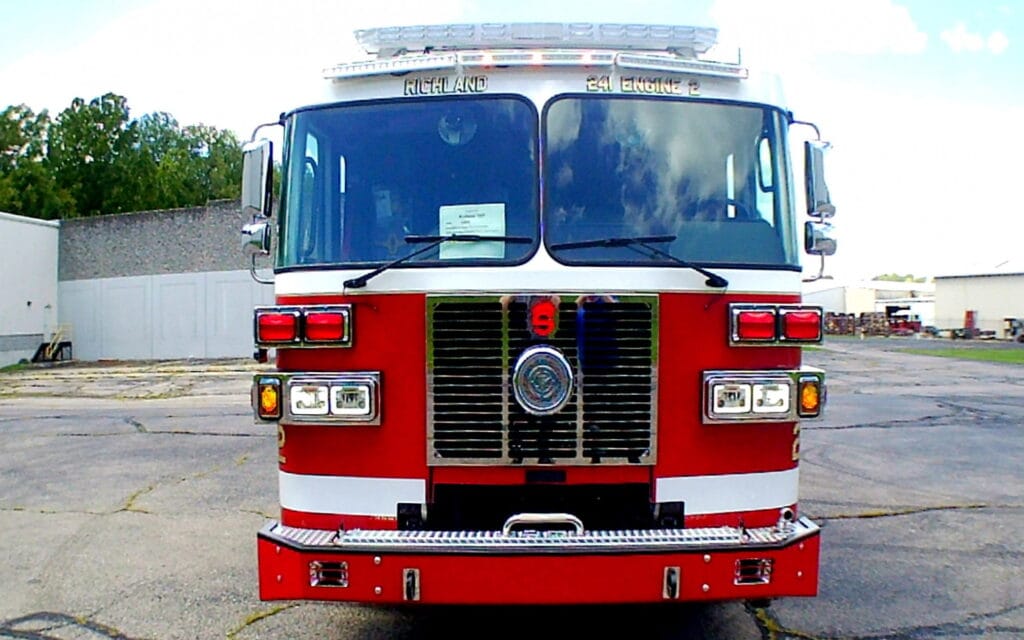

- 12” Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview
- 10KW Smart Power Generator
- 2 Bottle Compartments
- Firetech 3-piece 72” LED Brow Light
- Whelen Freedom IV 72” Lightbar
- HiViz GESM Scene Light
- Whelen 600 Cornering Lights
