Delivery Date:
09/02/2020
Department Name:
Waynesburg VFD, PA
Department City / State:
Waynesburg, PA

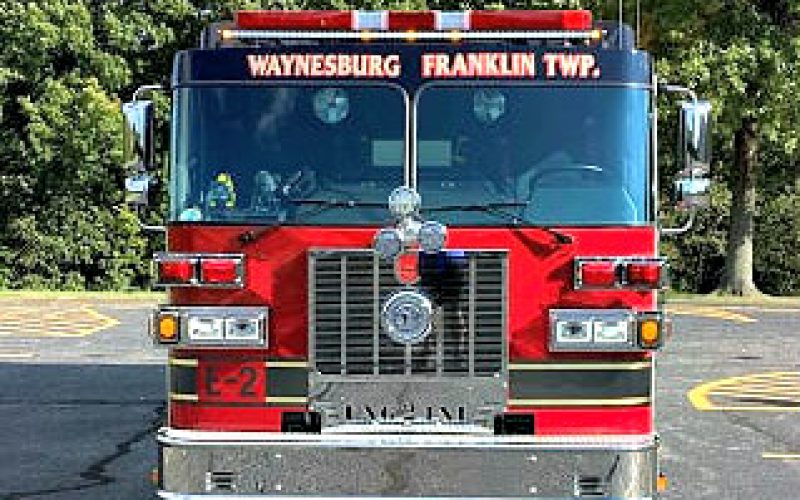

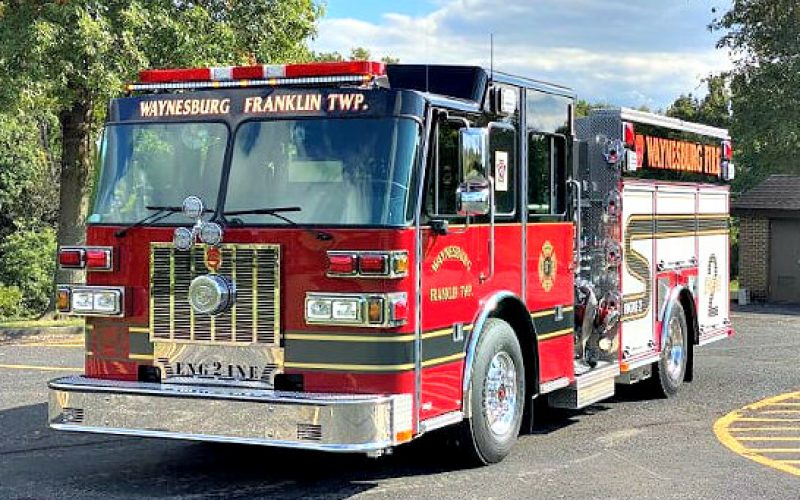

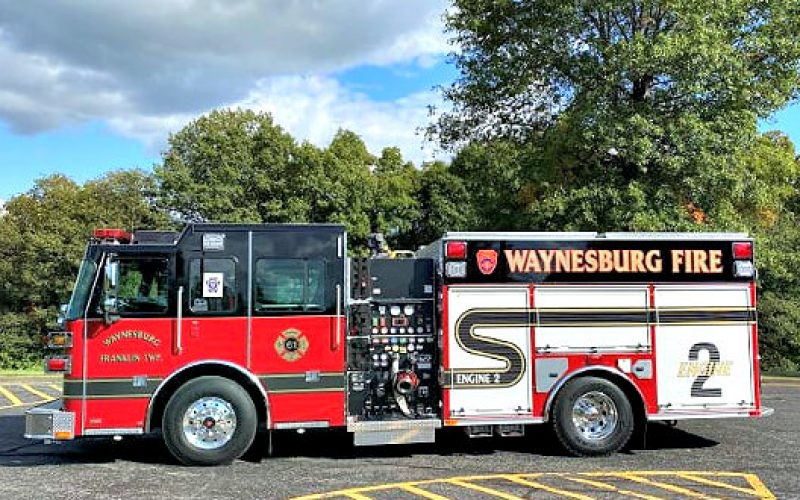

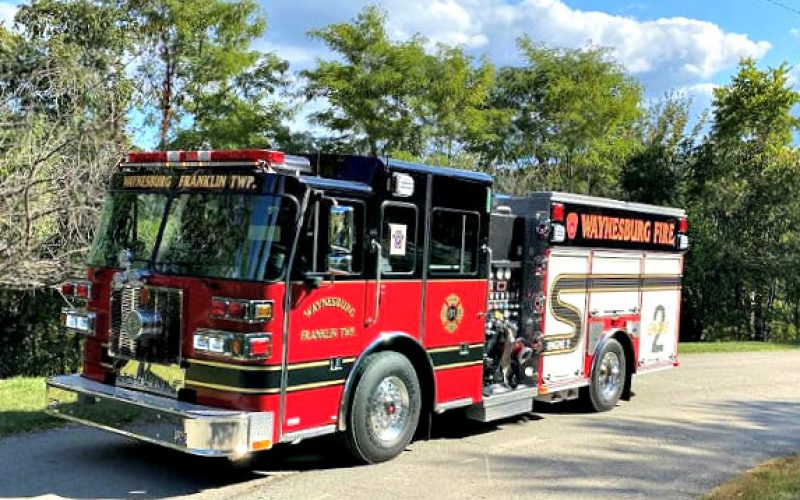

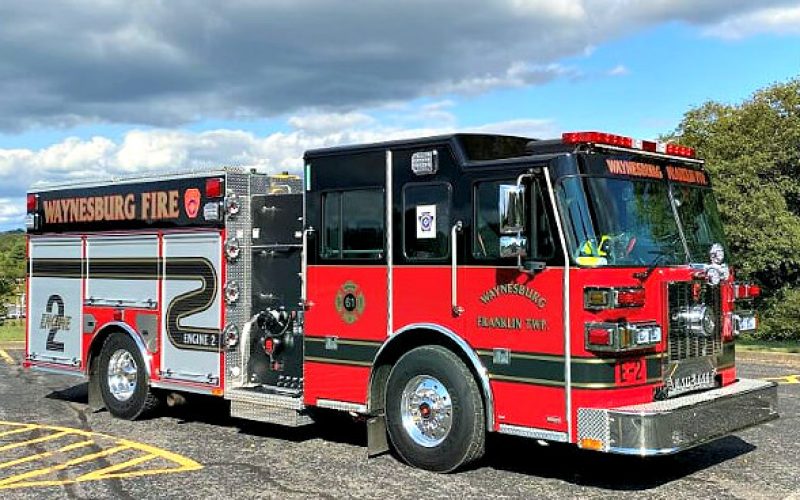

Sutphen Corporation – HS #6618

Dealer – F.A.S.T. of the Allegheny Mountains

WHEELBASE: 185”

TRAVEL HEIGHT: 9’ – 6”

TRAVEL LENGTH: 30’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • XS QMAX 2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Front/Left of Main Hosebed, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½”
  • Speedlay: (2) 2” w/ Swivels and Poly Lift-Out Trays
  • Monitor: Elkhart Cobra EXM Monitor Package
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • 20-Gallon Foam Tank
  • Foam System: Hale Smartfoam 5.0 – Class A & B

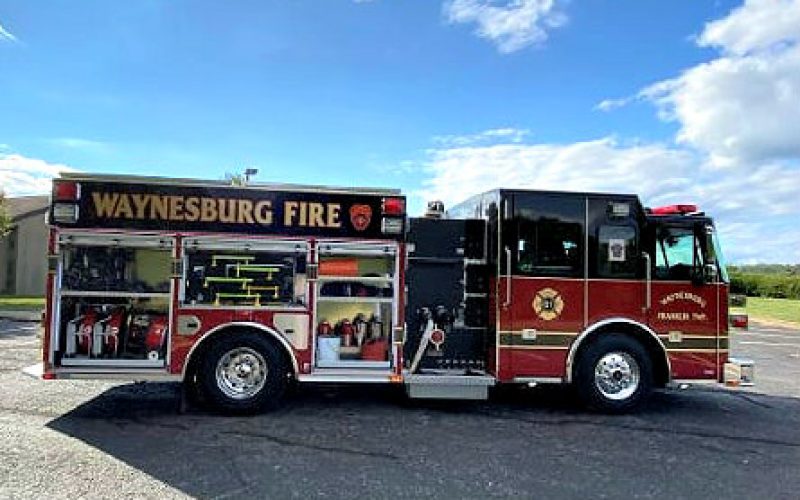

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 222 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute with Backboard Storage
  • Body: G2-Alum 40/51 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Intercom System: Firecom Two-Position Wireless
  • Roto-Ray Warning Light
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen 900 Warning Light
  • Whelen LED Traffic Advisor
  • Hi-Viz FT-B 72” Brow Light
  • Hi-Viz FT-GESM Scene Light
