Delivery Date:
12/20/2020
Department Name:
Harris-Elmore Fire Department
Department City / State:
Elmore, OH

Sutphen Corporation – HS #6734

Dealer – Herb Fire

WHEELBASE: 196”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 32’ – 9”’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 15” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Axle and Suspension 20,000 lbs.
  • Suspension Rear Reyco 27,000 lbs.
  • Engine: Cummins L 9, 380 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • XS QMAX-1,500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, 3” Deck Gun
  • Crosslays: (1) 2 ½”
  • Speedlays: (2) 2” w/ Swivels and Poly Lift-Out Trays
  • 1000-Gallon Water Tank
  • 30 Gallon Foam tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Ladder Package: Alco-Lite 24’ 2-section, 14’ Roof and 10’ Folding
  • Body: G9 – Alum 40/51 Ladders Through the Tank

ADDITIONAL EQUIPMENT:

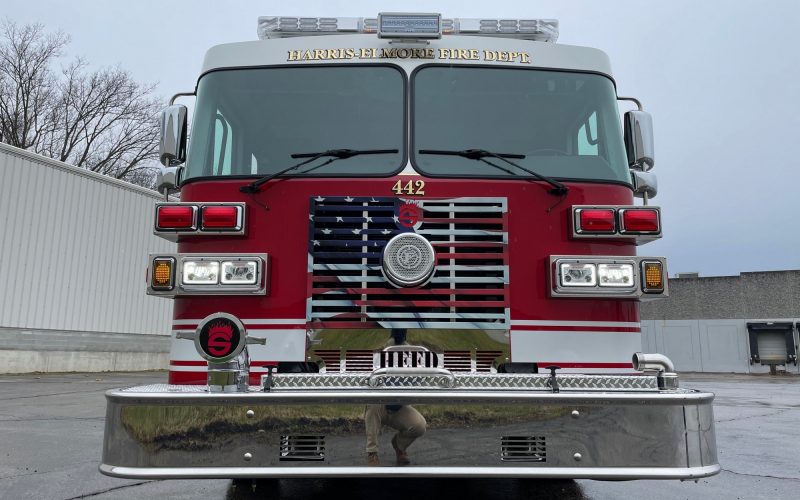

  • 24” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Inview Trueview Single Camera
  • Oil Dry Hopper
  • FRC Spectra Brow Light
  • Whelen M9 Scene Lights
  • Whelen Freedom LED Lightbar
