Delivery Date:
09/21/2022
Department Name:
Plain Township Fire Rescue
Department City / State:
Canton, OH

Sutphen Corporation – HS #7003

Dealer –  Herb Fire

WHEELBASE: 226 – 0 ½”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 35’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Single, Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

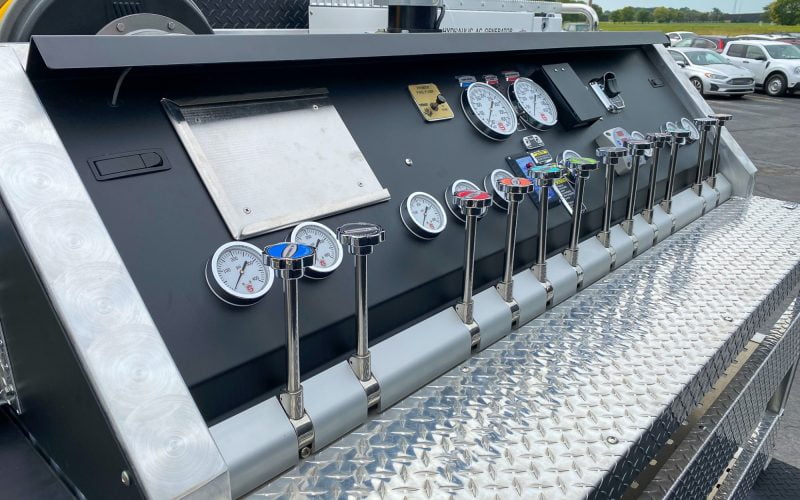

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 3” Left, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-up Compartment Doors, Satin Finish
  • Over 230 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Body: S2 – Alum 43/53 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Back-Up Camera
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: 6KW Smart Power
  • (3) Whelen Freedom IV 23.25” LED Lightbars
  • Whelen PFH2 Brow Light 12V
  • FRC Spectra 240V Tele Lights
  • Whelen M9 12V LED Scene Light
  • Whelen M9V2 12V LED Scene Light
