Delivery Date:
08/17/2022
Department Name:

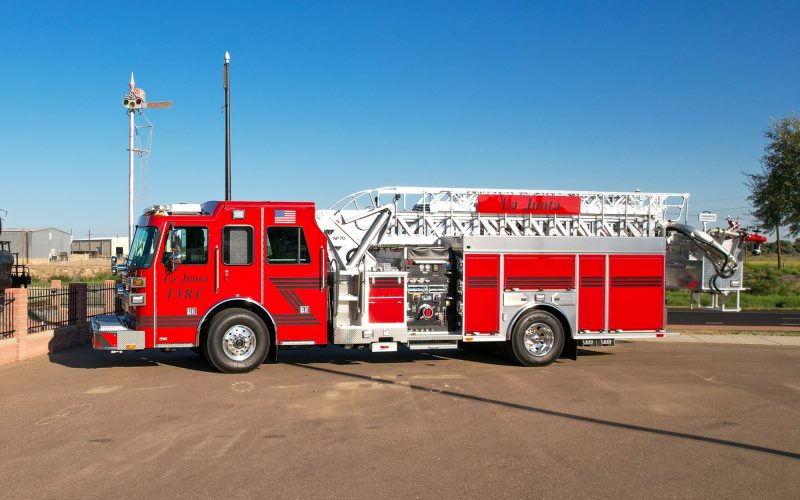

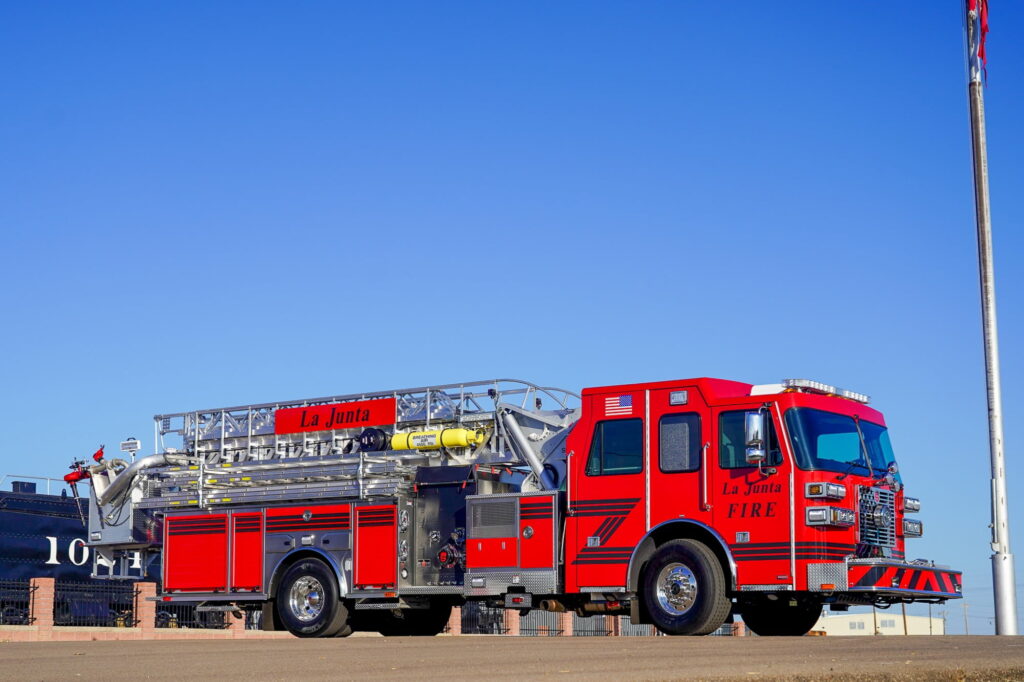

La Junta Fire Department
Department City / State:
La Junta, CO
Truck Type:

Sutphen Corporation – HS #7171

Dealer – IKON Fire

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 43’ – 5 ¾”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
  • Monitor: (2) Akron 3470 Gemini Manual, w/ (1) Akron 1250 Akromatic Nozzle & (1) Akron Quad Stacked Tips and Shaper
  • Crosslays: (2) 2” Valve Piping w/ 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • ROM Roll Up Compartment Doors, Painted
  • Over 192 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: 16’ R, 24’ 2-Section, 35’ 3-Section, & 10’ Folding
  • Body: SAA-4, Left High / Right Intermed / Trans

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Generator: 6KW Smart Power
  • Hannay Electric Cord Reel, 150’ (1)
  • Camera System: FRC, Inview 360HD w/ Built-In DVR
  • Roto-Ray Warning Light
  • Whelen Freedom 4 Lightbar
  • Whelen L31 LED Rear Beacons
  • FRC Spectra 900 Scene Light
