Delivery Date:
09/29/2022
Department Name:
Mankato Fire Department
Department City / State:
Mankato, MN

Sutphen Corporation – HS #7200

Dealer – CustomFIRE

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 3”

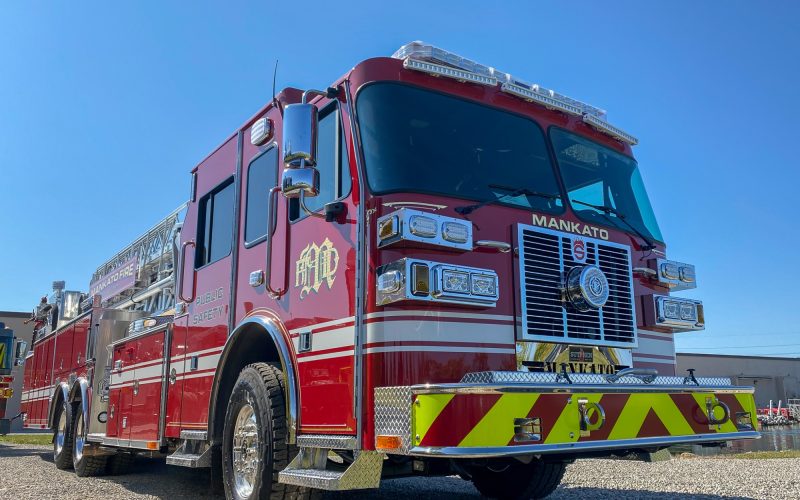

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

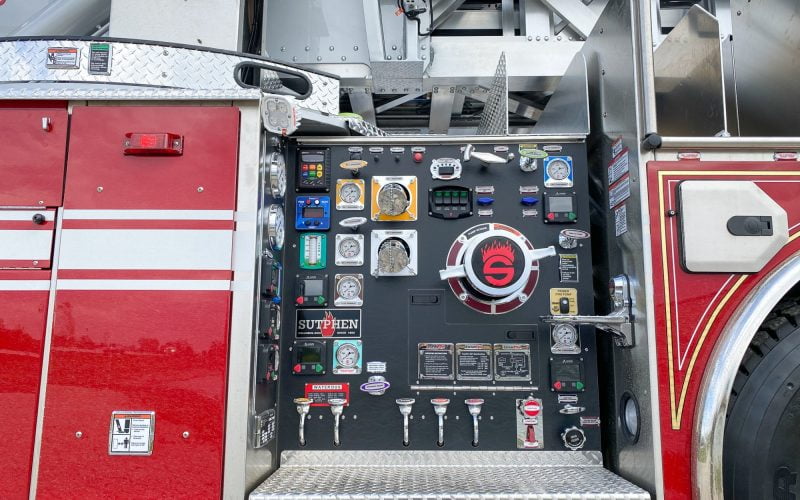

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslays: (1) 2 ½” Crosslays, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 400-Gallon Water Tank
  • 20-Gallon Foam Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 101’: 10’F; 14’; 18’; 24’ 2-Section; & 35’ 2-Section
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: Wireless Firecom 5100D, Single Radio
  • Hannay Electric Cord Reel, 150’ (1)
  • Inverter: 2KW Aims Industrial
  • Camera System: FRC, Inview Trueview, Single Camera
  • FireTech 12V 3-Piece Brow Light
  • FireTech Aerial Spotlights
  • FireTech 120V Guardian Elite Tele Lights
  • Whelen Freedom IV WECANX 72” Lightbar
  • Whelen M9 12V Scene Lights
  • Whelen L31 Warning Beacon

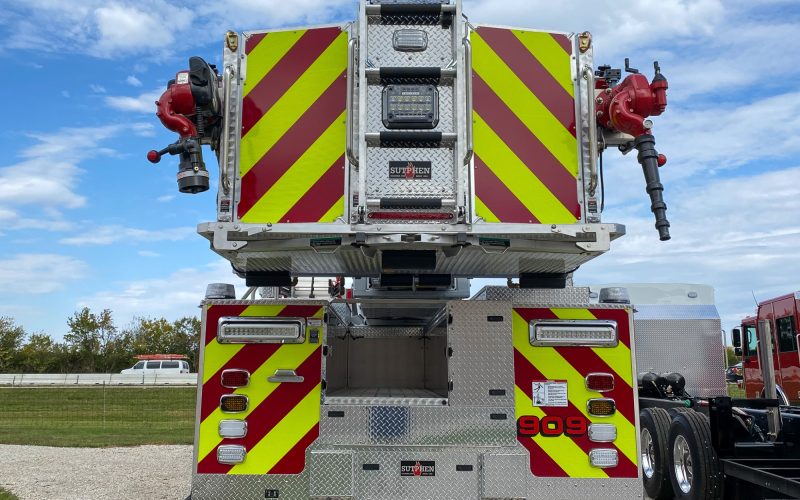

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
