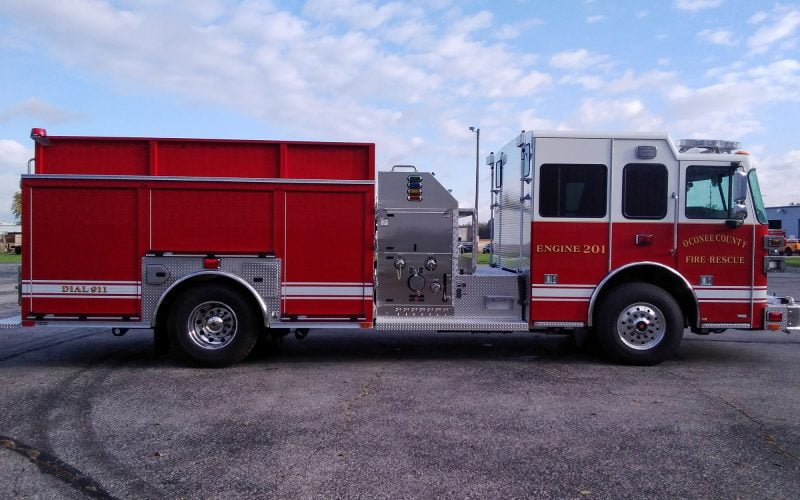

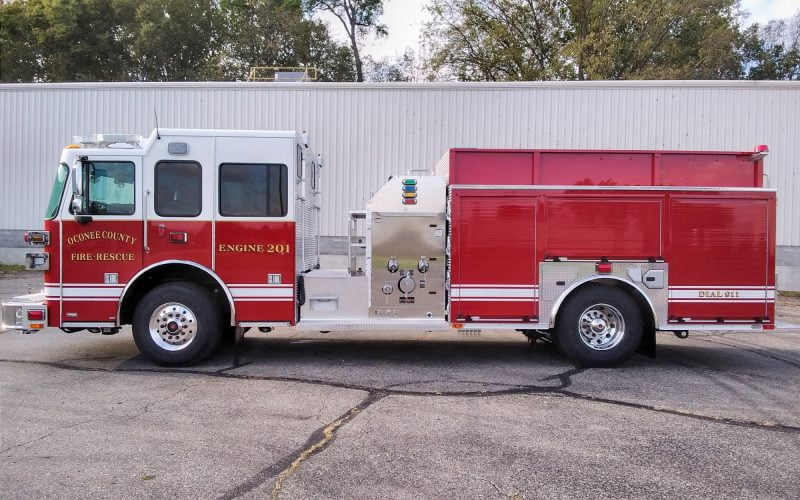

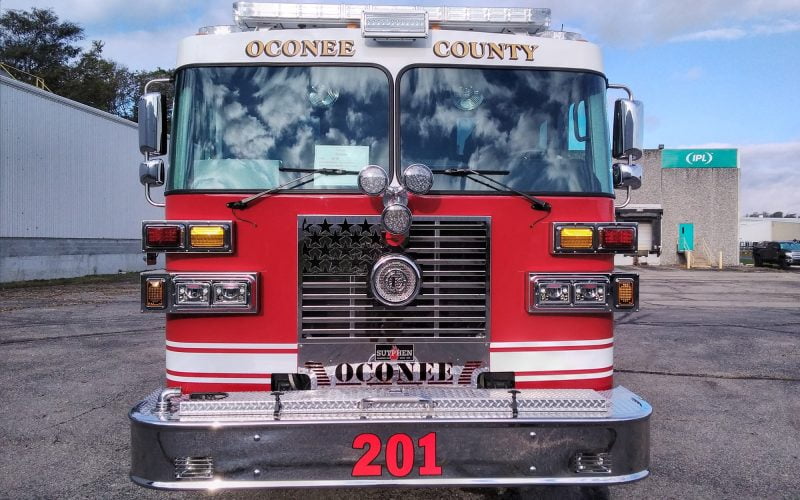

Delivery Date:
10/13/2021
Department Name:
Oconee County Fire Rescue
Department City / State:
Watkinsville, GA

Sutphen Corporation – HS #6916

Dealer – Williams Fire Apparatus

WHEELBASE: 209”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Half Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” with 1.5” Swivels
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 245 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’2 Section & PRL-14 14’ Roof & 10’ Folding
  • Body: G9 – Aluminum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Voyager 2 Wired
  • FRC Spectra Brow Light
  • FRC Telelights
  • Whelen Freedom LED Light Bar
  • Whelen M9 Scene Light
  • Whelen Traffic Advisor
