Delivery Date:
02/17/2022
Department Name:
North Fort Myers Fire District
Department City / State:
North Fort Myers, FL

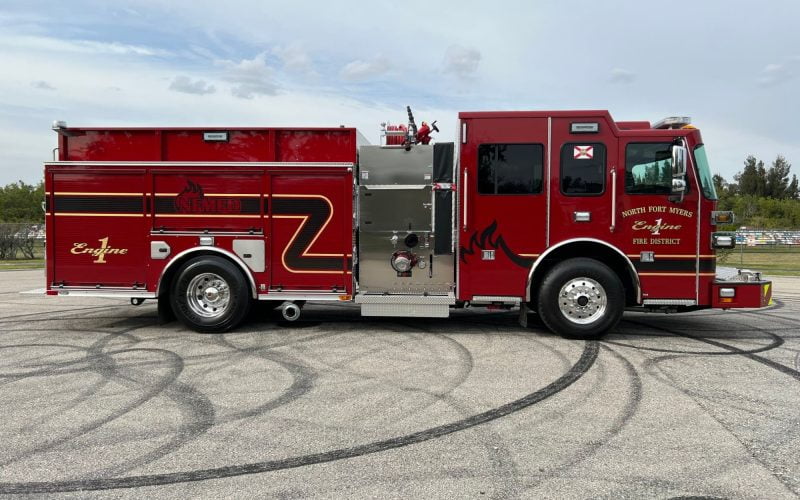

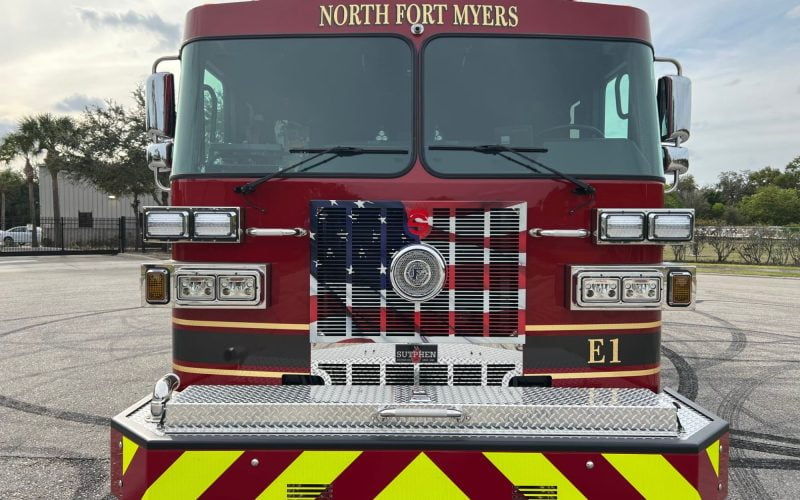

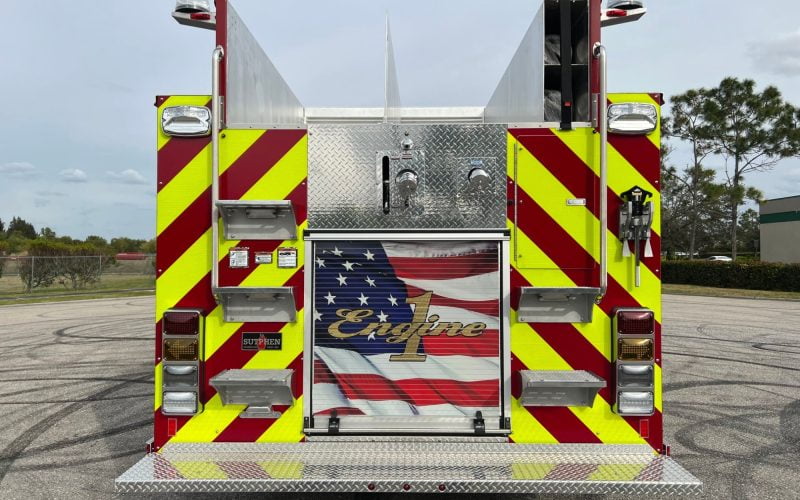

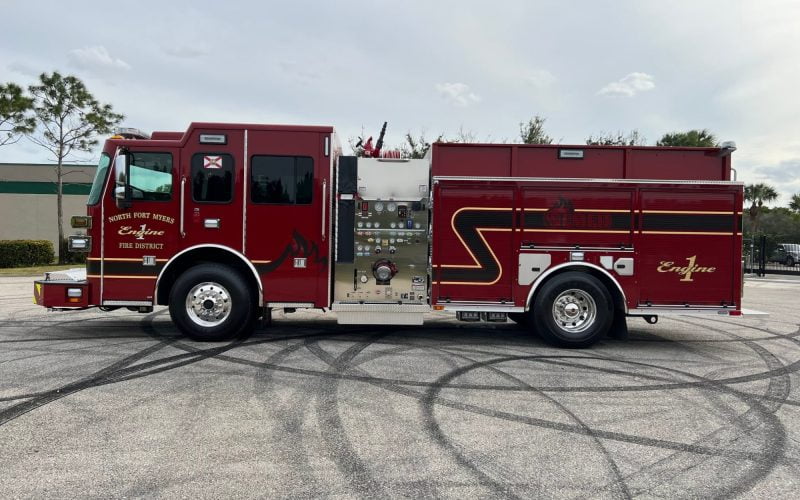

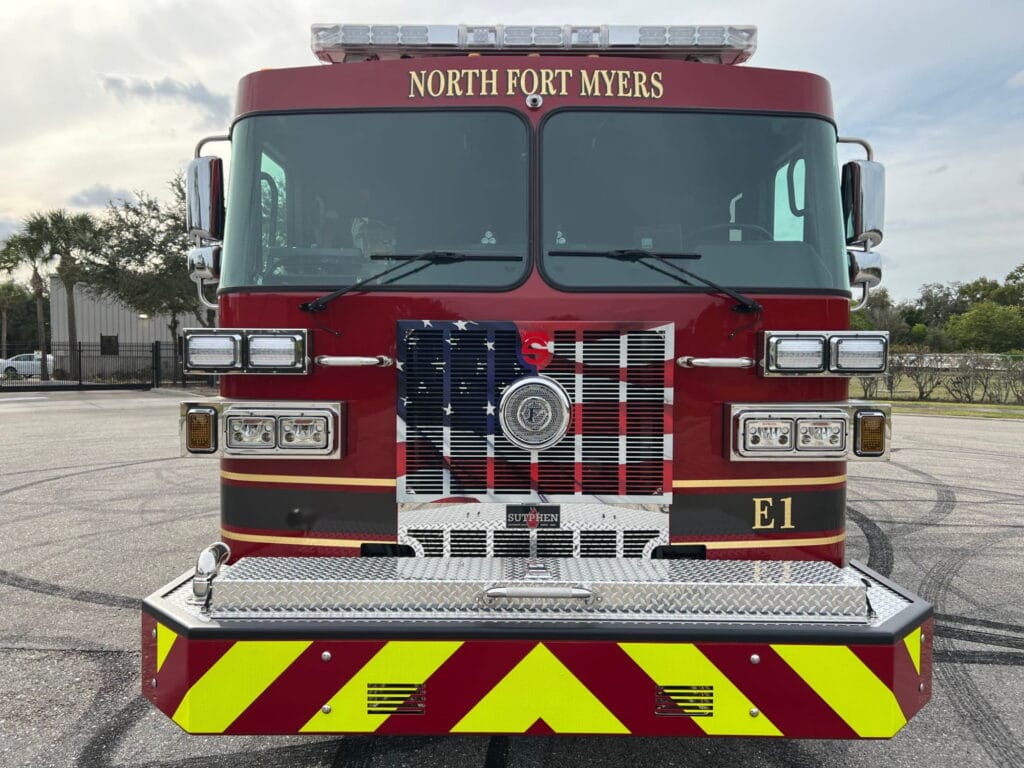

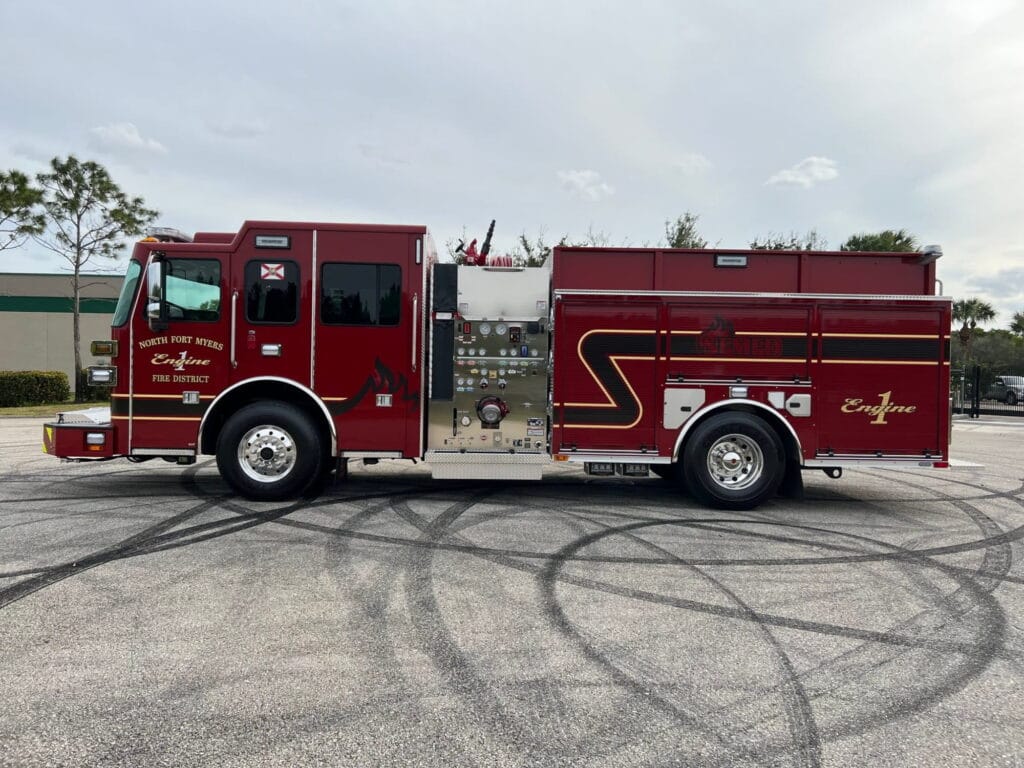

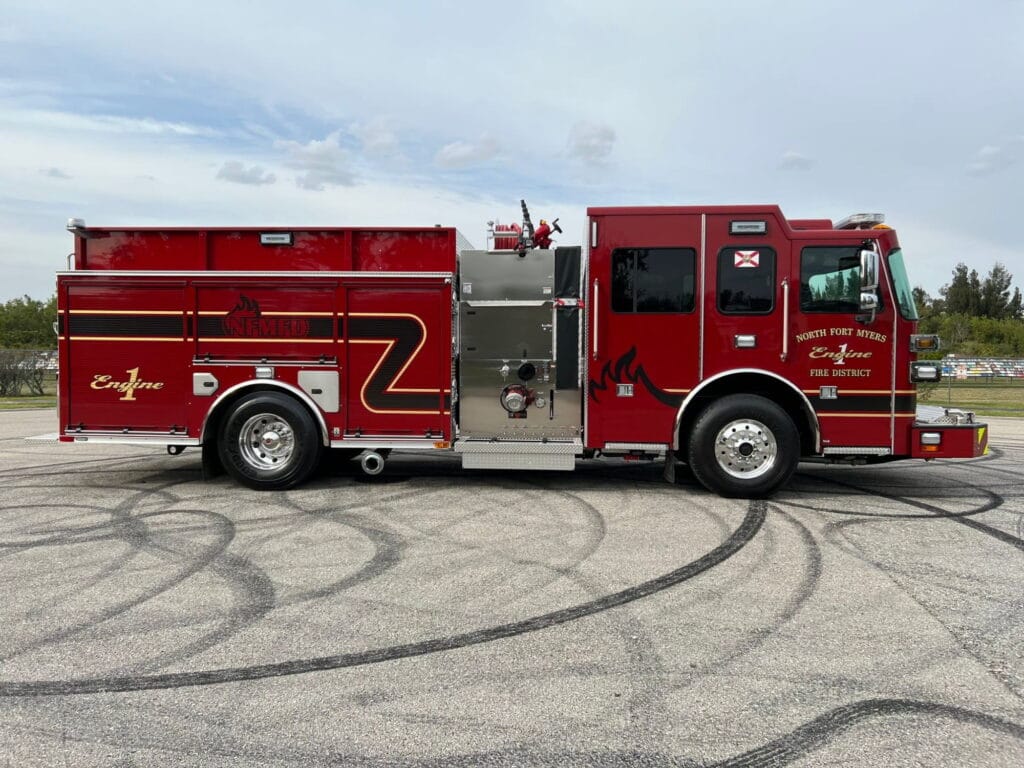

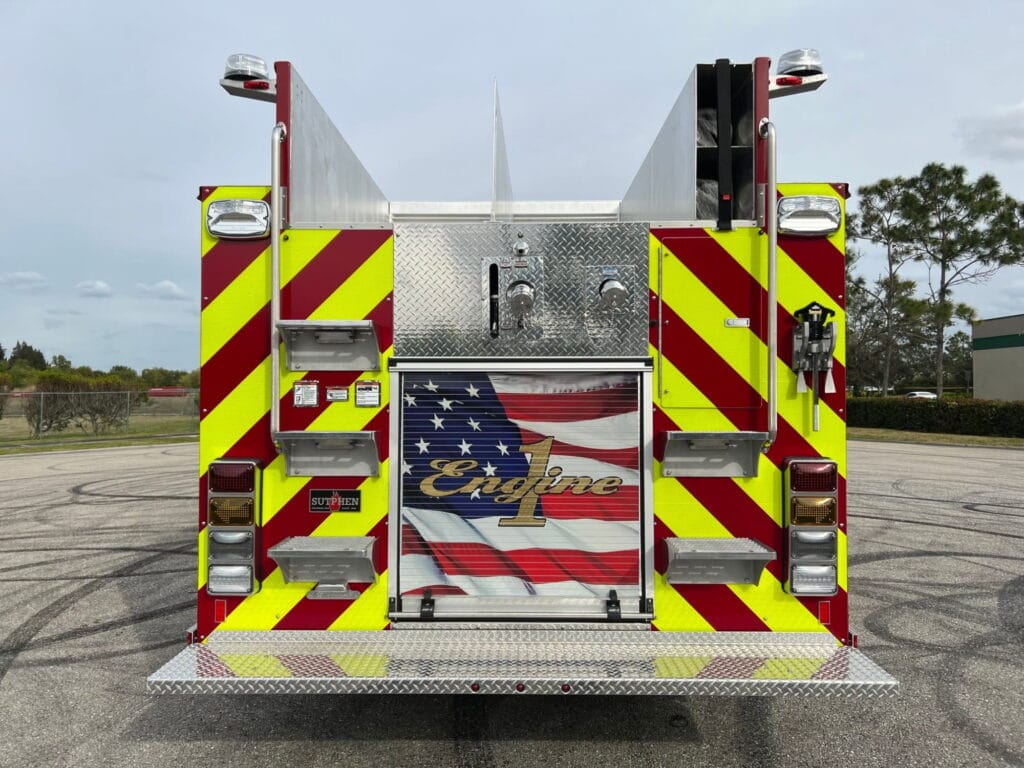

Truck Type:
Sutphen Corporation – HS #6931
Dealer – South Florida Emergency Vehicles
WHEELBASE: 192”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 5”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10 ½” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- XS QMAX 1500 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
- Crosslay: (1) 2 ½“
- 1,000 Gallon Water Tank
- 30 Gallon Foam Tank
- Foam System, Akron 125 GPM 3126 By-Pass W/ Flush to Discharge Line
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-up Compartment Doors, Satin Finish
- 222 cu. ft. Total Compartment Space
- Alco-Lite ladder package: PEL-24 24’ 2-sec & PRL-14 14’ Roof & 10’ Folding
- Body: G9 – Aluminum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Steel Bumper
- Federal Q2B Siren, Grille Mount
- Intercom System: David Clark 5-Position
- Camera System: Brigade 360 Camera
- FRC Spectra LED Scene
- Whelen Freedom 72” LED Lightbar
- Whelen M9 Red LEDs
