Delivery Date:
01/28/2022
Department Name:
Montgomery County Fire Department
Department City / State:
Mt. Sterling, KY

Sutphen Corporation – HS #6970

Dealer – Heritage Fire Equipment

WHEELBASE: 198”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 32’ – 5”

CHASSIS:  Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Half Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Single Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9 450 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

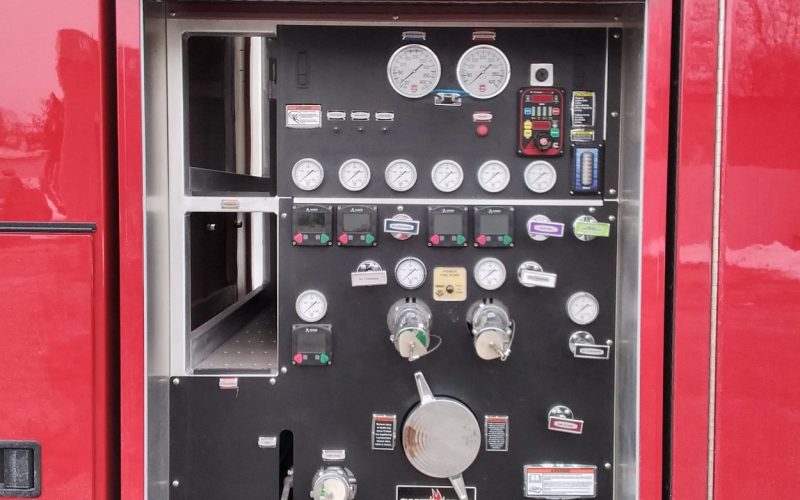

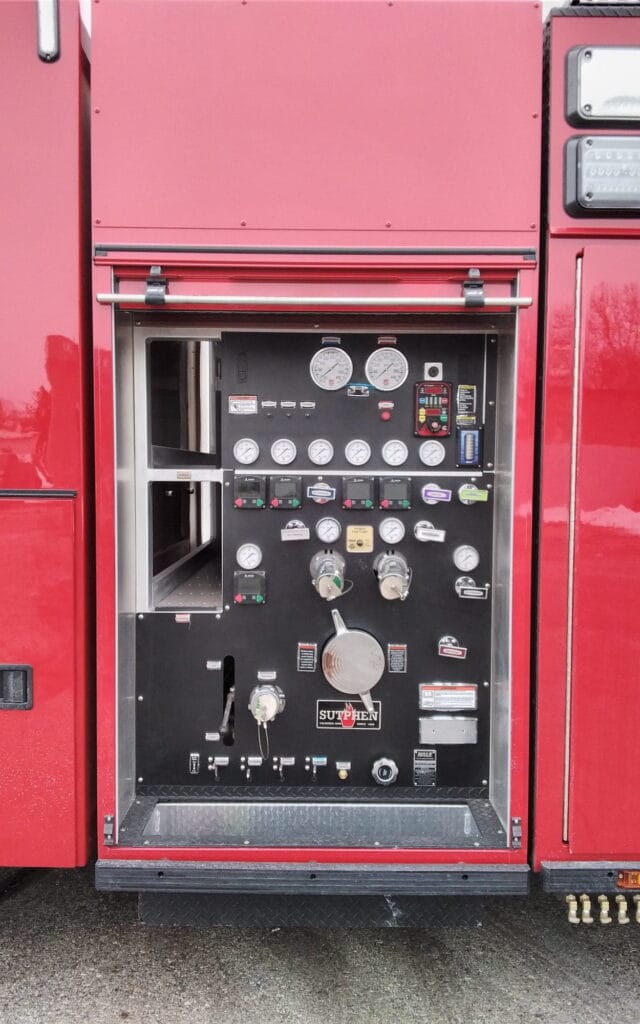

PUMP:                  Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Water Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main HoseBed, (1) 1 ½“ Front Bumper, (1) 3” Deck Gun
  • Foam Discharges: (5) Positions
  • 1,000-Gallon Water Tank

BODY:                   Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-up Satin Finish Compartment Doors
  • Over 294 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Compliment: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
  • Body: G9 ALUM 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Inview Trueview, Single Camera
  • FireTech 3-Piece 72” 12V Brow
  • Whelen 900 LED Scene Lights
  • Whelen Freedom Lightbar IV 72”
