Delivery Date:
03/16/2022
Department Name:
East Haddam Fire Department
Department City / State:
East Haddam, CT
Truck Type:

Sutphen Corporation – HS #7049

Dealer – MES-Shipman’s Fire Equipment

WHEELBASE: 217”

TRAVEL HEIGHT: 12’

TRAVEL LENGTH: 37’ – 11 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 35,000 lbs
  • Engine: Cummins X 15 600hp
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

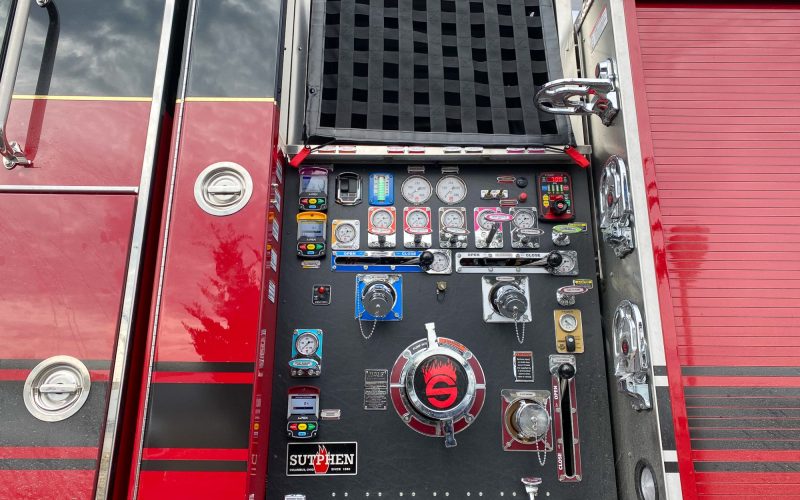

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • Crosslay: (2) 2 ½” Crosslays, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
  • 500-Gallon Water Tank

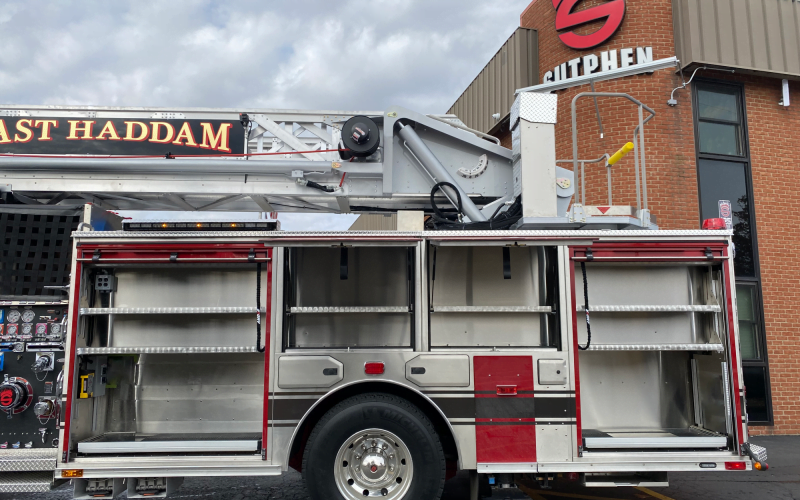

BODY:                  Sutphen

  • Amdor Roll-up Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Compliment: (96’: 16’R, 16’R, 24’ 2-Section, 35’ 3-Section & 10’ F)
  • Body: SAA-RM1, Left High / Right High
  • Monitor: Elkhart 7250 Cobra EXM w/ SM1500E Nozzle

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Intercom System: FRC ACT 2-Station
  • Inverter: Kussmaul 3000W
  • Whelen PFP1AC 120V LED Scene Light
  • Whelen PFH2 12V LED Brow Lights (2)
  • Whelen FNMini Lightbar
  • Whelen Summit 33” 12V LED Scene Light
  • Whelen Summit 44” LED Scene Light
  • Techniq ICC Lights
  • FireTech 12V LED Boom Spotlights
