Delivery Date:
08/20/2019
Department Name:

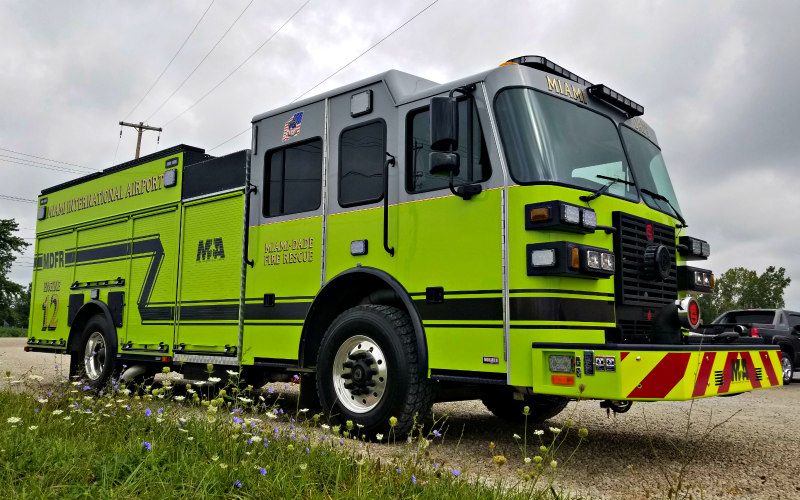

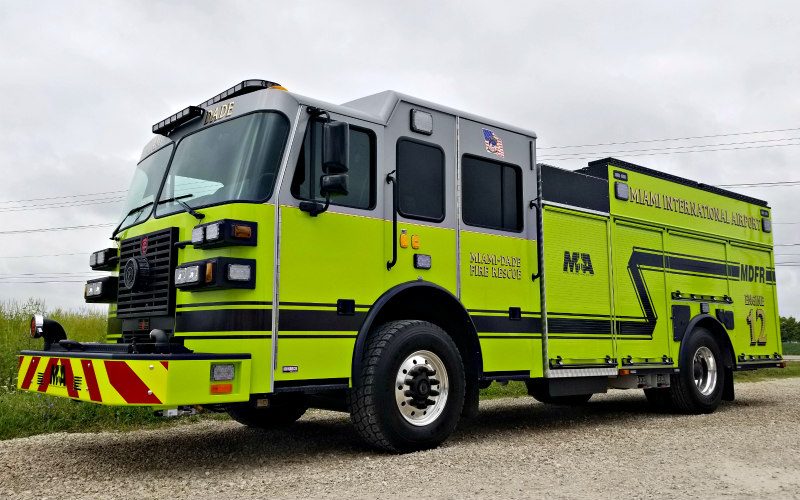

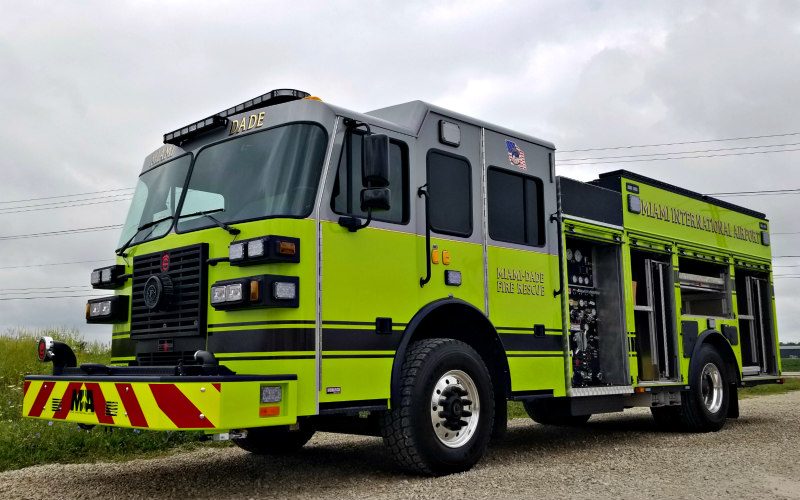

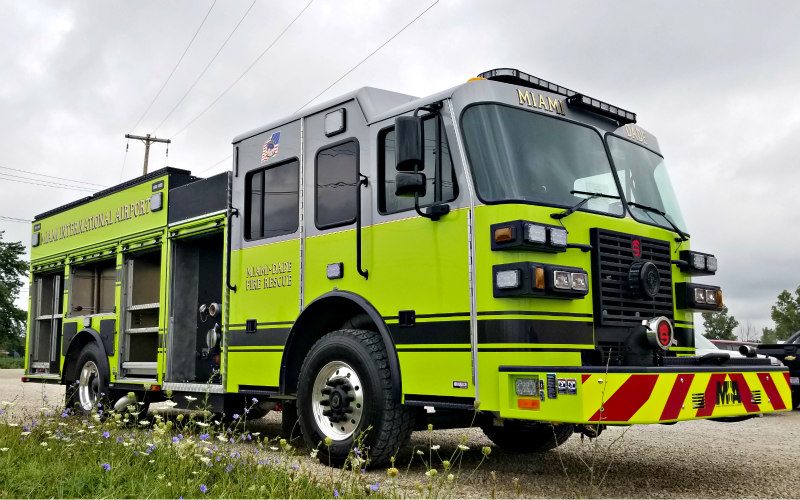

Miami-Dade Airport
Department City / State:
Miami, FL

Sutphen Corporation – HS #6351

WHEEL BASE: 187”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam Edutator, Akron 125 GPM External

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Carbon Fiber Lift Bars, Amdor Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section and PRL-14 14’ Roof and 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper Extension
  • Camera System, Brigade Backeye 360

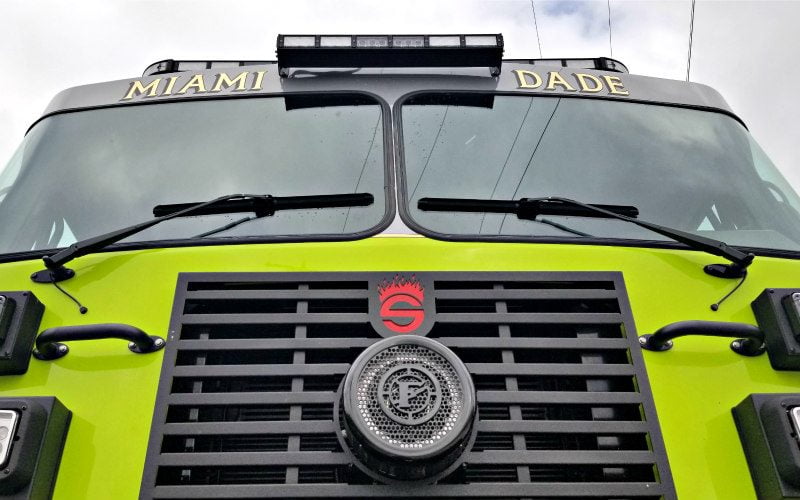

  • Federal Q2B Siren, Grille Mount
  • Tomar 15” Brow Light
  • Tomar 72” Scorpion Light Bar
  • Tomar 4×6 Revolution Warning Lights
  • Tomar 7×9 Scene Lights
  • Triple Air Bottle Compartments (3)
