Delivery Date:
08/15/2019
Department Name:
Jeromesville Fire Department
Department City / State:
Jeromesville, OH

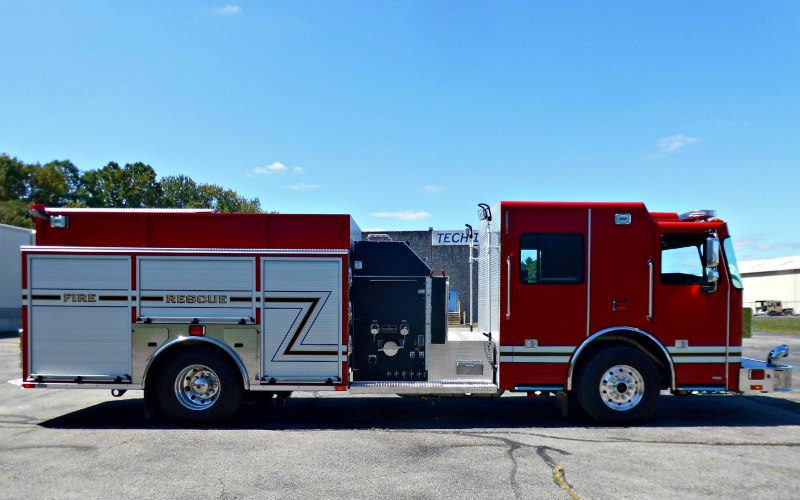

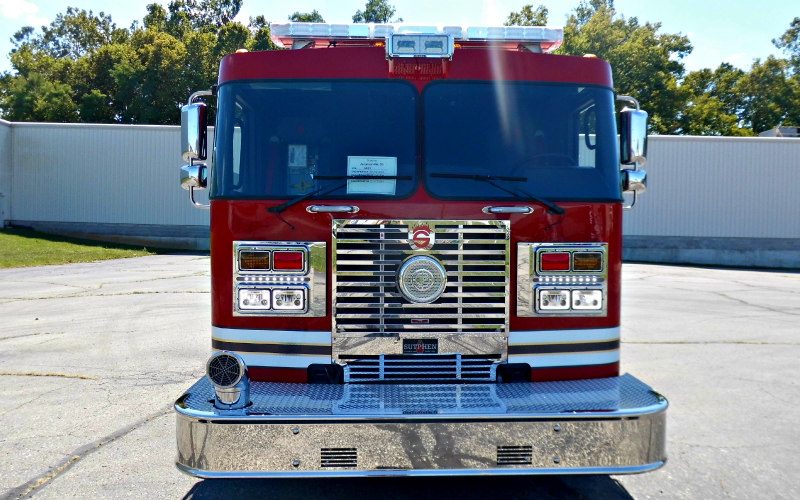

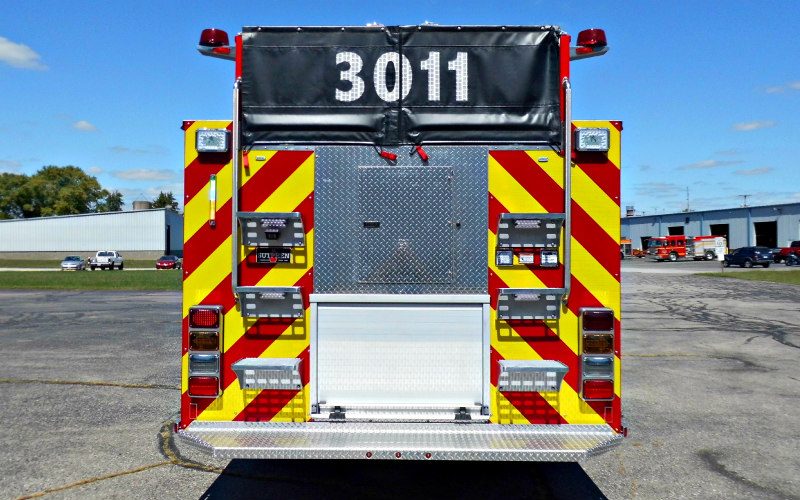

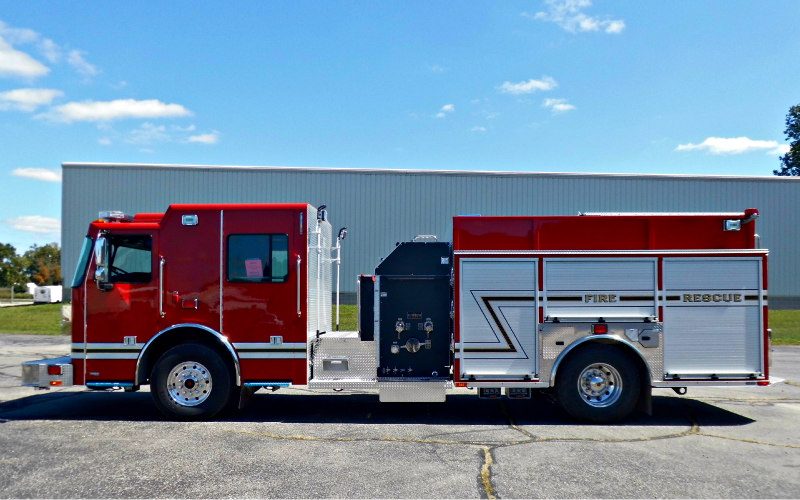

Sutphen Corporation – HS #6450

WHEEL BASE: 215”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 34’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • 1000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 246 cu. ft. Total Compartment Space
  • Alco-Lite Ladders (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • FRC, Inview Trueview, Camera System
  • (3) Triple Air Bottle Compartments
  • Akron Revel 28K Brow Light
  • Akron Revel 14K Scene Light
  • Whelen Freedom LED Lightbar
