Delivery Date:
02/17/2022
Department Name:
Maryland Heights Fire Protection District
Department City / State:
Maryland Heights, MO

Sutphen Corporation – HS #6864

Dealer – Cashion Fire Equipment

WHEELBASE: 218 ½”

TRAVEL HEIGHT: 10’ – 6”

TRAVEL LENGTH: 34’ – 6 ½”

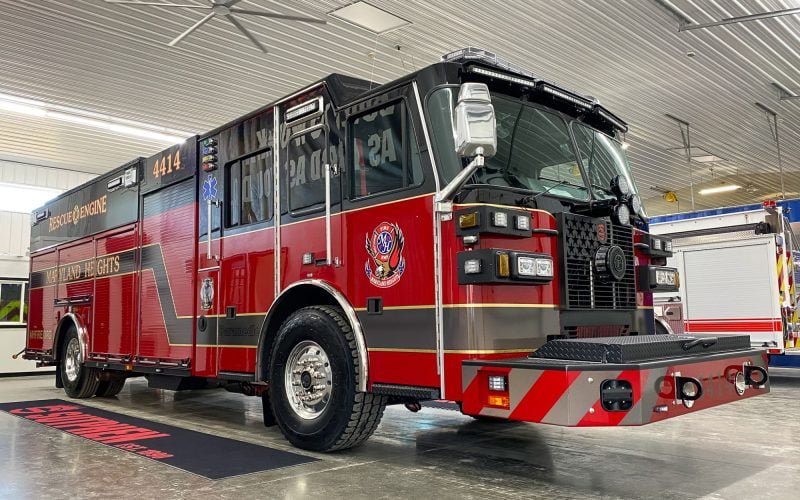

CHASSIS:  Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Half Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 21,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12 500 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS4000

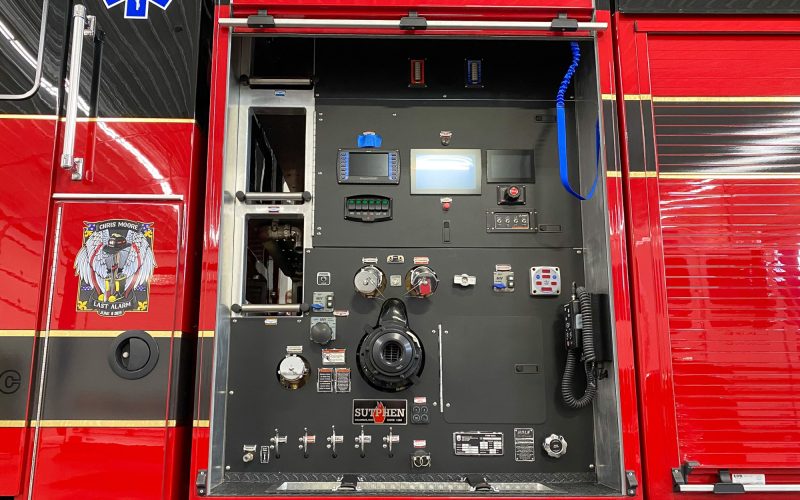

PUMP:                 Hale – IDEX/SAM System

  • QMAX-2000 GPM, Single Stage Pump
  • Water Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 4” Right, (1) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Foam Discharges: (5) Positions
  • 600-Gallon Water Tank
  • 30-Gallon Foam Tank

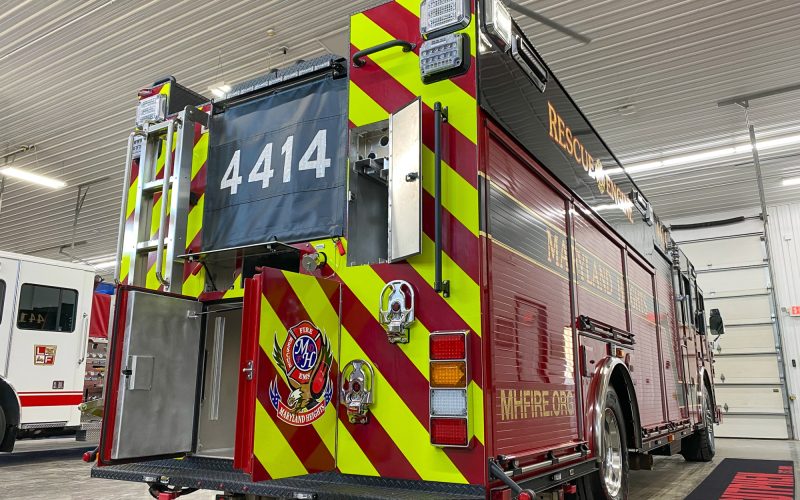

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-up Compartment Doors
  • Over 420 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Compliment: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Ladder, Fresno 701
  • Body: PA-15 Res 56/53 Ladder Chute and Double Hatch

ADDITIONAL EQUIPMENT:

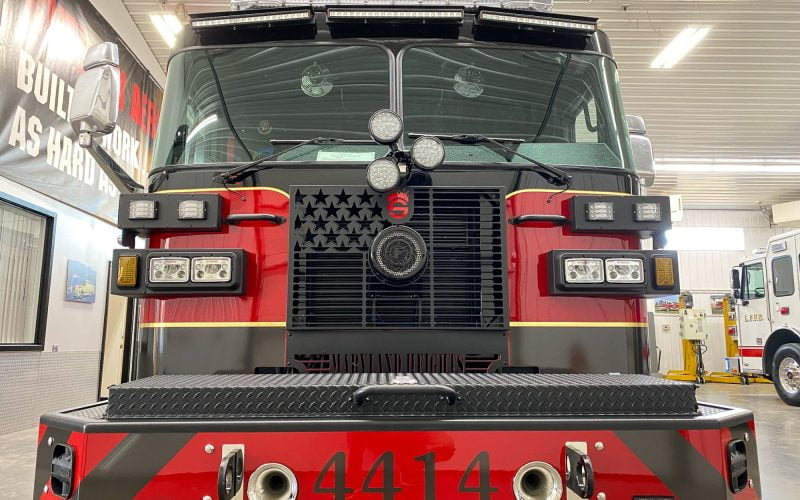

  • 30” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Camera System for Class 1
  • Hannay Electric Cord Reel, 175’ (1)
  • Generator: 8KW Smart Power
  • FireTech 3-Piece 72” 12V Brow
  • FireTech 12V Scene
  • Code 3 PRIZM II Red and Blue LED
  • Code 3 Pursuit LED Lightbar 71”
  • Code 3 Traffic Advisor
  • Roto-Ray Warning Light
  • Command Light 115V KL409A-H4
