Delivery Date:
02/23/2022
Department Name:
Hernando County Fire & Emergency Services
Department City / State:
Brooksville, FL

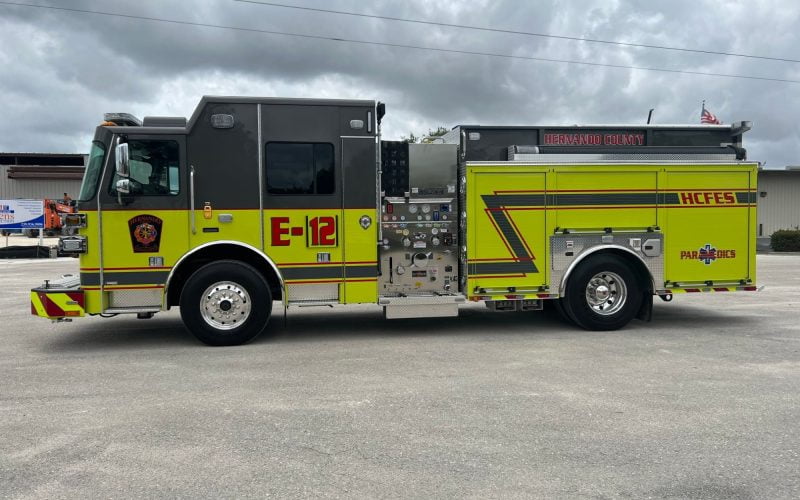

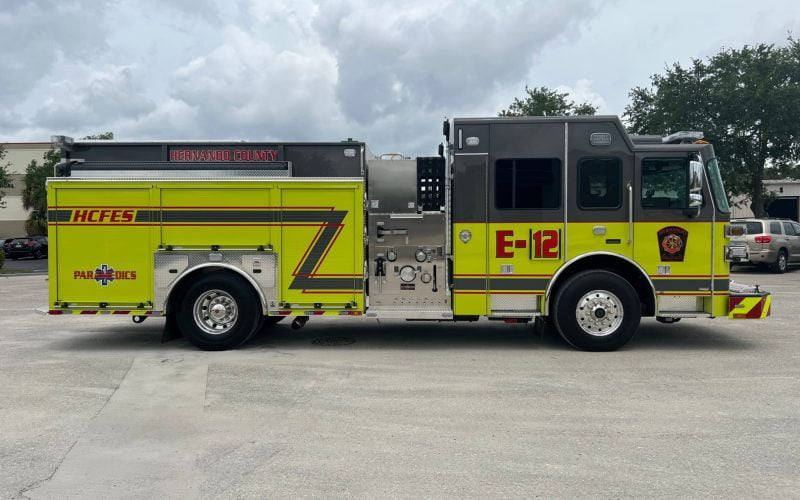

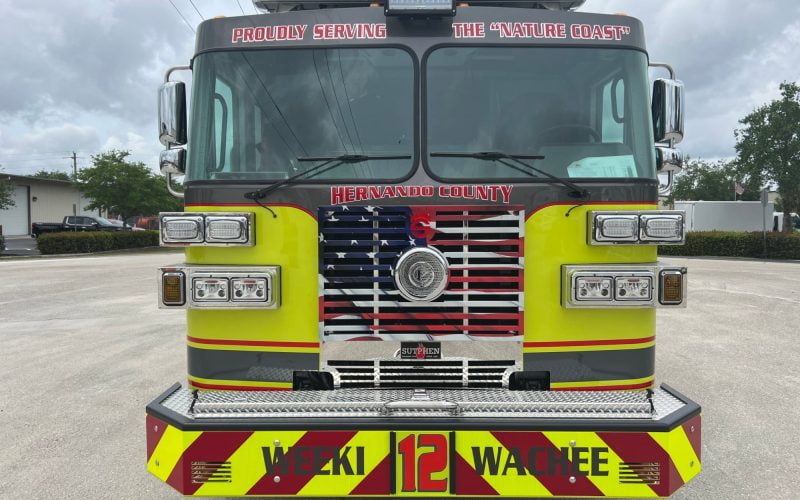

Sutphen Corporation – HS #6981

Dealer – South Florida Emergency Vehicles

WHEELBASE: 196”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 32’ – 3”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 15” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 400HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QFLO – 1250, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left Main HoseBed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” Crosslays w/ 1 ½” Swivel
  • 1000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Foampro 2001, 2.6GPM

BODY:                   Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors, Painted
  • Over 220 cu ft. Total Compartment Space
  • Duo-Safety: (1) 24’ 2-section, (1) 14’ Roof, (1) 10’ Folding
  • Body: G2 – Alum 40/51 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Painted, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom LED Lightbar
  • FRC Spectra Brow Light
  • Whelen M9 Scene Light
  • FRC Spectra Tele Lights
  • Whelen M6 LED Quad Tail Lights
