Delivery Date:
04/24/2020
Department Name:
Mabscott Fire Department
Department City / State:
Mabscott, WV

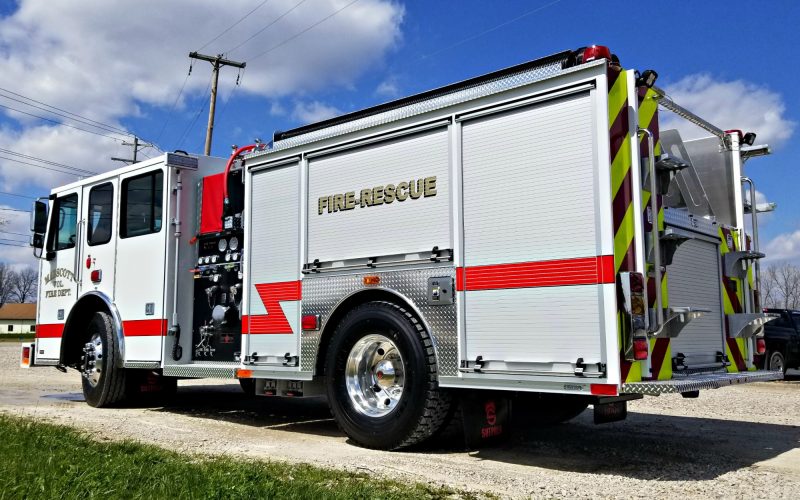

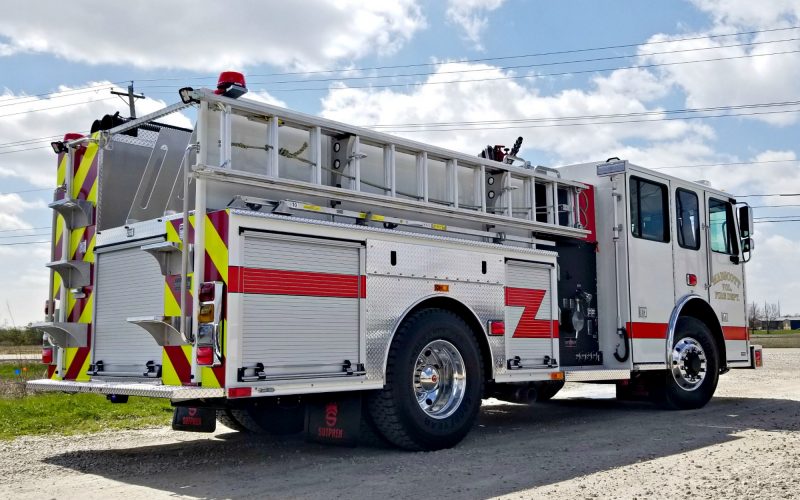

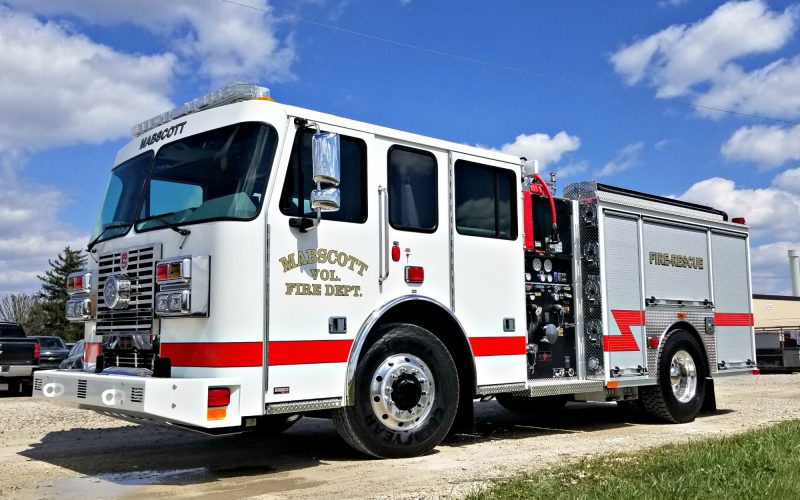

Sutphen Corporation – HS #6507

Dealer – Heritage Fire Equipment

WHEELBASE: 167”

TRAVEL HEIGHT: 9’ – 6”

TRAVEL LENGTH: 27’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

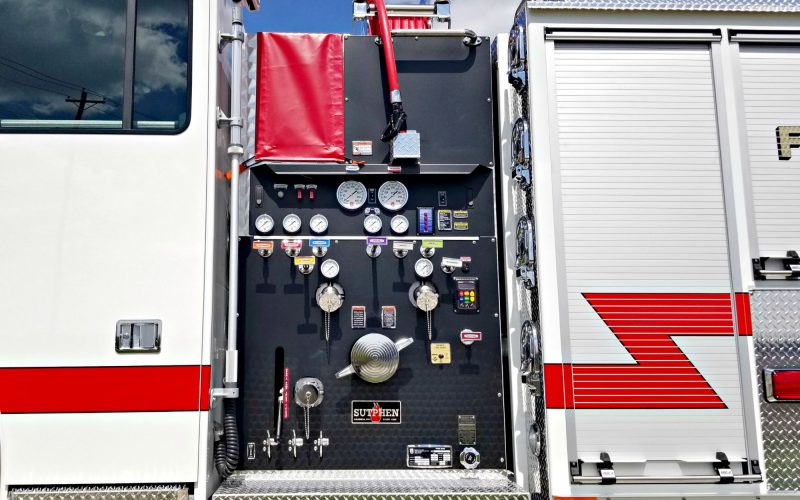

PUMP:                 Hale

  • QFLO-1250 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Deck Gun
  • 750-Gallon Water Tank
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel

BODY:                  Sutphen

  • 3/16” Extruded Aluminum Mounting Plate
  • Amdor Roll Up Compartment Doors
  • Over 200 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section Extension & PRL-14 14’ Roof & 10’ Folding)
  • Body: Modified PA11 Red 30/40 Low RGT, Elect Ladder Rack

ADDITIONAL EQUIPMENT:

  • Bumper: Urban Interface 10” Height Steel Bumper with Steel Skid Plate Under Side

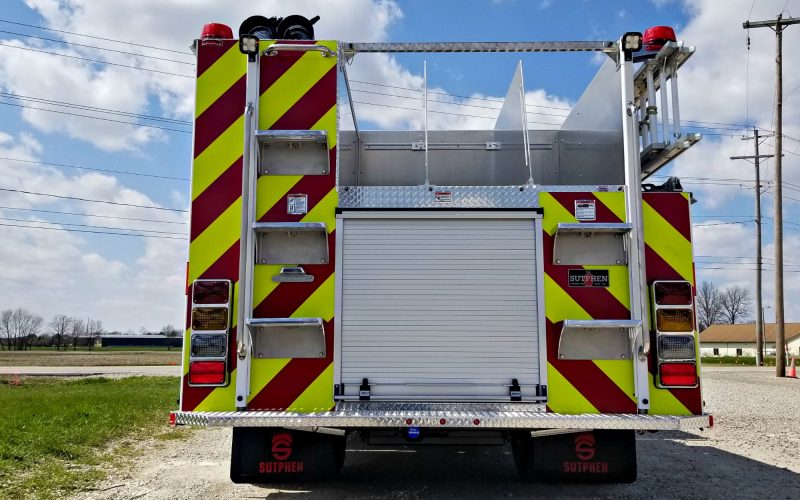

  • Flip Up Tailboard
  • EZ-Trac All Wheel Drive System
  • 17 Degree Angle of Approach
  • 15 Degree Angle of Departure
  • 2500 Watt Super Inverter
  • Booster Reel with 200’ of 1” Hose, Nozzle and Mount
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom IV 12 Module 72” LED Lightbar
  • Whelen L31 LED Beacon
  • FireTech WL-2000 LED
  • FR Spectra 12V Tele LED
