Delivery Date:
05/01/2020
Department Name:
Chanute Fire Department
Department City / State:
Chanute, KS

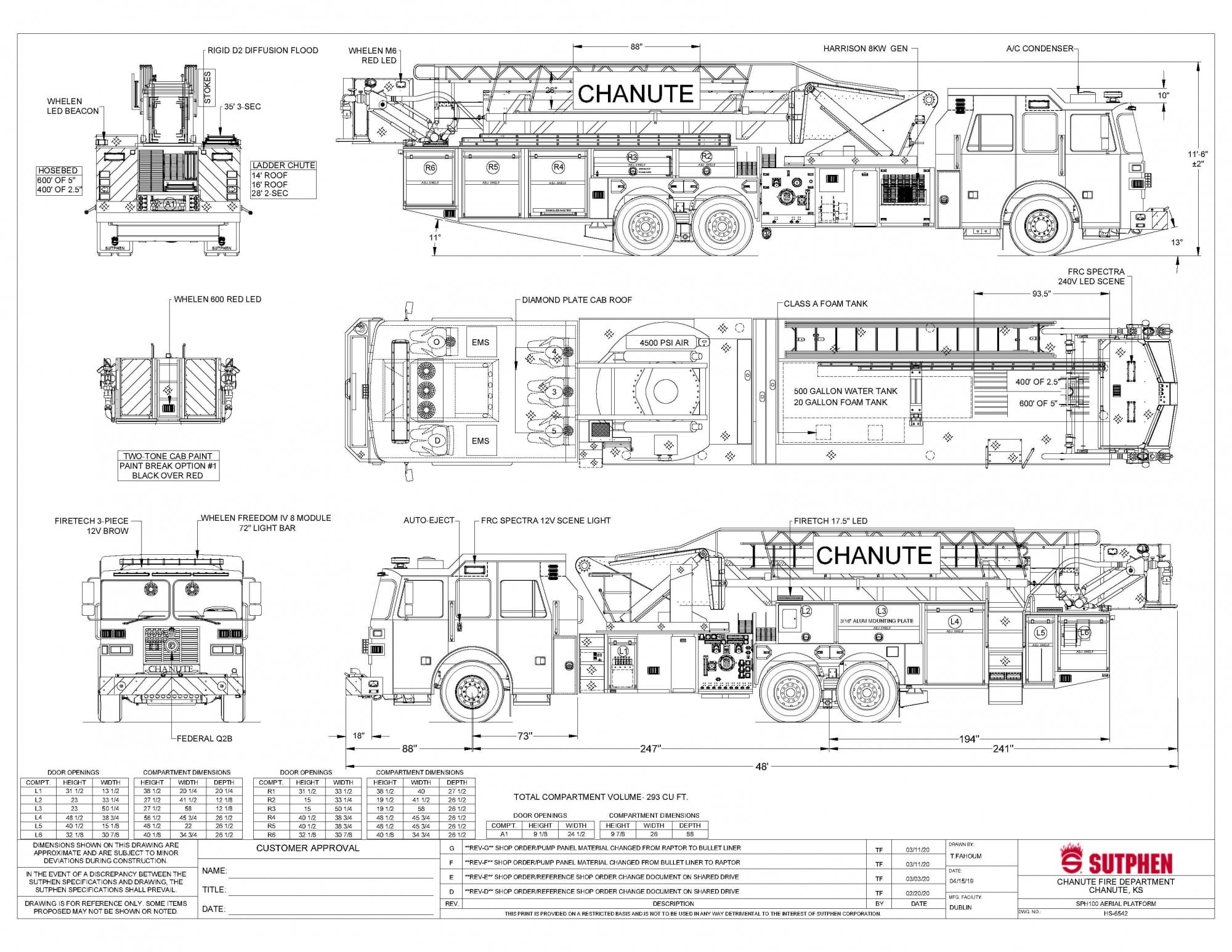

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • Crosslay: (1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” Swivel
  • 500-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam system: FoamPro 2001

BODY:                  Sutphen

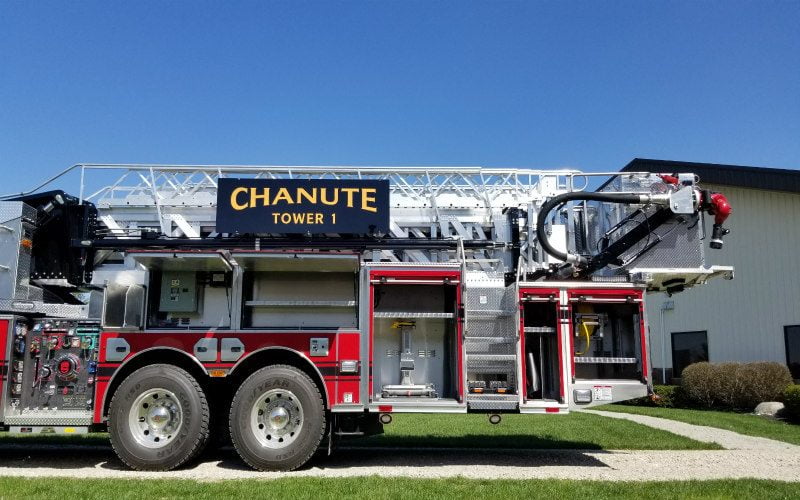

  • ROM Roll-Up Compartment Doors
  • 293 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-28 28’ 2-Section & REL-35 35’ 3-Section & 14’ Roof & 16’ Roof & 10’ Attic)
  • Body: SPH-7

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel
  • Federal Q2B Siren, Grille Mount
  • Harrison 8KW Generator
  • 7 Bottle Compartments
  • Firetech 12V Brow Light
  • FRC Spectra Scene Lights
  • Whelen Freedom IV 72” Lightbar
  • Whelen M6 Red Lights
