Delivery Date:
06/13/2019
Department Name:
Love County EMS/Fire, Chickasaw Nation
Department City / State:
Thackerville, OK

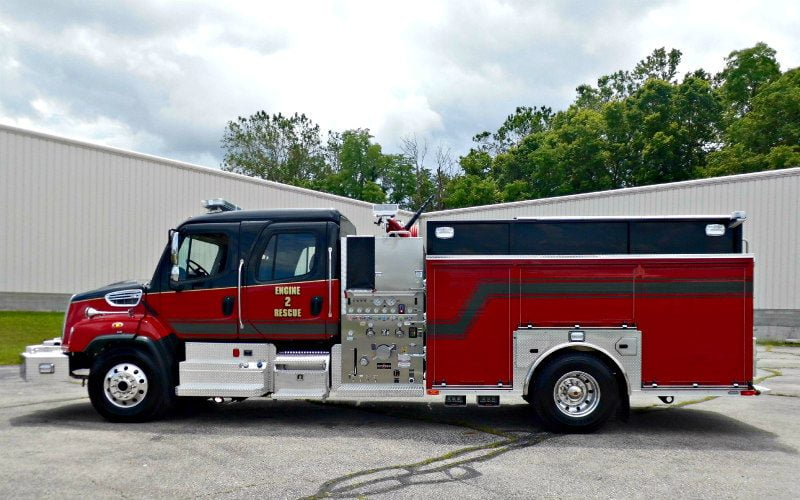

Sutphen Corporation – HS #6325

WHEEL BASE: 236”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 34’ – 3”

CHASSIS:             Freightliner M112 4-Door

  • Two-Door, Four-Person Cab
  • Front Axle and Suspension: 14,000 lbs
  • Rear Axle and Suspension: 26,000 lbs
  • Engine: Cummins, L9, 460HP
  • Alternator: For Commercial Chassis
  • Transmission: EVS 3000

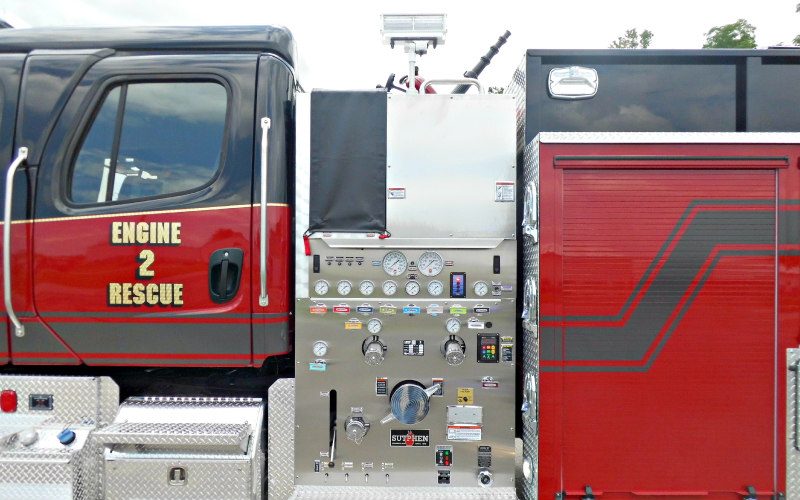

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” with 1 ½” Swivel
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 246 cu. ft. Total Compartment Space
  • Ladder Chute with Backboard Storage
  • Body C9 – 43/53

ADDITIONAL EQUIPMENT:

  • Federal Q2B Siren Recessed in Bumper
  • Code 3 V-Con 3692
  • 20” Bumper Extension
  • Whelen PFH1 LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen PFH2 12V LED Telescopic Lights
  • Whelen M9V Red LED/Scene Lights
  • (3) Triple Air Bottle Compartments
