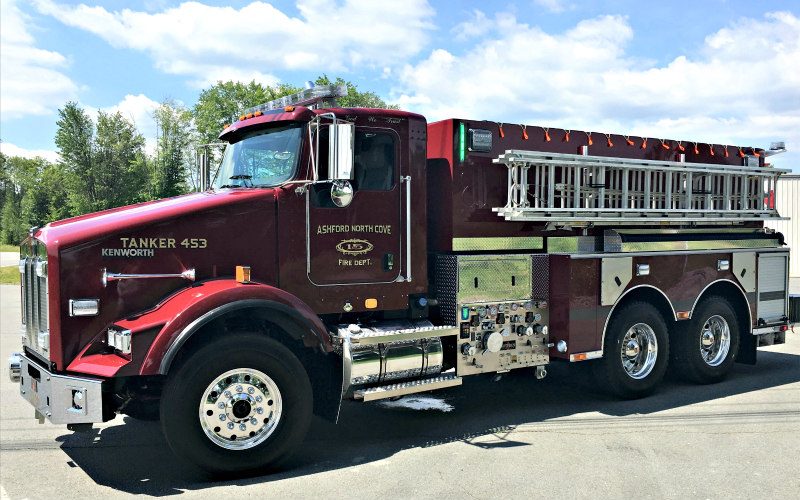

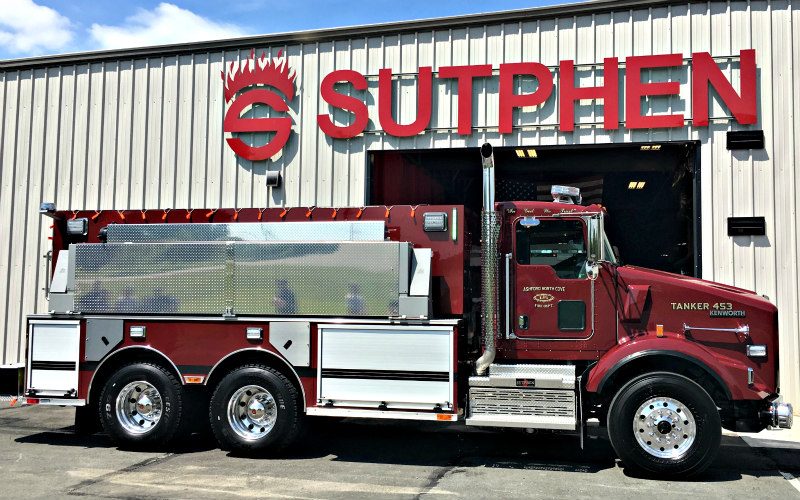

Delivery Date:
06/21/2019
Department Name:
Ashford North-Cove Fire Department
Department City / State:
Marion, NC

Sutphen Corporation – HS #6331

Dealer – Stevens Fire Equipment

WHEEL BASE: 126”

TRAVEL HEIGHT: 11’ – 4”

TRAVEL LENGTH: 29’ – 10”

CHASSIS:             Kenworth T800 – 2DR; Tandem Axle

  • Two-Door, Two-Person Cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 46,000 lbs
  • Engine: Cummins ISX 15, 500 HP
  • Alternator: For Commercial Chassis
  • Transmission: EVS 4500

PUMP:                 Hale

  • Side Kick DSD, 1000 GPM, PTO
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Left Rear
  • Crosslays: (2) 2” w/ 1 ½” Swivel at Rear Step
  • 3,000-Gallon Portable Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 60 cu. ft. Total Compartment Space

ADDITIONAL EQUIPMENT:

  • Camera System, FRC, Inview Trueview, Single Camera
  • Federal Q2B Recessed in Bumper
  • Whelen 60” Freedom Lightbar
  • Whelen 600 Series Warning Lights (12)
  • Whelen 47” Traffic Advisor
  • Triple Bottle Storage (1)
  • Newton Swivel Dump with Electric Valve
  • FRC Max Vision Gauges
