Department Name:

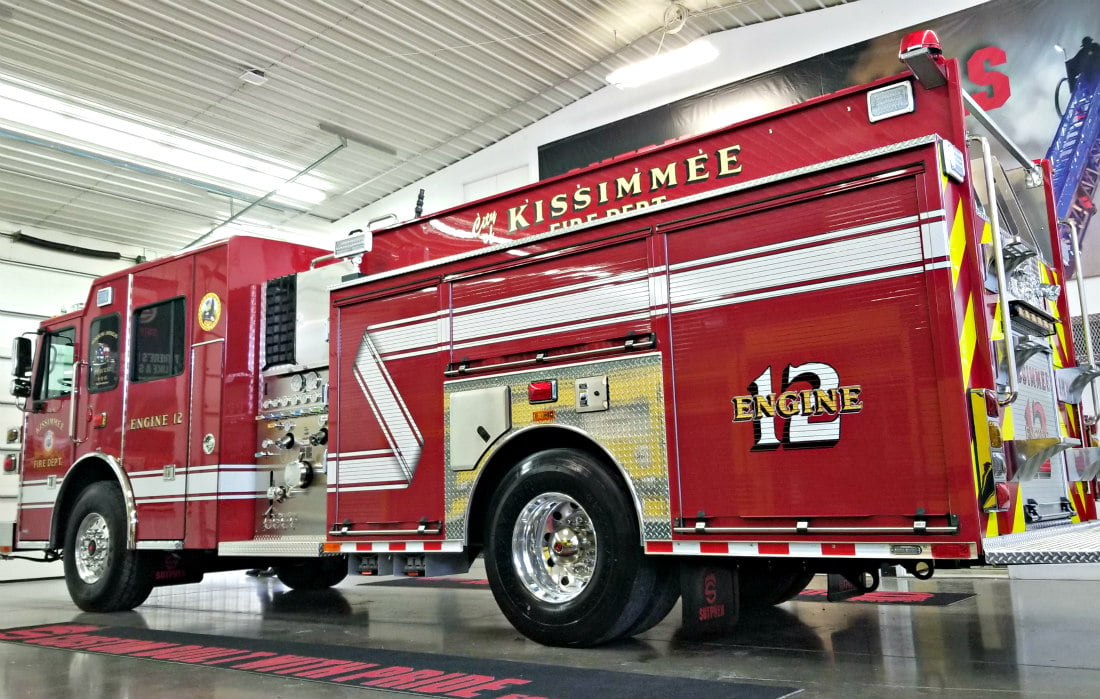

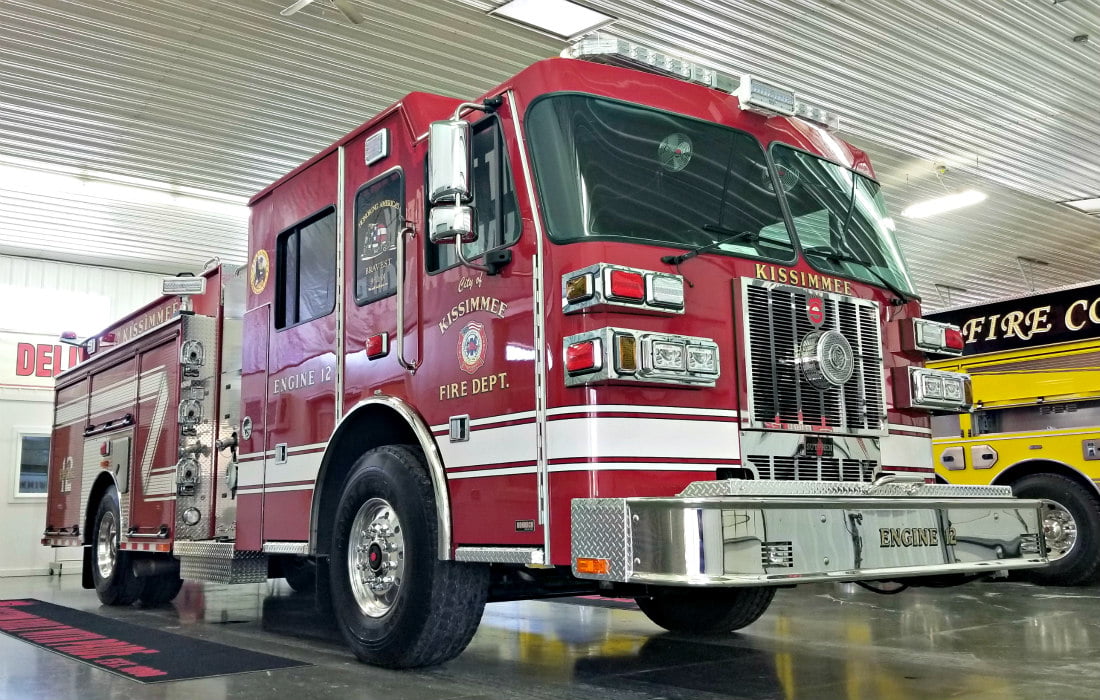

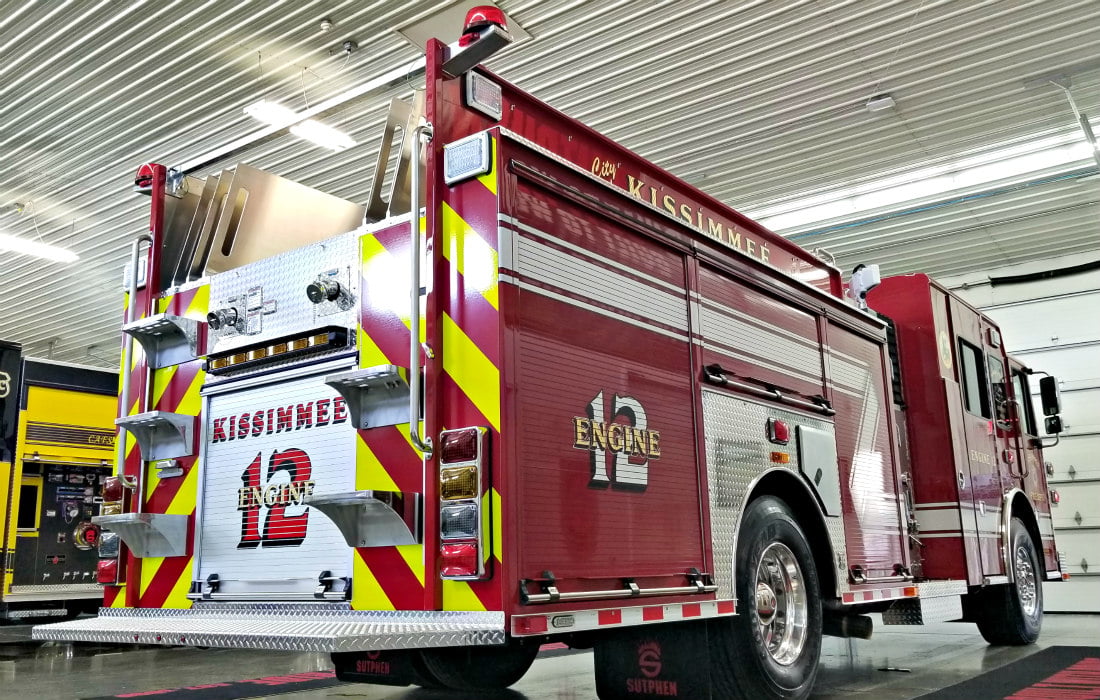

Kissimmee Fire Department
Department City / State:
Kissimmee, FL



Sutphen Corporation

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’ – 8 “

TRAVEL LENGTH: 32’ – 6”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

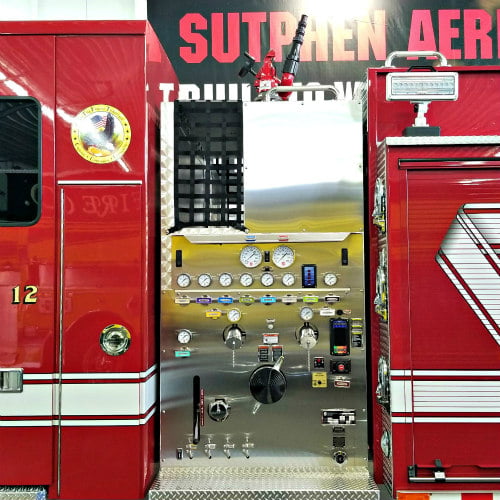

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” with 1 ½” Swivel
  • 750-Gallon Water Tank
  • Monitor: Elkhart 8297 Stinger with 8298 Mount

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Doors
  • 5” cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • Brigade 360 Camera System
  • Federal Q2B Siren
  • FRC Spectra 12V LED Brow Light
  • Traffic Advisor Whelen LED, TAL65, 36”
  • Whelen Freedom IV LED Lightbar
  • 18” Bumper Extension
  • 22K Watt, Honada EU2200I
