Delivery Date:
08/14/2019
Department Name:
Mayfield Heights Fire Department
Department City / State:
Mayfield Heights, OH

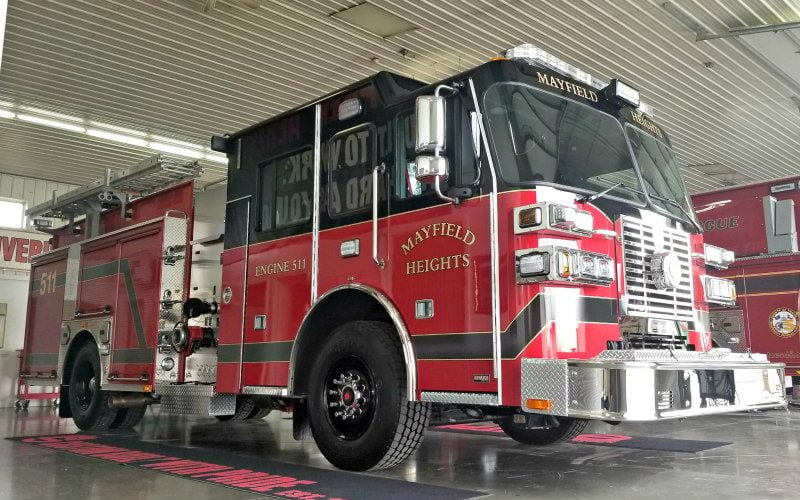

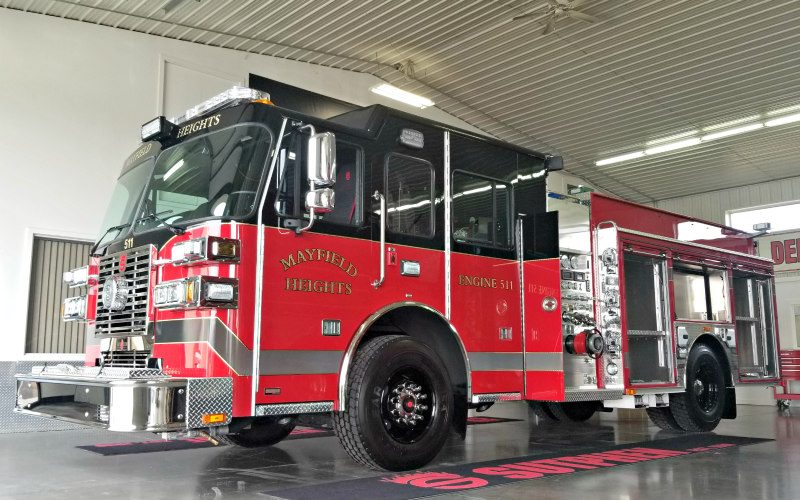

Sutphen Corporation – HS #6361

Dealer – Herb Fire Equipment

WHEEL BASE: 196”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 32’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

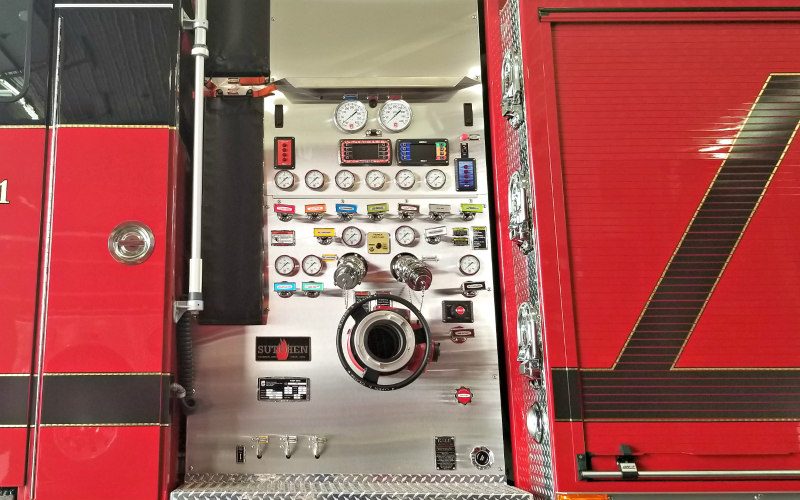

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” Crosslay & (2) 2” Speedlays w/ 1 ½” Swivel & Poly Lift-Out Tray
  • 750-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Smart Foam w/ ITL-4 Foam Level Gauge

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 262 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Compliment (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • FRC Inview, Trueview, Single Camera
  • Federal Q2B Siren, Grille Mount
  • FRC Spectra LED Brow Light
  • FRC Spectra LED Tele Light
  • Whelen Freedom LED Lightbar w/ Opticom (12)
  • Whelen M9 LED Scene Lights

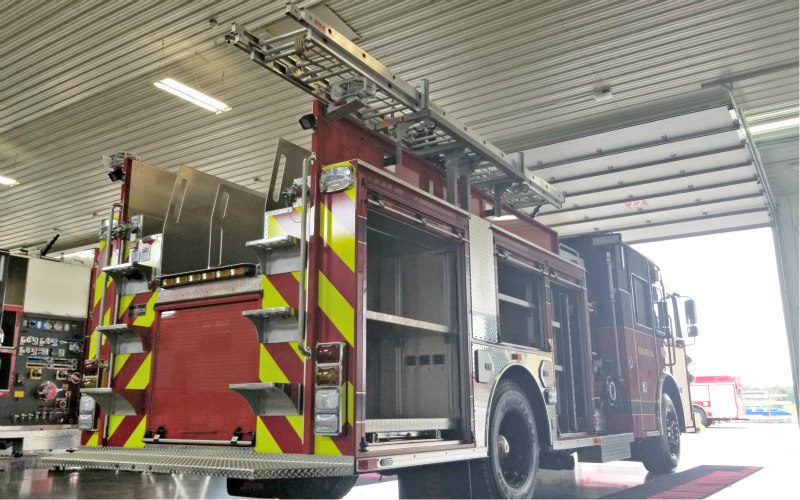

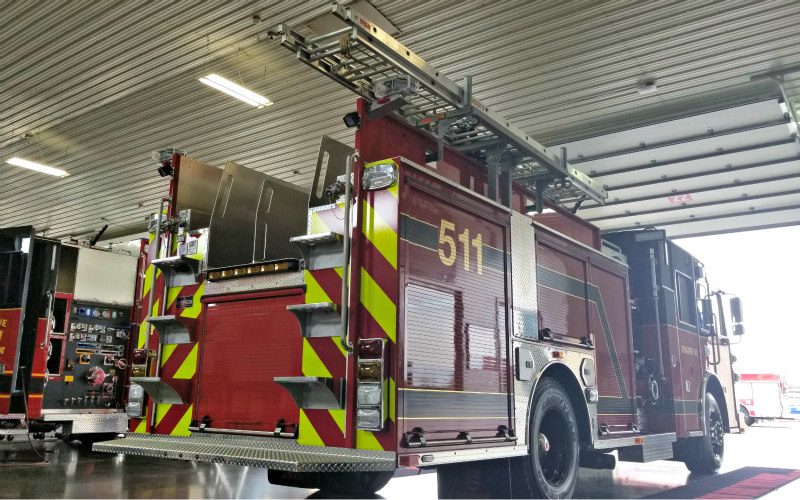

  • Ziamatic Hydraulic Ladder Rack
