Delivery Date:
01/09/2019
Department Name:
Iona McGregor Fire Department
Department City / State:
Fort Myers, FL

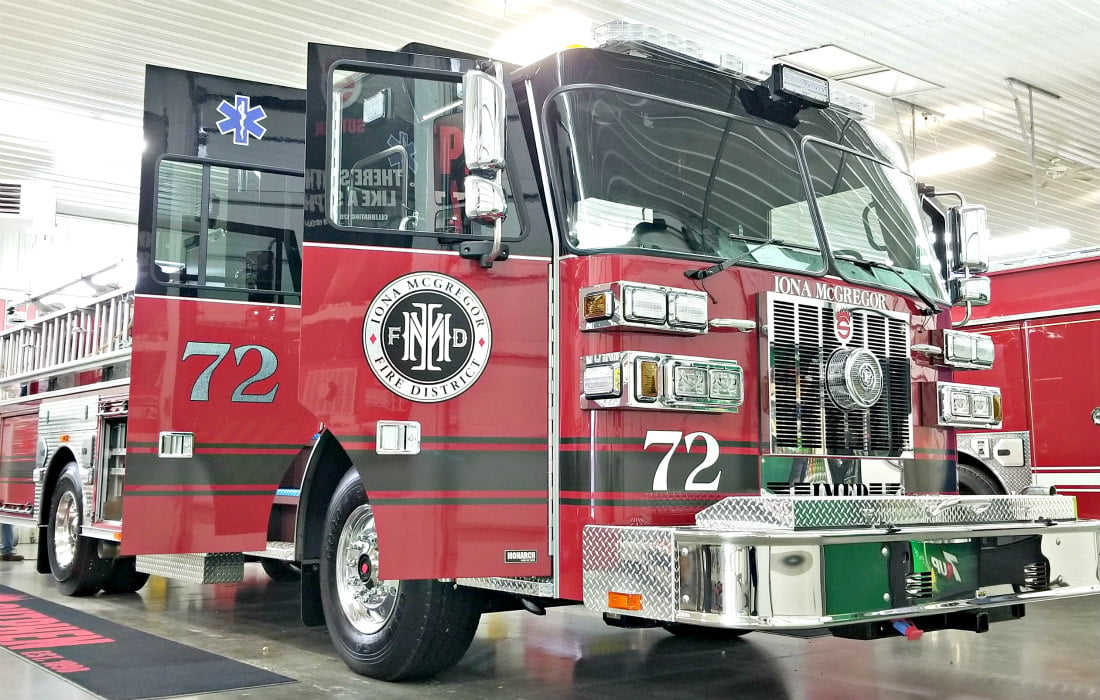

Sutphen Corporation – HS #6232

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 191”

TRAVEL HEIGHT: 10’-1”

TRAVEL LENGTH: 32’-7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

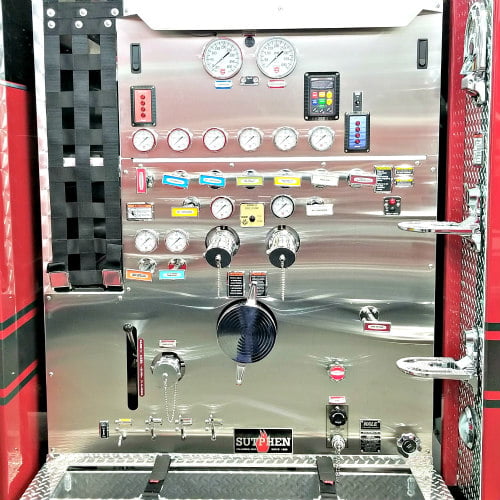

PUMP:                 Hale

  • QMAX-1500
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (2) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” with 1 ½” Swivel and Poly Lift-out Tray
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System

Body:                   Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 228 cu. ft. Total Compartment Space
  • Duo-Safety PEL-24 (24’ 2-Section & 775-DR-14 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • Ziamatic Quic-Lift Electric Ladder Rack
  • FRC Spectra 12V LED Brow
  • Whelen LED Lightbar
  • Federal Q2B
  • 24” Bumper Extension
  • FRC Spectra Tele-Lights
