More Recent Deliveries

Department Name:
Penn Township Fire Department
Department City / State:
Mishawaka, IN



Sutphen Corporation

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’-8”

TRAVEL LENGTH: 33’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 400 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

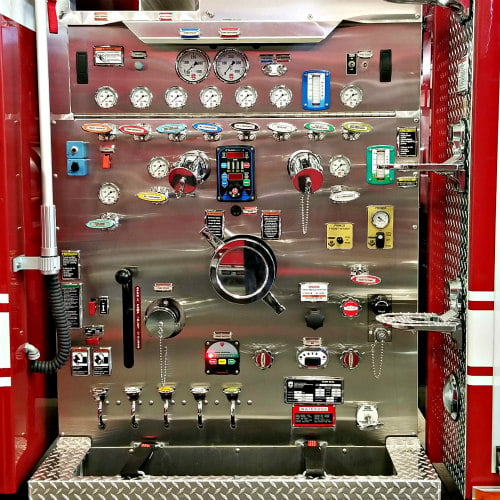

PUMP:                 Waterous

  • CSU-1500
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 4” Flange for LDH Straight, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” with 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System

Body:                   Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 233 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14, 14’ Roof & 10‘ Folding)
  • Ladder Chute

OPTIONAL EQUIPMENT:

  • Command Light CL611A, 600KW Light Tower
  • FRC Spectra 12V LED Brow
  • Whelen Freedom IV LED Lightbar
  • Federal Q2B
  • 24” Bumper Extension
  • Whelen PFP2 12 LED Telescope
