More Recent Deliveries

Delivery Date:
01/16/2019
Department Name:
Sheffield Village Fire Department
Department City / State:
Sheffield Village, OH

Sutphen Corporation – HS #6308

Dealer – Herb Fire Equipment

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

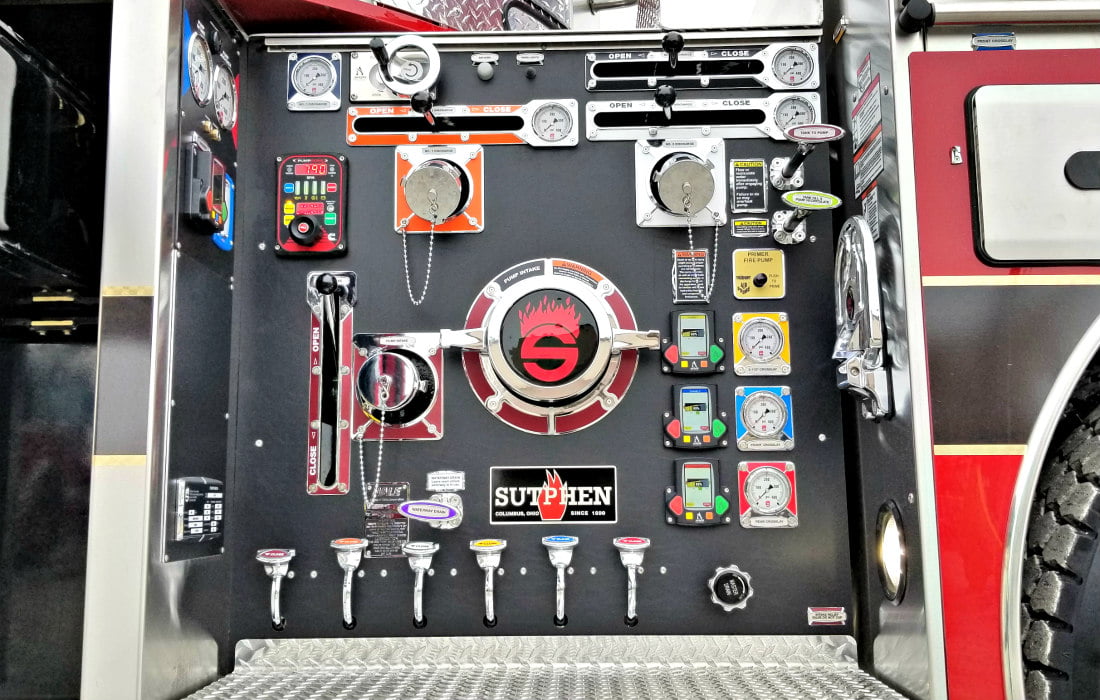

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right
  • Crosslays: (1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslay with 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Door
  • 293 cu. ft. of Total Compartment Space
  • Alco-Lite 115’ (14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ Folding)
  • Left 56” High/ Right 56” High

OPTIONAL EQUIPMENT:

  • 12” Bumper Extension
  • Scorpion Finished Entire Front Bumper
  • Federal Q2B Siren
  • Pike Pole Storage Tubes (6)
  • FRC Seon 360 Camera
  • 8KW Onan Generator
  • Roto Ray Warning Light
  • Whelen Rota-Beam LED Lightbar
  • FRC Spectra 12V LED Brow
  • FRC ACT 2-Station Intercom System

MONITOR

  • Drive Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Drive Side Nozzle: Akron 2499 & 3488
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488
