Delivery Date:
06/18/2020
Department Name:
Independence Township Fire Department
Department City / State:
Clarkston, MI

Sutphen Corporation – HS #6569-70

Dealer – Apollo Fire Equipment Company

WHEELBASE: 199”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 33’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab

  • Four-Door, Four-Person Cab
  • 10” Double Domex Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • FoamPro 2001

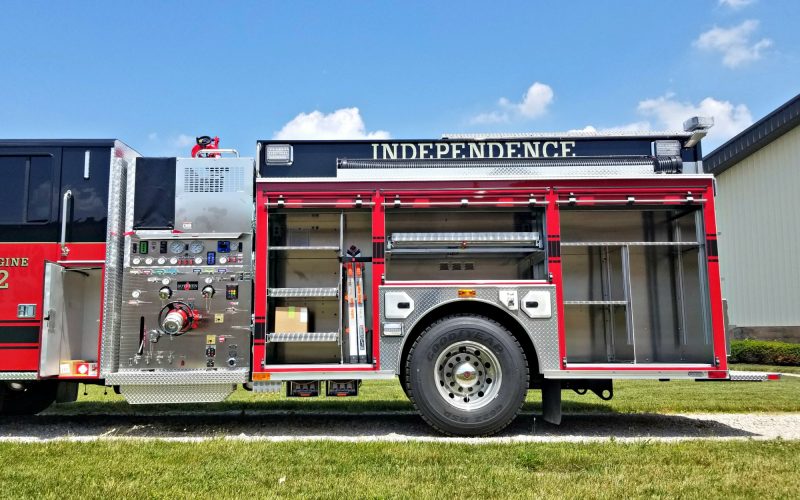

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 3 cu. ft. Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section & 14’ Roof & 10’ Folding)
  • Enclosed ladder chute
  • Body: S2 – Alum 43/53

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel
  • Federal Q2B Siren, Grille Mount
  • 4 Bottle Compartments
  • FRC, Inview Trueview Camera System
  • Whelen Spectra LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen 900 LED Scene Lights
  • Whelen 600 LED Red Lights
  • Whelen Ion – T LED Red Lights
  • Whelen M9V2 LED Lights
