Delivery Date:
03/15/2021
Department Name:
Hebron Volunteer Fire Department
Department City / State:
Hebron, IN

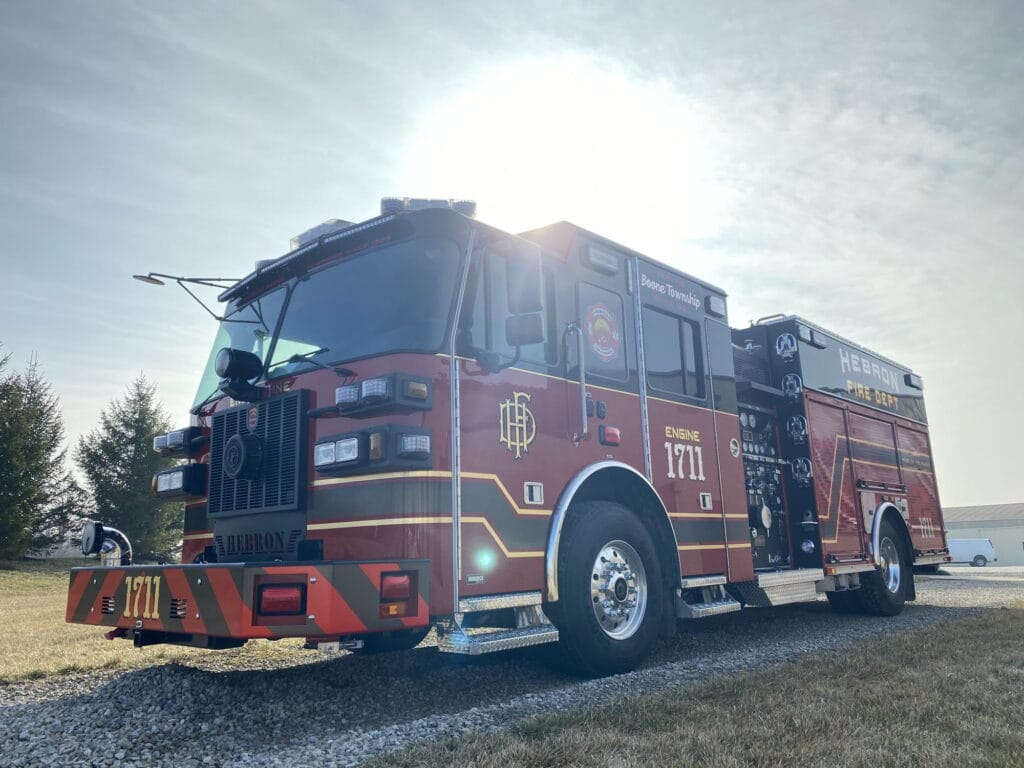

Sutphen Corporation – HS #6736

Dealer – Herb Fire

WHEELBASE: 204”

TRAVEL HEIGHT: 10’ – 6”

TRAVEL LENGTH: 33’-8”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof

  • Four-Door, Four-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Suspension 20,000 lbs.
  • Rear suspension 27,000lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

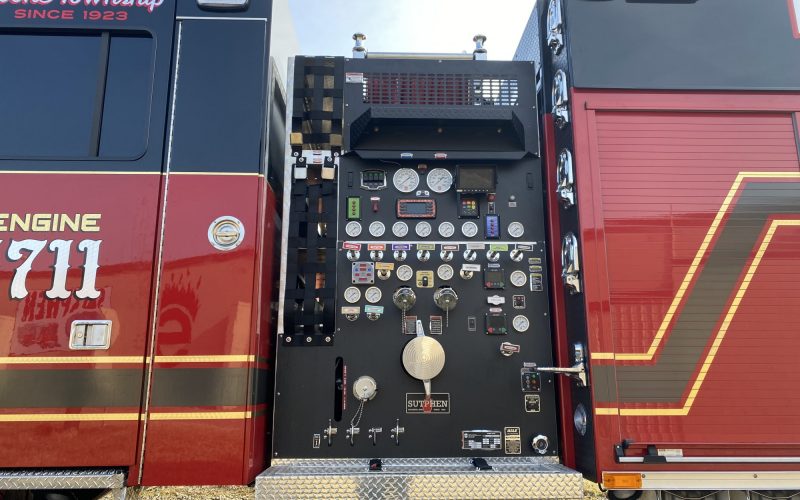

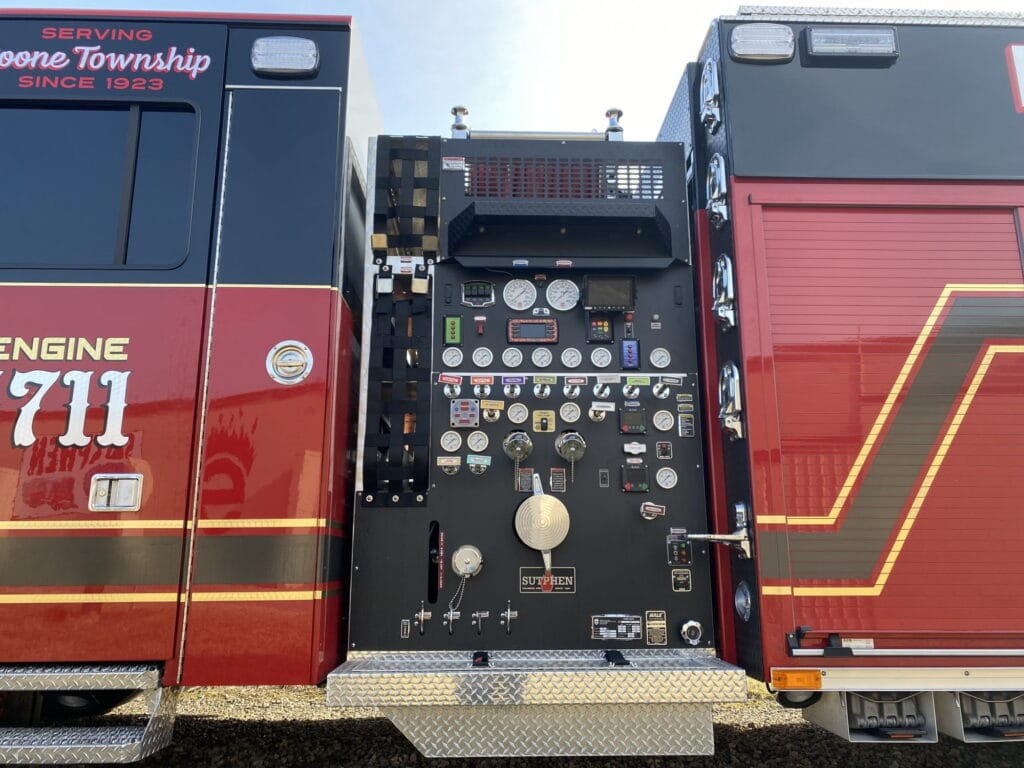

PUMP:                  Hale

  • XS QMAX-2,000 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Left of Main Hosebed, (1) 2 ½” Front Right of Main Hosebed, (1) 1 ½” Front Bumper Discharge with 2” Plumbing, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” with swivels
  • Speedlays: (2) 2” with swivels
  • 1000-Gallon Water Tank
  • 30-Gallon Foam Tank

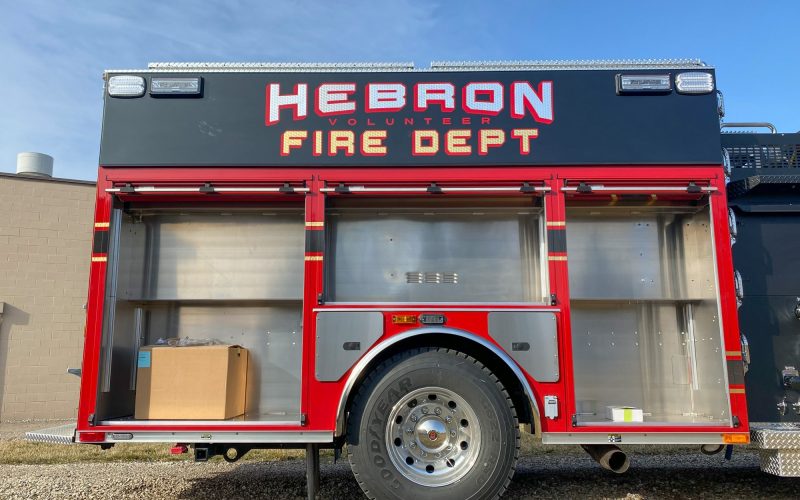

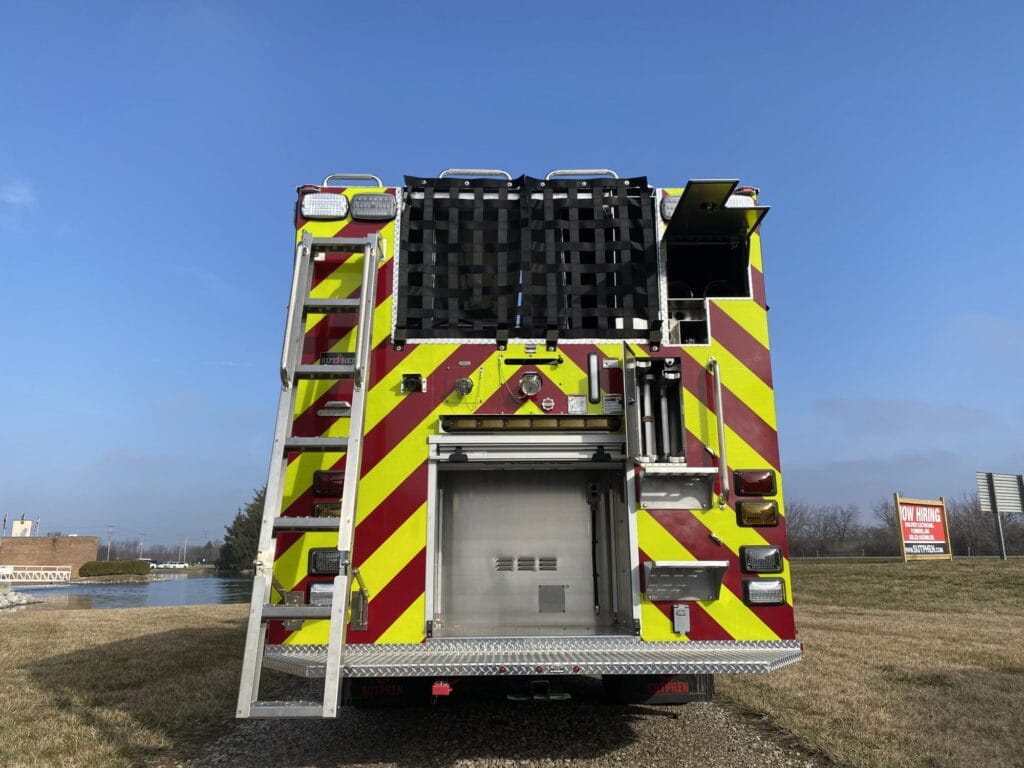

BODY:                   Sutphen

  • Aluminum 43/53
  • ROM Roll-Up Compartment Doors Painted
  • 349 cu. ft. Total Compartment Space
  • Body: Custom Pumper S6 Body

ADDITIONAL EQUIPMENT:

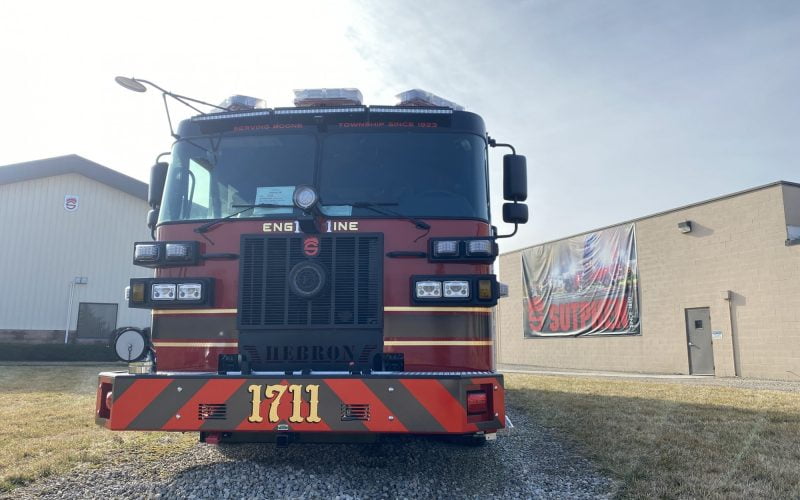

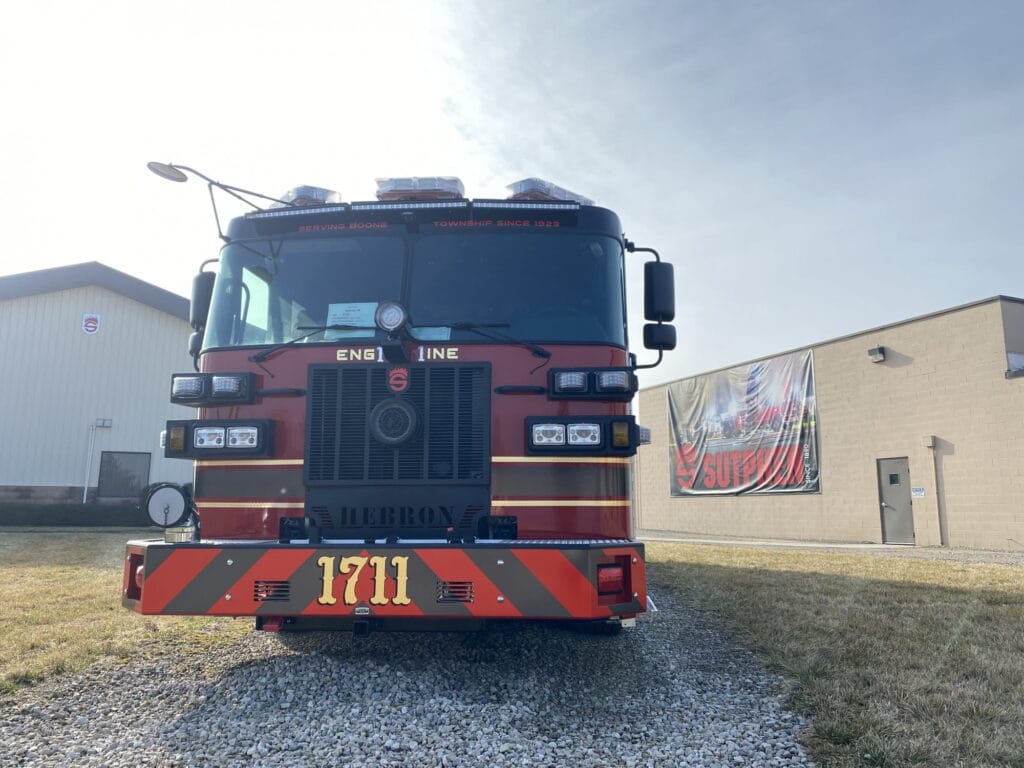

  • 24” Formed Steel Channel Bumper, Painted
  • Federal Q2B Siren, Grille Mount
  • Firetech 3-Piece 72” Brow
  • Whelen Freedom IV 21” Mini Lightbar
  • Mars Light
  • Whelen 600 Red LED
  • Smartpower 6KW Generator
  • Command Light
