Delivery Date:
03/25/2021
Department Name:
La Porte Fire Department
Department City / State:
La Porte, TX

Sutphen Corporation – HS #6750

Dealer – Texas Fire Apparatus

WHEELBASE: 185”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 31′ – 8”

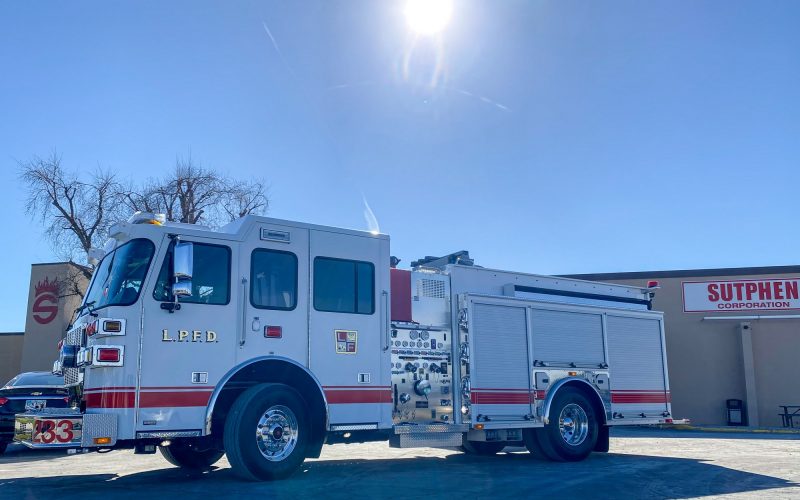

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62”cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 18,000 lbs.
  • Rear Axle and Suspension: 24,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: C.E. Niehoff 360 AMP
  • Transmission: Allison Gen 5, EVS3000

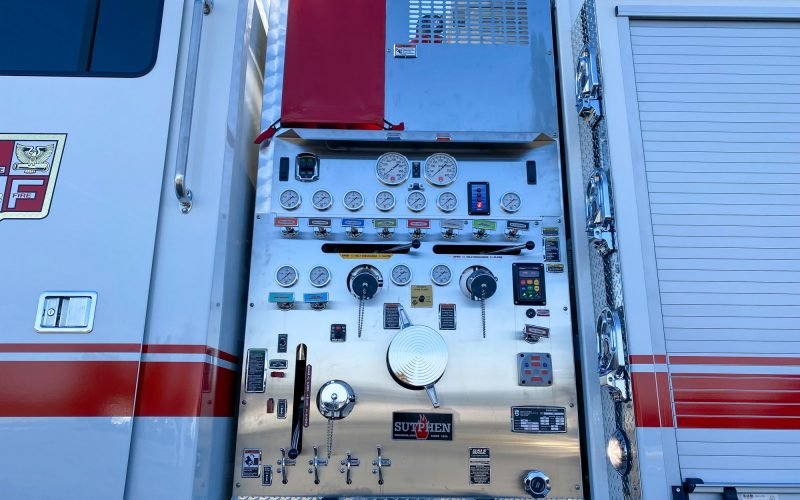

PUMP:                  Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 1 ½” & (1) 2 ½” w/ Swivels
  • 750-Gallon Water Tank

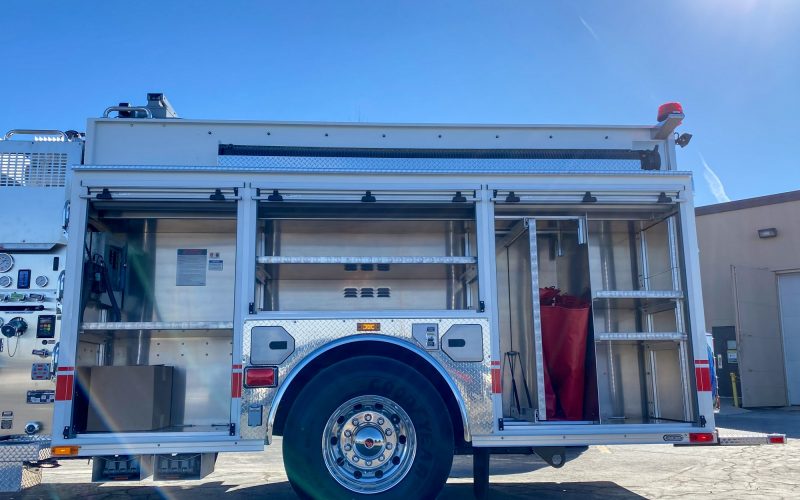

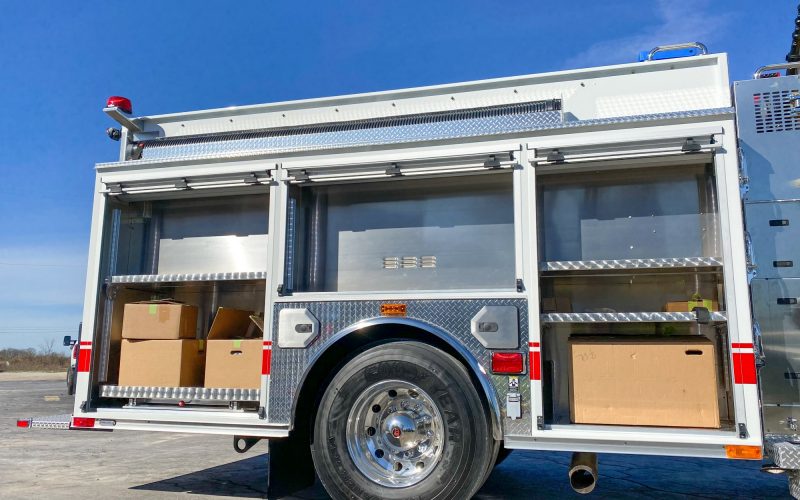

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • Over 230 cu. ft. Total Compartment Space
  • Ladder Chute w/ Backboard Storage
  • Body: S2 – Alum 43/53 Lad Chute

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Safety Vision SV-CLCD0-70

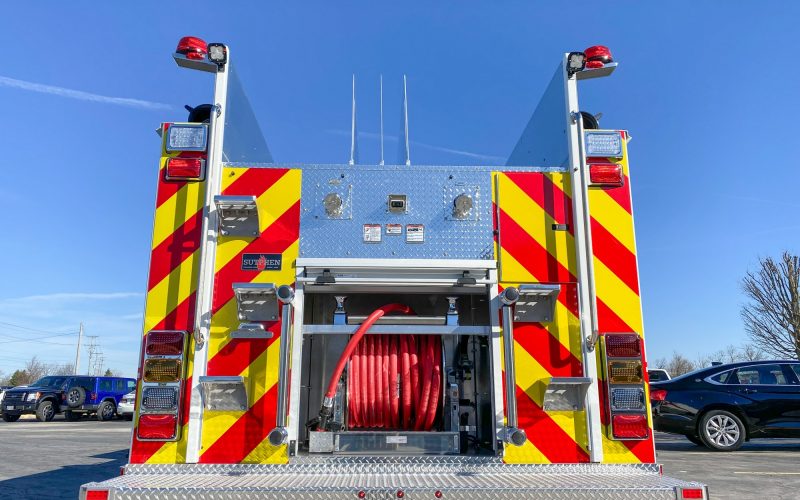

  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power 10KW
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen L31 Beacons
  • FR Spectra 12V LED Brow Lights
  • FR Spectra 12V LED Scene Light
  • Command Light KL408A-W1
  • FireTech Work Lights
