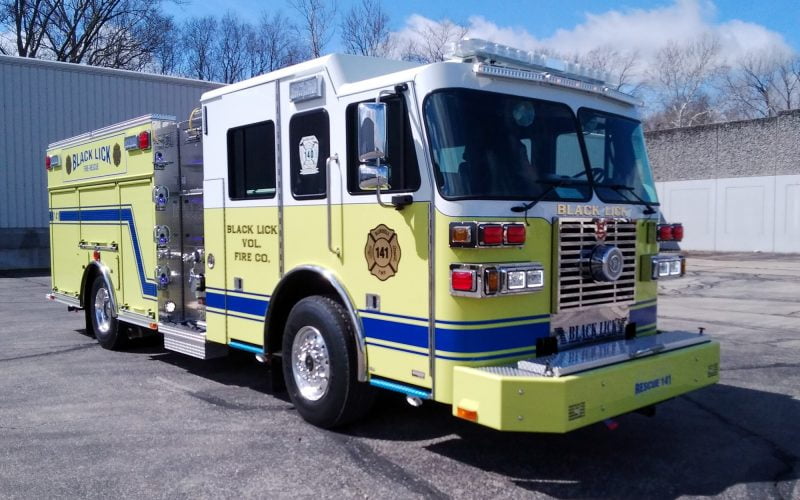

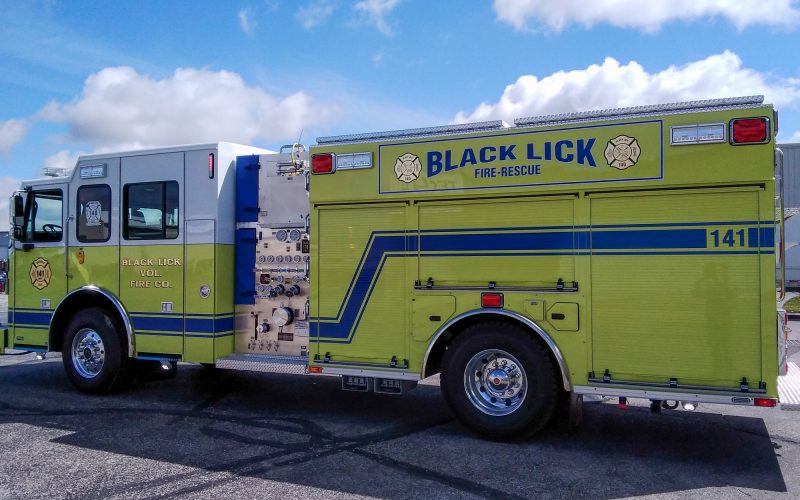

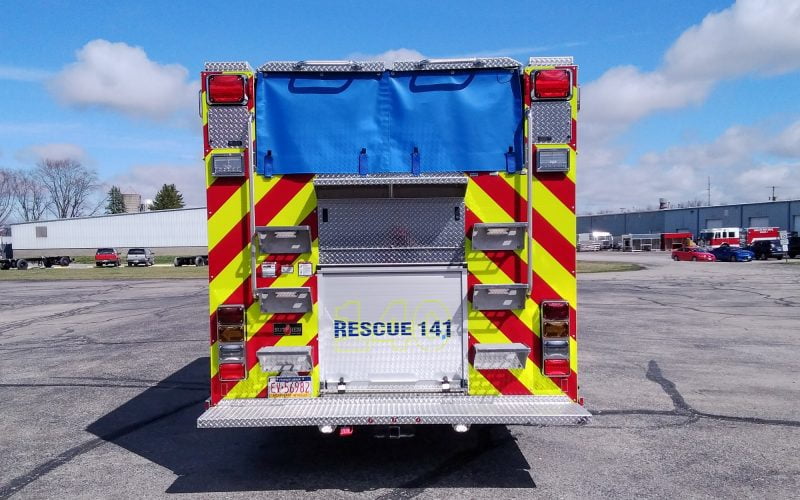

Delivery Date:
03/15/2021
Department Name:
Black Lick Volunteer Fire Department
Department City / State:
Black Lick, PA

Sutphen Corporation – HS #6776

Dealer – F.A.S.T. of the Allegheny Mountains

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’-2”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof

  • Four-Door, Six-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Suspension 20,000 lbs.
  • Rear suspension 27,000lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • XS QMAX-1,500 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” w/ 4” Outlet Right, (1) 2 ½” Right, (1) 2 ½” Front Right of Main Hosebed, (1) 2 ½” Front Bumper Discharge with 2 ½” Plumbing
  • Crosslays: (1) 2 ½” with swivels
  • Speedlays: (2) 2” with swivels
  • 1000-Gallon Water Tank

BODY:                   Sutphen

  • Aluminum 40/51
  • Amdor Roll-Up Compartment Doors Painted
  • 306 cu. ft. Total Compartment Space
  • Body: Custom Pumper G9

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper, Painted
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom LED Lightbar
  • HIVIZ 72” Brow Light
  • Whelen 600 Red LEDs
  • Harrison 8KW Generator

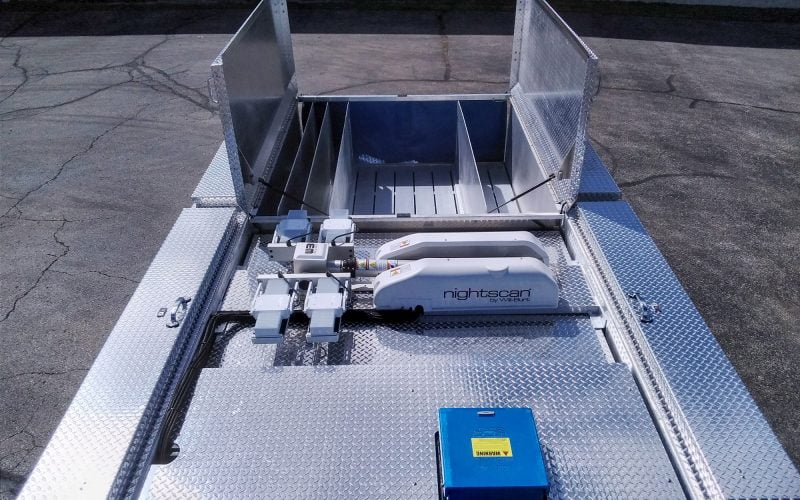

  • Will Burst NS2.3-920-4 Light Tower
  • Aluminum Hose Bed Cover
