Delivery Date:
02/02/2021
Department Name:
Wheeling Fire Department
Department City / State:
Wheeling, WV

Sutphen Corporation – HS #6706

Dealer – F.A.S.T. of the Allegheny Mountains

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a Flat Roof

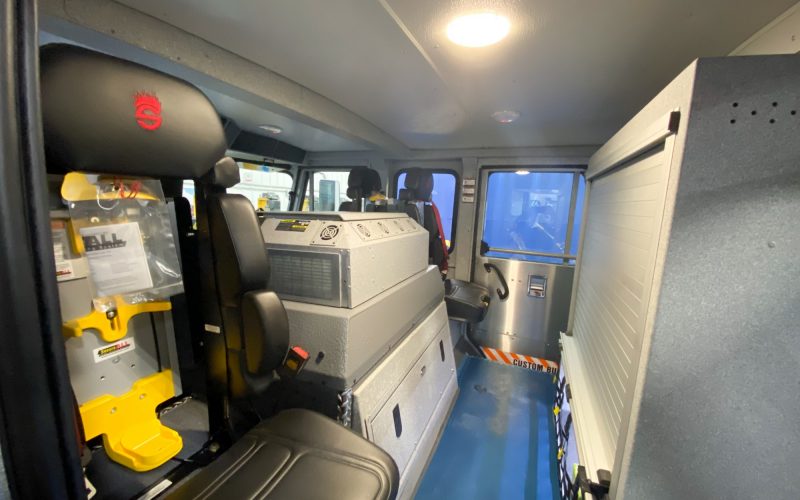

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15, 600 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS 4000

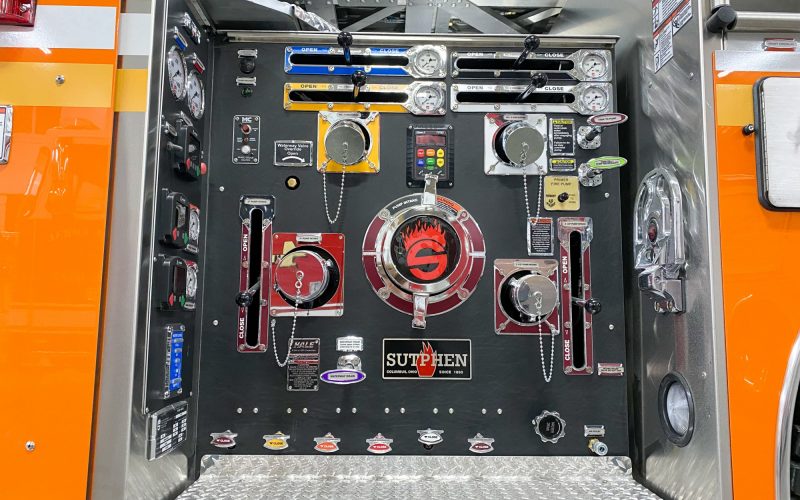

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (2) 2 ½”Valve-Piping w/ 2 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel

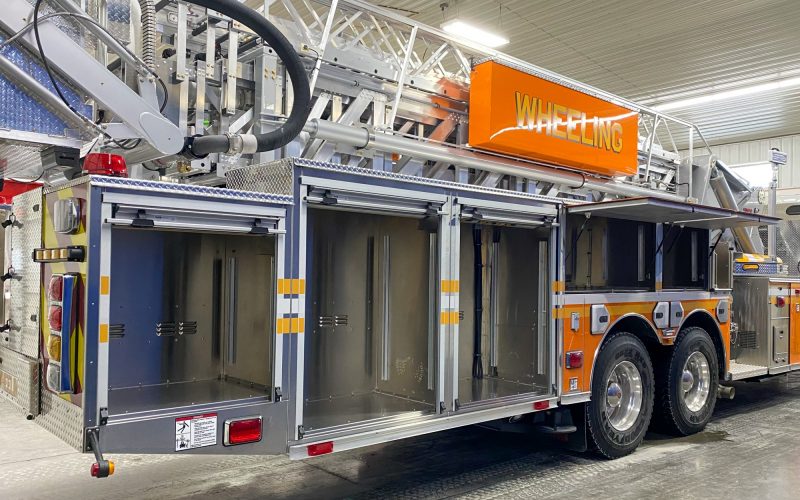

  • Mixed ROM Roll-Up and Hinged Compartment Doors
  • Over 285 cu. ft. Total Compartment Space

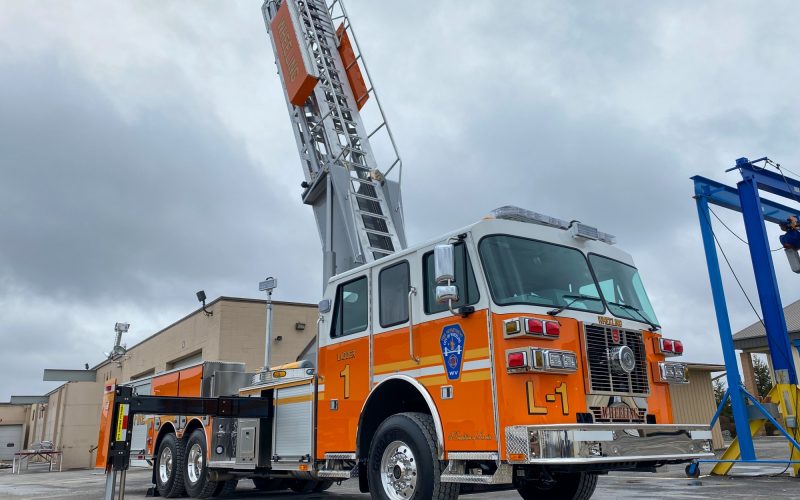

  • Alco-Lite Ladder Package (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ Folding)
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Generator: 10KW Smart Power
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • Intercom System, FRC ACT 2-Station
  • FRC Spectra Brow Light
  • FRC Spectra 240V LED Telelights
  • Opticom
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen Perimeter Enhancement Light

MONITORS:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Driver Side Nozzle: Akron 5177 Electric
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
