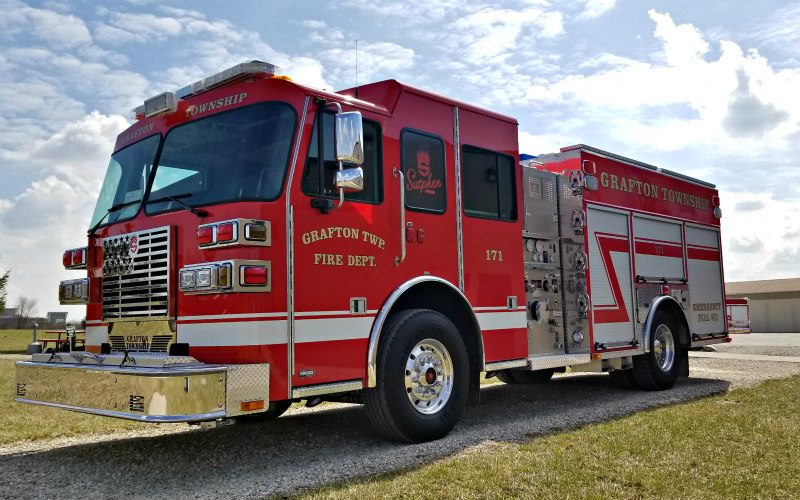

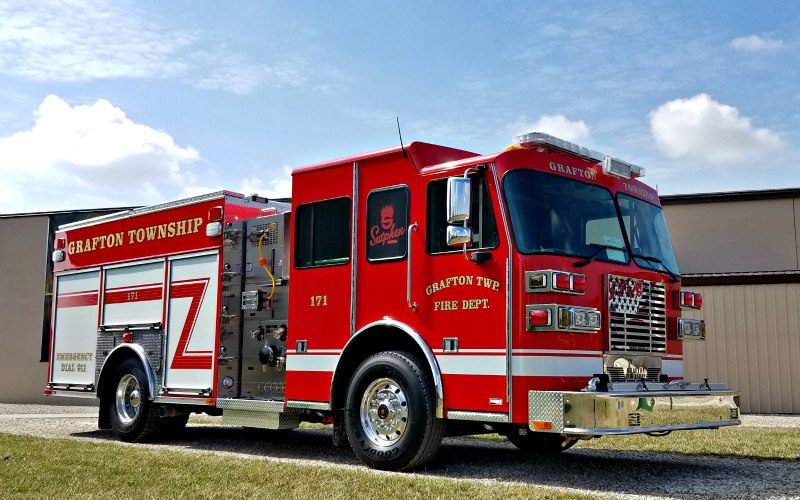

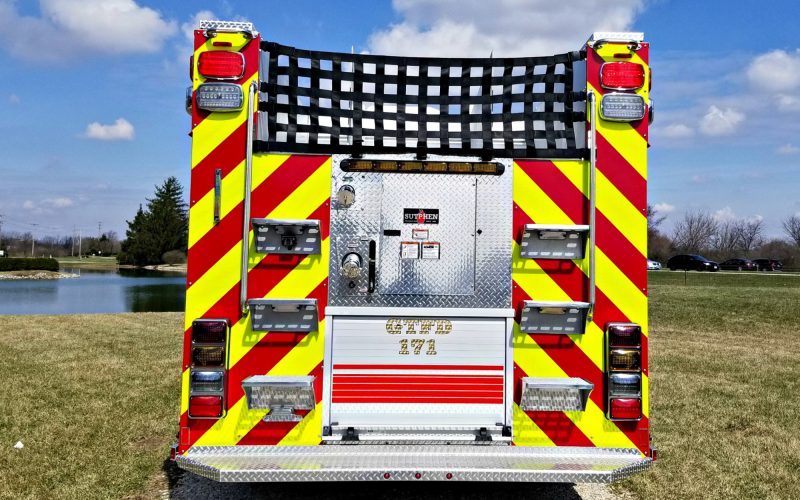

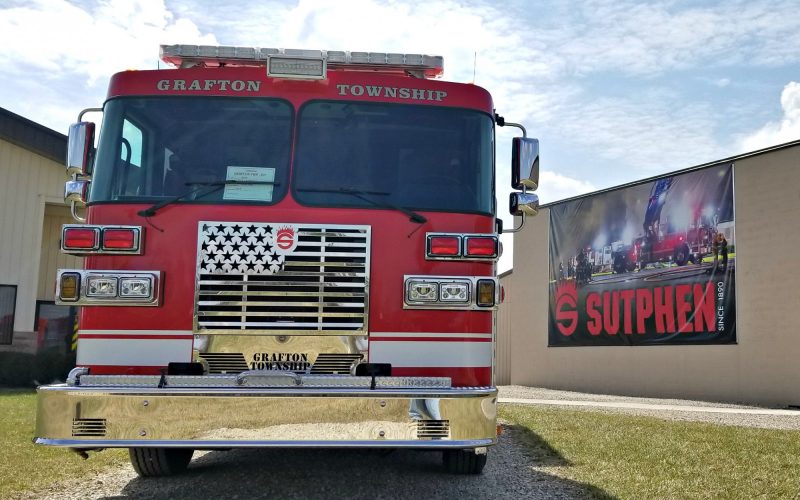

Delivery Date:
03/17/2019
Department Name:
Grafton Fire Department
Department City / State:
Grafton, OH

WHEEL BASE: 179”

TRAVEL HEIGHT: 10”

TRAVEL LENGTH: 30’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

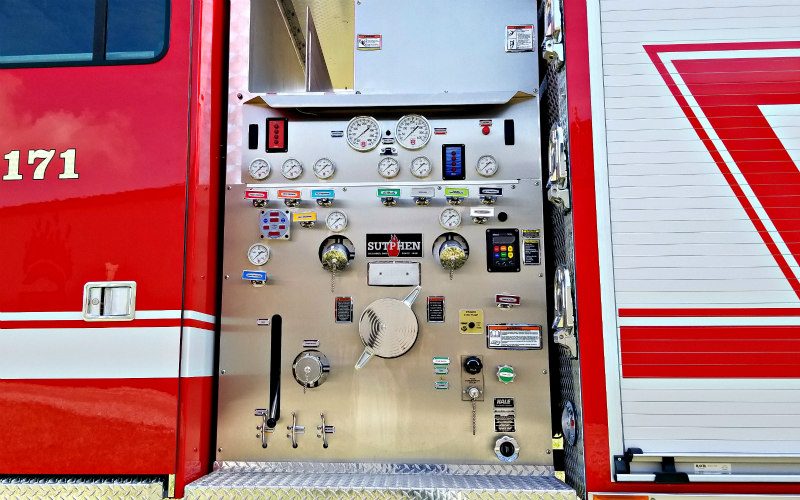

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun, (1) 2 ½” Left Rear
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Elkhart Foam Supply System with Flush (For External Eductor)

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 314 cu. ft. Total Compartment Space
  • Special Ladder Package (24’ 2-Section and 10’ Attic Duo Safety; 14’ Roof Alco-Lite)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Stainless Steel Bumper Extension, 2” Raised Lid, and Full-Width, Shallow Storage Well
  • 6KW Smart Power Generator
  • (1) Hannay Electric Cord Reel, 150’
  • Whelen LED, TAL65 36” Traffic Advisor
  • Whelen 295HFS2 Electric Siren
  • Whelen Freedom IV 72” LED Lightbar
  • FRC Camera System, Inview Trueview, Single Camera
  • (1) FRC Spectra Brow Light
  • 100-Watt Siren Speaker
  • (2) Oil Dry Hoppers, (1) Triple Bottle SCBA and (1) Single SCBA Storage Compartment
  • Will-Burt LED Light Tower, NS1.8 – 250WB
