Delivery Date:
03/17/2019
Department Name:
Oconee County Fire and Rescue
Department City / State:
Oconee County, GA

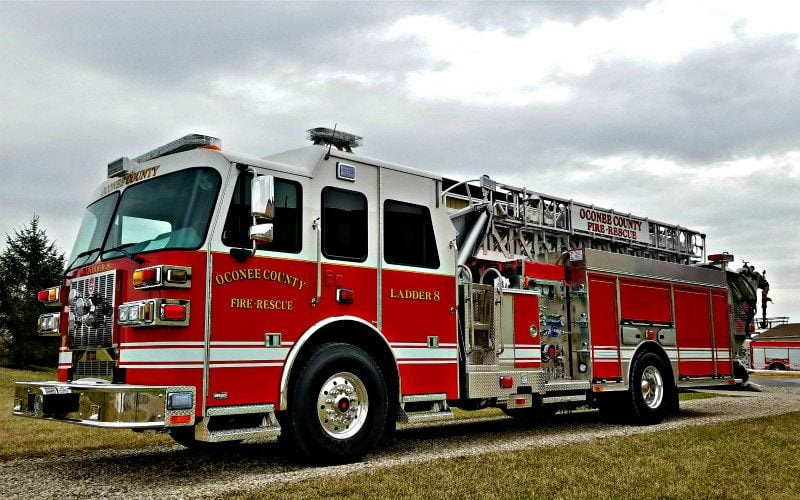

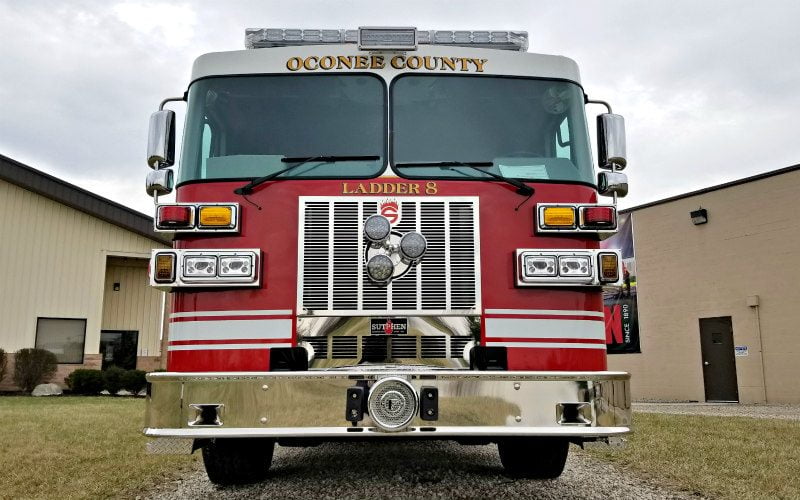

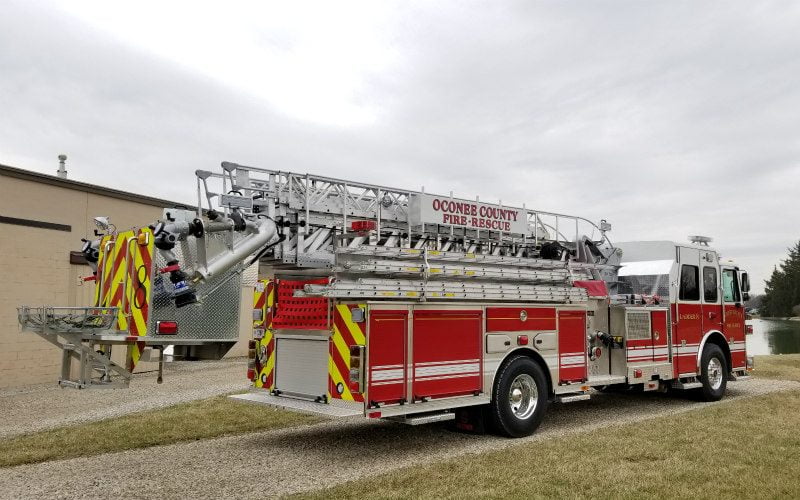

Sutphen Corporation – HS #6334

WHEEL BASE: 221”

TRAVEL HEIGHT: 10 – 9 ¼”

TRAVEL LENGTH: 42’ – 5 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

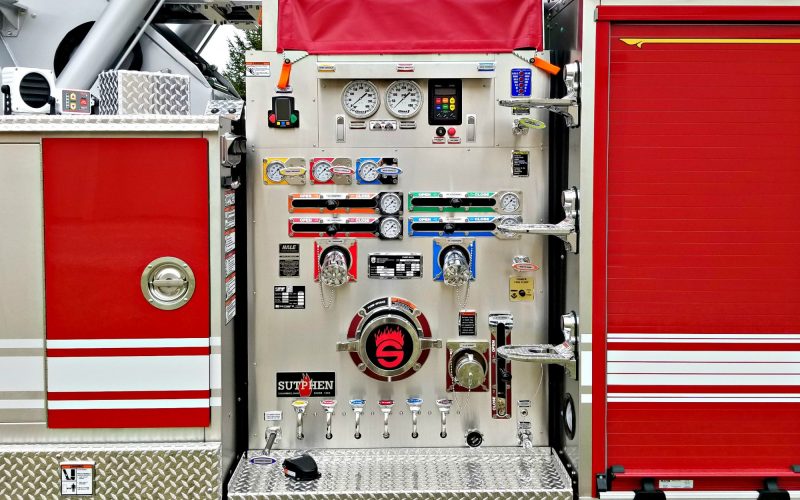

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Monitor: (2) TFT Monsoon 1,250 GPM Monitors w/ TFT Masterstream & Stacked Tips
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-Up Compartment Doors
  • Over 193 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment (85’: 16’ Roof, 24’ 2-Section, 35’ 3-Section & 10’ Folding)
  • Left High / Right Intermed / Non-Transverse

ADDITIONAL EQUIPMENT:

  • 12” Stainless Steel Bumper Extension
  • Voyager 2, Camera System
  • FRC ACT 2-Station, Intercom System
  • 6KW Smart Power Generator
  • (1) Hannay Electric Cord Reel, 150’
  • (6) Pike Pole Storage Tubes
  • Federal Q2B Siren, Bumper Mounted
  • 13’ Little Giant Ladder
  • Whelen Freedom IV 72” Lightbar
  • (2) Whelen Mini Freedom IV 21” LED Lightbar
  • (1) FRC Spectra 12V LED Brow Light
  • Roto Ray, LED Warning Light
  • Stokes Basket Mounted to Side of Boom
