Delivery Date:
03/17/2019
Department Name:
Gallatin Fire Department
Department City / State:
Gallatin, TN

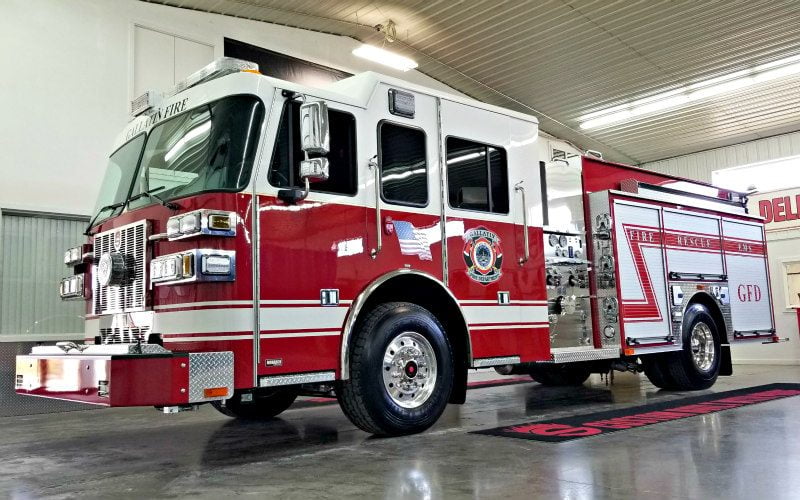

Sutphen Corporation – HS #6293

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’ – 8 “

TRAVEL LENGTH: 32’ – 6”

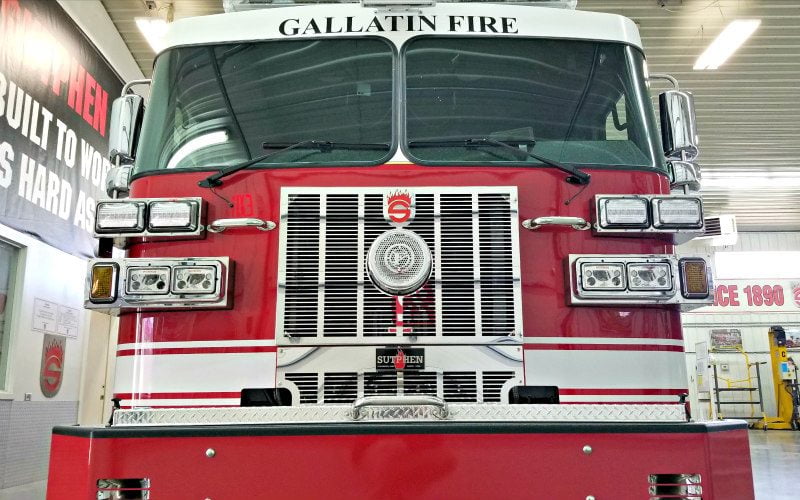

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

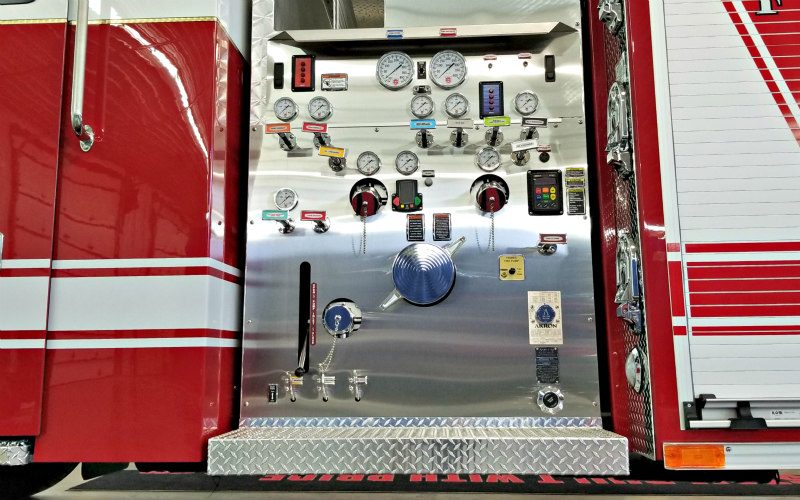

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” with 1 ½” Swivel
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank

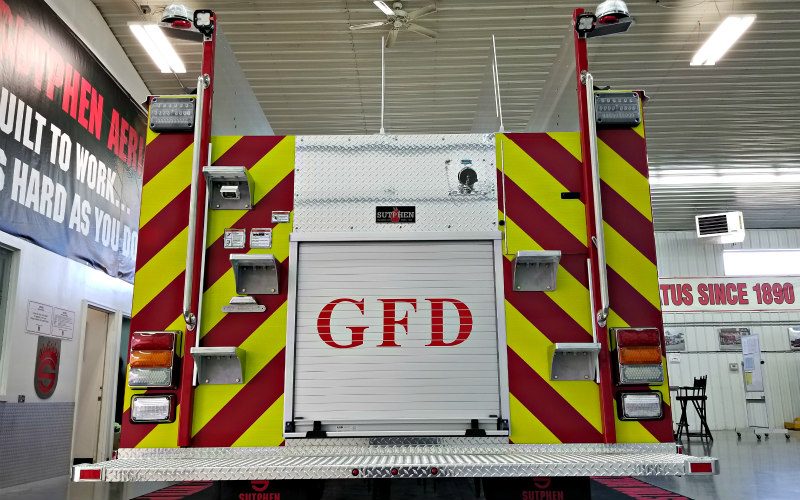

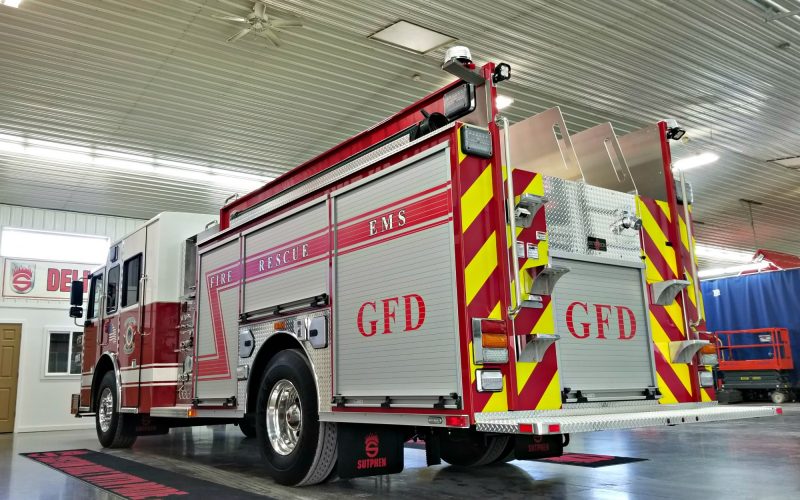

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Doors

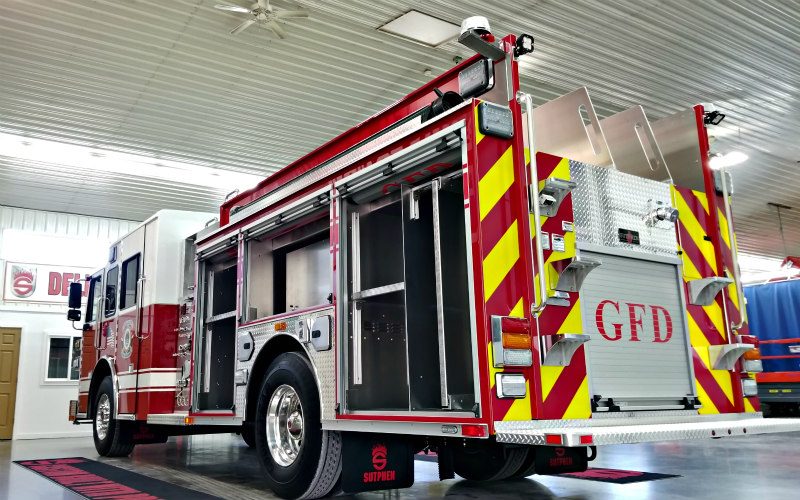

  • Over 233” cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • Safety Vision SV-CLCD0-70, Camera System
  • Federal Q2B Siren
  • 18” Formed Steel Channel Bumper Extension
  • Whelen 900 Scene Lights (3)
  • Whelen Freedom LED Lightbar
  • Whelen 295HFS2, Electric Siren
  • FR Spectra, LED, Brow 15K Lumens, 12V
