Delivery Date:
03/17/2019
Department Name:
Elkhart Fire Department
Department City / State:
Elkhart, IN

Sutphen Corporation – HS #6309

WHEEL BASE: 208”

TRAVEL HEIGHT: 9′ – 8”

TRAVEL LENGTH: 32’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

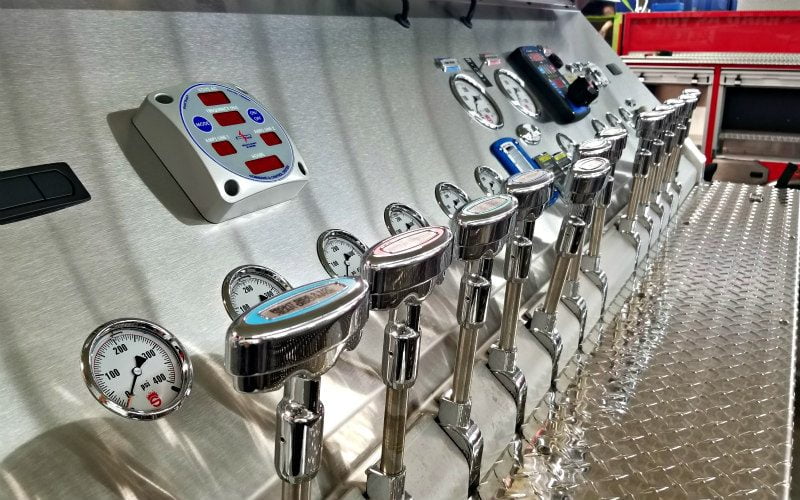

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • Monitor: Elkhart Stinger, 2.0 w/ Ground Monitor, (1) 5” Storz Connection
  • Speedlays: (2) 2” w/ 1 ½” Swivel
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 180 cu. ft. Total Compartment Space
  • Duo-Safety 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding

ADDITIONAL EQUIPMENT:

  • 18” Stainless Steel Bumper Extension, 2” Raised Lid, and Full-Width, Deep-Center Storage Well
  • 6KW Smart Power Generator
  • (1) Hannay Electric Cord Reel, 150’
  • (3) Whelen Freedom IV 21” LED Lights Bars
  • (2) Whelen M9 12 V LED Scene Lights
  • Whelen 295HFS2 Electric Siren
  • FRC Inview Trueview, Single Camera, Camera System
  • (1) FRC Spectra 12V LED Brow Lights
  • (2) FRC Spectra 12V LED Tele Lights
  • Federal Q2B Siren
